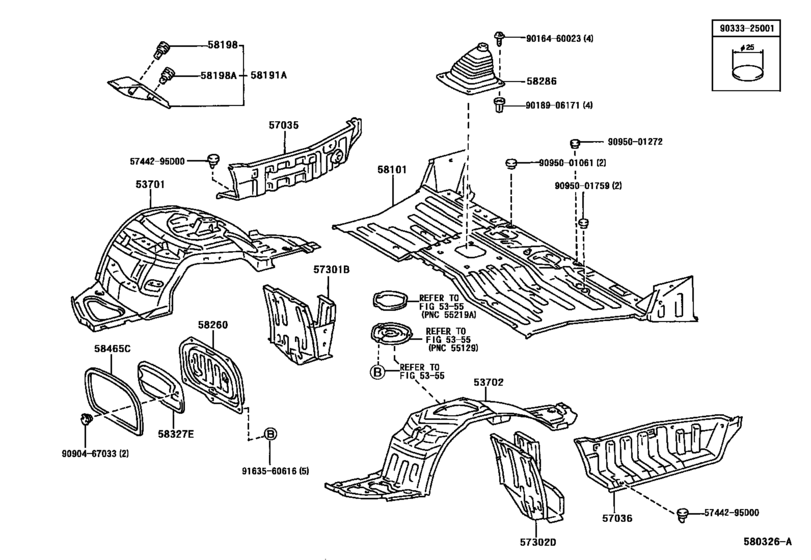

Front Floor Panel & Front Floor Member ([04.1997 - ] (9704- )) Diagram Toyota HIACE REGIUS
- Year
- 1997 - 1999
- Sales region
- Japan
- Frame
- RCH42
- grade
- STD
- body
- VAN
- ENGINE
- 1RZE
- TRANSMISSION
- MTM
- Model
- HIACE REGIUS
- From
- 06.1997
- To
- 07.1999
- No.of Doors
- 5D
- Vehicle Model
- Hiace Regius
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53701
|
53701
53701-26040 Apron Sub-Assy, Front Fender, Rh[04.1997 - 12.1998] KCH4#,LXH4#,RCH4# |
53701-26040 |
US $262.08 |
||
| replacement | |||||
|
53701
|
53701
53701-26041 Apron Sub-Assy, Front Fender, Rh[04.1997 - 12.1998] KCH4#,LXH4#,RCH4# |
53701-26041 |
US $262.08 |
||
|
53701
|
53701
53701-26041 Apron Sub-Assy, Front Fender, Rh[12.1998 -] KCH4#,LXH4#,RCH4# |
53701-26041 |
US $262.08 |
||
|
53702
|
53702
53702-26090 Apron Sub-Assy, Front Fender, Lh[04.1997 - 12.1998] RCH4# |
53702-26090 |
US $308.67 |
||
| replacement | |||||
|
53702
|
53702
53702-26091 Apron Sub-Assy, Front Fender, Lh[04.1997 - 12.1998] RCH4# |
53702-26091 |
US $308.67 |
||
|
53702
|
53702
53702-26091 Apron Sub-Assy, Front Fender, Lh[12.1998 -] RCH4# |
53702-26091 |
US $308.67 |
||
|
57035
|
57035
57035-26010 Panel Sub-Assy, Front Step, Rh[04.1997 -] KCH4#,LXH4#,RCH4# |
57035-26010 |
US $110.66 |
||
| replacement | |||||
|
57035
|
57035
57035-26020 Panel Sub-Assy, Front Step, RhFRONT STEP, RH [04.1997 -] KCH4#,LXH4#,RCH4# |
57035-26020 |
US $97.12 |
||
|
57036
|
57036
57381-26010 Panel Sub-Assy, Front Step, Lh[06.1997 -] LXH4#,RCH42..STD |
57381-26010 |
US $94.64 |
||
|
57301B
|
57301B
57301-26040 Outrigger Sub-Assy, No.1 Rh[04.1997 -] KCH4#,LXH4#,RCH4# |
57301-26040 |
US $101.34 |
||
|
57302D
|
57302D
57302-26010 Outrigger Sub-Assy, No.1 Lh[04.1997 -] KCH4#,LXH4#,RCH4# |
57302-26010 |
US $101.34 |
||
|
58101
|
58101
58099-26300 Pan Sub-Assy, Front Floor[06.1997 -] LXH43,RCH42..MTM |
58099-26300 |
US $612.98 |
||
|
58101
|
58101
58099-26360 Pan Sub-Assy, Front Floor[06.1997 - 07.1999] RCH42 ｱﾘ(ﾘﾔﾋ-ﾀ) |
58099-26360 |
US $611.52 |
||
|
58260
|
58260
58207-26050 Cover Assy, Transmission, Front[04.1997 -] KCH4#,LXH4#,RCH4# |
58207-26050 |
US $101.92 |
||
|
58286
|
58286
58280-26040 Boot, Shift & Select Lever, No.1[06.1997 -] LXH4#,RCH42..MTM |
58280-26040 |
US $104.83 |
||
|
58327E
|
58327E
58327-26030 Insulator, Transmission Service Hole Cover[04.1997 - 08.1997] KCH4#,LXH4#,RCH4# |
58327-26030 |
US $33.05 |
||
|
58327E
|
58327E
58327-26050 Insulator, Transmission Service Hole Cover[08.1997 -] KCH4#,LXH4#,RCH4# |
58327-26050 |
US $33.05 |
||
|
58465C
|
58465C
58465-26020 Packing, Transmission Service Hole Cover[04.1997 -] KCH4#,LXH4#,RCH4# |
58465-26020 |
US $16.60 |
||
|
5744295D00
|
5744295D00
57442-95D00 Plug, Step Panel Hole |
57442-95D00 |
US $6.99 |
||
|
9016460023
|
9016460023
90164-60023 New Genuine Part |
90164-60023 |
US $0.96 |
||
|
9018906171
|
9018906171
90189-06171 GROMMET SCREW |
90189-06171 |
US $1.76 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.31 |
||
|
9090467033
|
9090467033
90904-67033 Clip(For Deck Board No.1) |
90904-67033 |
US $1.28 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001272
|
9095001272
90950-01272 New Genuine Part |
90950-01272 |
US $1.75 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $1.92 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
US $1.76 |
||
