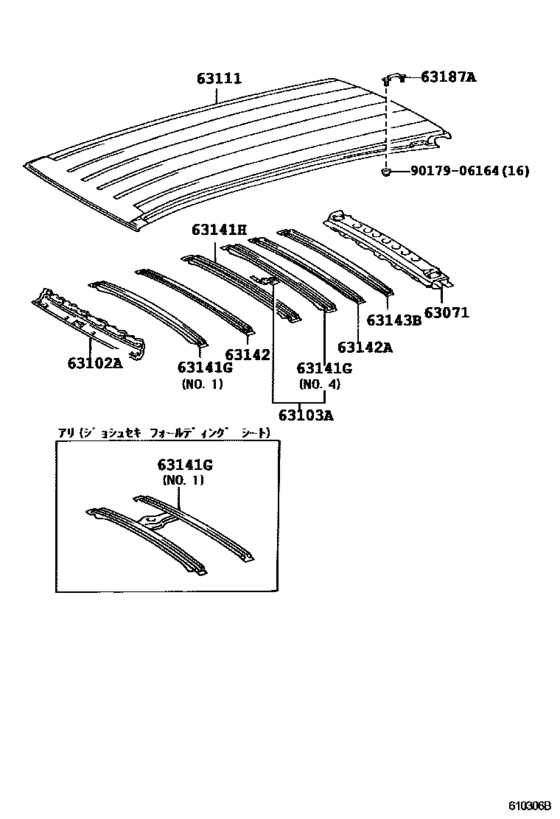

Roof Panel & Back Panel ([06.1997 - ] (9706- )LXH4#,RCH42) Diagram Toyota HIACE REGIUS
- Year
- 1997 - 1999
- Sales region
- Japan
- Frame
- RCH42
- grade
- STD
- body
- VAN
- ENGINE
- 1RZE
- TRANSMISSION
- MTM
- Model
- HIACE REGIUS
- From
- 06.1997
- To
- 07.1999
- No.of Doors
- 5D
- Vehicle Model
- Hiace Regius
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63071
|
63071
63071-26140 Frame Sub-Assy, Back Door Opening, Upper[06.1997 -] LXH4#,RCH42..STD |
63071-26140 |
US $215.49 |
||
| replacement | |||||
|
63071
|
63071
63071-26180 Frame Sub-Assy, Back Door Opening, Upper[06.1997 -] LXH4#,RCH42..STD |
63071-26180 |
US $214.03 |
||
|
63102A
|
63102A
63102-26110 Panel Sub-Assy, Windshield Header[06.1997 -] LXH4#,RCH42..STD |
63102-26110 |
US $96.10 |
||
|
63103A
|
63103A
63103-26160 Reinforcement Sub-Assy, Roof Panel[06.1997 -] LXH4#,RCH42..STD |
63103-26160 |
US $96.10 |
||
|
63111
|
63111
63111-26250 Panel, Roof[06.1997 -] LXH4#,RCH42 |
63111-26250 |
US $1,485.12 |
||
|
63141G
|
63141G
63141-26130 Reinforcement, Roof Panel, No.1[06.1997 - 07.1999] LXH4#,RCH42..STD ＮＯ．４ |
63141-26130 |
US $96.10 |
||
|
63141H
|
63141H
63141-26140 Reinforcement, Roof Panel, Center[06.1997 - 11.2001] LXH4#,RCH42 |
63141-26140 |
US $96.10 |
||
| replacement | |||||
|
63141H
|
63141H
63141-26130 Reinforcement, Roof Panel, No.1[06.1997 - 11.2001] LXH4#,RCH42 |
63141-26130 |
US $96.10 |
||
|
63142
|
63142
63142-26090 Reinforcement, Roof Panel, No.2[06.1997 -] LXH4#,RCH42 |
63142-26090 |
US $67.12 |
||
|
63142A
|
63142A
63142-26090 Reinforcement, Roof Panel, No.2[06.1997 -] LXH4#,RCH42 |
63142-26090 |
US $67.12 |
||
|
63143B
|
63143B
63142-26090 Reinforcement, Roof Panel, No.2[06.1997 -] LXH4#,RCH42 |
63142-26090 |
US $67.12 |
||
|
63187A
|
63187A
63107-26030 Bracket, Roof Rack, Rear[06.1997 -] LXH4#,RCH42 |
63107-26030 |
US $5.59 |
||
|
9017906164
|
9017906164
90179-06164
Nut, Wire Adjusting, No.1
|
90179-06164 |
— | ||
| replacement | |||||
|
9017906164
|
9017906164
90179-06171 Nut, Cap(For Cylinder Head Cover) |
90179-06171 |
from US $0.92 |
||
