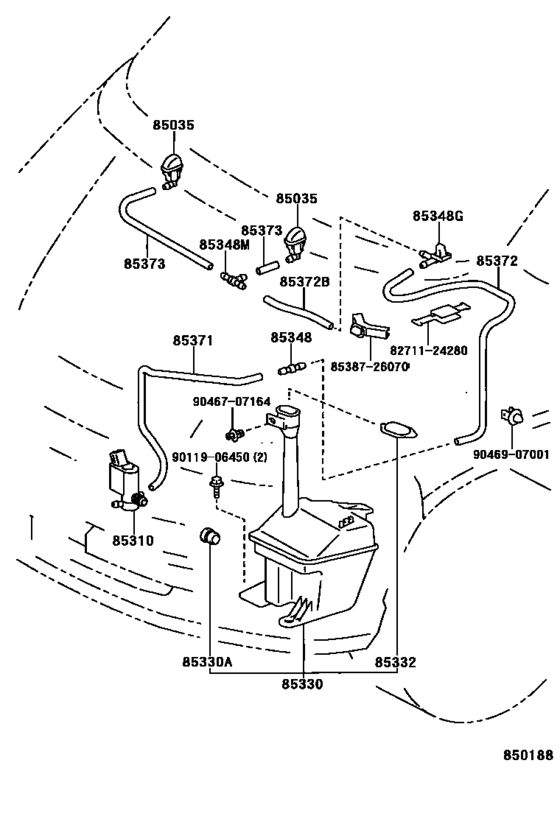

Windshield Washer ([04.1997 - 07.1999] (9704-9907) ; (9907- )LXH4#,RCH42) Diagram Toyota HIACE REGIUS
- Year
- 1997 - 1999
- Sales region
- Japan
- Frame
- RCH42
- grade
- STD
- body
- VAN
- ENGINE
- 1RZE
- TRANSMISSION
- MTM
- Model
- HIACE REGIUS
- From
- 06.1997
- To
- 07.1999
- No.of Doors
- 5D
- Vehicle Model
- Hiace Regius
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-26120
Nozzle Sub-Assy, Washer
[04.1997 -] LXH4#;KCH4#,RCH4#..E,STD,WINT 助手席側 |
85381-26120 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-26020 Nozzle Sub-Assy, WasherWASHER [04.1997 -] LXH4#;KCH4#,RCH4#..E,STD,WINT 助手席側 |
85381-26020 |
US $4.88 |
||
|
85035
|
85035
85381-26130
Nozzle Sub-Assy, Washer
[04.1997 -] LXH4#;KCH4#,RCH4#..E,STD,WINT 運転席側 |
85381-26130 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-26020 Nozzle Sub-Assy, WasherWASHER [04.1997 -] LXH4#;KCH4#,RCH4#..E,STD,WINT 運転席側 |
85381-26020 |
US $4.88 |
||
|
85310
|
85310
85330-10290 Motor And Pump Assy, Windshield Washer[04.1997 -] KCH4#,LXH4#,RCH4# |
85330-10290 |
US $143.73 |
||
|
85330
|
85330
85315-26090
Jar Assy, Windshield Washer
[04.1997 -] KCH4#,LXH4#,RCH4# |
85315-26090 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[04.1997 -] KCH4#,LXH4#,RCH4# |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[04.1997 -] KCH4#,LXH4#,RCH4# |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[04.1997 -] KCH4#,LXH4#,RCH4# |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-42011 Cap, Washer, Inlet[04.1997 -] KCH4#,LXH4#,RCH4# |
85316-42011 |
from US $2.10 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[04.1997 - 02.2000] KCH4#,LXH4#,RCH4# |
85349-89122 |
from US $1.25 |
||
|
85348G
|
85348G
85377-32220 Joint, Windshield Washer Elbow, No.1[04.1997 -] KCH4#,LXH4#,RCH4# |
85377-32220 |
from US $1.05 |
||
|
85348M
|
85348M
85375-28110 Joint, Windshield Washer Hose, No.1[04.1997 -] KCH4#,LXH4#,RCH4# |
85375-28110 |
US $3.36 |
||
|
85371
|
85371
90099-33299 Joint, Windshield Washer Elbow, No.2[04.1997 -] KCH4#,LXH4#,RCH4# ＊Ｈ，Ｌ＝５３０ |
90099-33299 |
from US $4.37 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[04.1997 - 07.1999] KCH4#,LXH4#,RCH4# ＊Ｈ，Ｌ＝１１１０ |
90099-33080 |
from US $5.95 |
||
|
85372B
|
85372B
90099-33299 Joint, Windshield Washer Elbow, No.2[04.1997 - 07.1999] KCH4#,LXH4#,RCH4# ＊Ｈ，Ｌ＝２２０ |
90099-33299 |
from US $4.37 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[04.1997 - 07.1999] KCH4#,LXH4#,RCH4# ＊Ｈ，Ｌ＝１１０ |
90099-33080 |
from US $5.95 |
||
|
8271124280
|
8271124280
82711-24280 Wire, Fuse To Fuse(for Combustion Heater) |
82711-24280 |
US $4.22 |
||
|
8538726070
|
8538726070
85387-26070
Clamp No.1 (for Windseield Washer)
|
85387-26070 |
— | ||
|
9011906450
|
9011906450
90119-06450
New Genuine Part
|
90119-06450 |
— | ||
| replacement | |||||
|
9011906450
|
9011906450
90119-06442 BOLT WWASHER |
90119-06442 |
from US $1.01 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.29 |
||
|
9046907001
|
9046907001
90469-07001 New Genuine Part |
90469-07001 |
US $1.12 |
||
