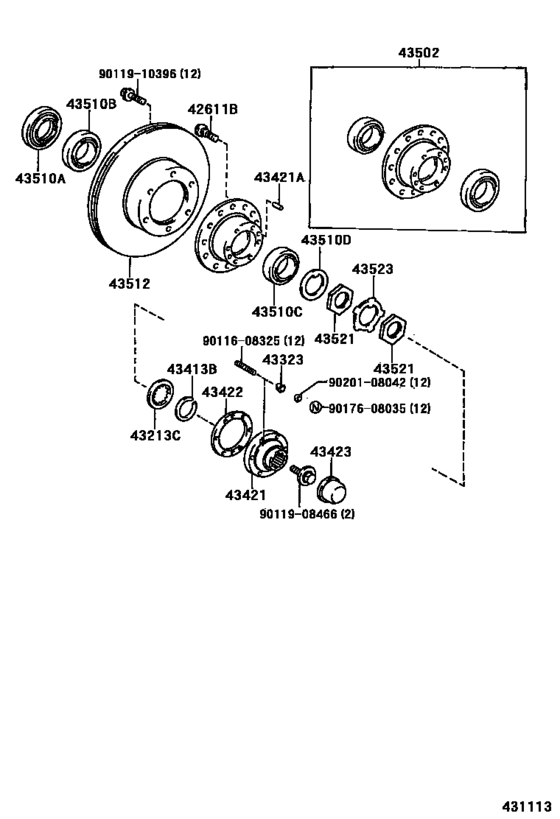

Front Axle Hub ([04.1997 - ] (9704- )KCH46,LXH49,RCH47) Diagram Toyota HIACE REGIUS
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- RCH47
- grade
- V
- body
- WG
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HIACE REGIUS
- From
- 07.1999
- To
- 05.2002
- No.of Doors
- 4D
- Seating Capacity
- W08S
- Vehicle Model
- Hiace Regius
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42611B
|
42611B
90942-02049 Bolt, Hub[04.1997 -] KCH46,LXH49,RCH47 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
42611B
|
42611B
90942-02082 Bolt, Hub[04.1997 -] KCH46,LXH49,RCH47 |
90942-02082 |
from US $2.46 |
||
|
43213C
|
43213C
90560-27005 Spacer (For Drive Shaft)[04.1997 -] KCH46,LXH49,RCH47 厚さ＝２．０ |
90560-27005 |
from US $1.42 |
||
|
43213C
|
43213C
90560-27010 Spacer (For Drive Shaft)[04.1997 -] KCH46,LXH49,RCH47 厚さ＝１．８ |
90560-27010 |
from US $2.15 |
||
|
43213C
|
43213C
90560-27011 Spacer (For Drive Shaft)[04.1997 -] KCH46,LXH49,RCH47 厚さ＝２．２５ |
90560-27011 |
from US $3.22 |
||
|
43323
|
43323
42323-60010 Washer, Cone (For Axle Shaft)[04.1997 -] KCH46,LXH49,RCH47 |
42323-60010 |
from US $3.12 |
||
|
43413B
|
43413B
90520-27023 Ring, Snap (For Front Drive Shaft)[04.1997 -] KCH46,LXH49,RCH47 |
90520-27023 |
from US $1.91 |
||
|
43421
|
43421
43421-26010 Flange, Front Axle Outer Shaft[01.1999 -] KCH46,LXH49,RCH47 |
43421-26010 |
US $46.21 |
||
|
43421A
|
43421A
90250-07057 Pin, Straight (For Axle Hub)[04.1997 -] KCH46,LXH49,RCH47 |
90250-07057 |
from US $1.19 |
||
|
43422
|
43422
43422-60010 Gasket, Axle Shaft[04.1997 -] KCH46,LXH49,RCH47 |
43422-60010 |
from US $0.88 |
||
|
43423
|
43423
43423-35010 Cap, Front Axle Outer Shaft Flange[04.1997 -] KCH46,LXH49,RCH47 |
43423-35010 |
from US $2.98 |
||
|
43502
|
43502
43503-29025
Hub Sub-Assy, Front Axle
[04.1997 - 05.2002] KCH46,LXH49,RCH47 ｱﾘ(ABS) |
43503-29025 |
— | ||
| replacement | |||||
|
43502
|
43502
43503-29026 Hub Sub-Assy, Front Axle (For ABS)[04.1997 - 05.2002] KCH46,LXH49,RCH47 ｱﾘ(ABS) |
43503-29026 |
US $191.52 |
||
|
43510A
|
43510A
90311-66003 Seal, Oil (For Front Axle Hub )[04.1997 -] KCH46,LXH49,RCH47 |
90311-66003 |
from US $13.44 |
||
|
43510B
|
43510B
90080-36064
Bearing (For Rear Axle Shaft Inner)
[04.1997 -] KCH46,LXH49,RCH47 |
90080-36064 |
— | ||
| replacement | |||||
|
43510B
|
43510B
90368-49084 Bearing (For Axle Shaft Inner)[04.1997 -] KCH46,LXH49,RCH47 |
90368-49084 |
from US $57.19 |
||
|
43510C
|
43510C
90080-36067
Bearing (For Rear Axle Shaft Outer)
[04.1997 -] KCH46,LXH49,RCH47 |
90080-36067 |
— | ||
| replacement | |||||
|
43510C
|
43510C
90368-45087 Bearing (For Axle Shaft Outer)[04.1997 -] KCH46,LXH49,RCH47 |
90368-45087 |
from US $45.42 |
||
|
43510D
|
43510D
90214-42030 Washer, Claw (For Rear Axle Shaft)[04.1997 -] KCH46,LXH49,RCH47 |
90214-42030 |
from US $2.94 |
||
|
43512
|
43512
43512-26130 Disc, Front[04.1997 -] LXH49;KCH46,RCH47..E,STD,V,WISTD |
43512-26130 |
US $184.32 |
||
|
43512
|
43512
43512-26180
Disc, Front
[04.1997 -] KCH46,RCH47..G,STD,V,WINT,WISTD ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
43512-26180 |
— | ||
| replacement | |||||
|
43512
|
43512
43512-26130 Disc, Front[04.1997 -] KCH46,RCH47..G,STD,V,WINT,WISTD ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
43512-26130 |
US $184.32 |
||
|
43521
|
43521
43521-60011 Nut, Front Wheel Adjusting[04.1997 -] KCH46,LXH49,RCH47 |
43521-60011 |
from US $5.77 |
||
|
43523
|
43523
90215-42025 Washer, Front Wheel Adjusting Lock[04.1997 -] KCH46,LXH49,RCH47 |
90215-42025 |
from US $1.99 |
||
|
9011608325
|
9011608325
90116-08325 Bolt, Stud (For Axle Hub) |
90116-08325 |
from US $0.84 |
||
|
9011908466
|
9011908466
90119-08466 BOLT |
90119-08466 |
from US $1.56 |
||
|
9011910396
|
9011910396
90119-10396 Bolt(For Backing Plate To Rear Axle Housing Setting) |
90119-10396 |
US $2.40 |
||
|
9017608035
|
9017608035
90176-08035 Nut |
90176-08035 |
US $2.56 |
||
|
9020108042
|
9020108042
90201-08042 WASHER |
90201-08042 |
from US $2.05 |
||
