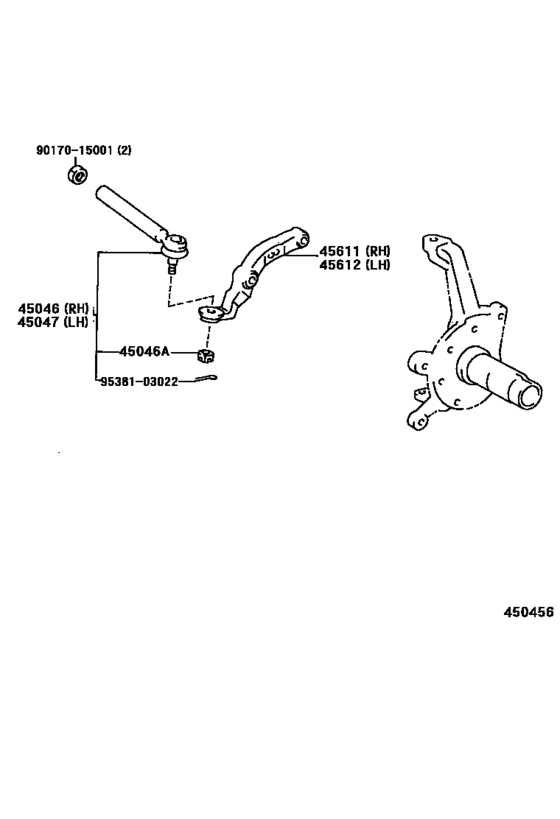

Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47) Diagram Toyota HIACE REGIUS
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- RCH47
- grade
- V
- body
- WG
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HIACE REGIUS
- From
- 07.1999
- To
- 05.2002
- No.of Doors
- 4D
- Seating Capacity
- W08S
- Vehicle Model
- Hiace Regius
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-29325 Tie Rod End Sub-Assy[07.1999 -] KCH4#,LXH4#,RCH4# |
45046-29325 |
from US $46 |
||
|
45046A
|
45046A
90171-14002 Nut (For Rear Steering Knuckle Arm)[04.1997 -] KCH4#,LXH4#,RCH4# |
90171-14002 |
US $3.84 |
||
|
45047
|
45047
45046-29325 Tie Rod End Sub-Assy[07.1999 -] KCH4#,LXH4#,RCH4# |
45046-29325 |
from US $46 |
||
|
45611
|
45611
45611-26080 Arm, Steering Knuckle, Rh[04.1997 -] KCH46,LXH49,RCH47 |
45611-26080 |
US $90.85 |
||
|
45612
|
45612
45612-26080 Arm, Steering Knuckle, Lh[04.1997 -] KCH46,LXH49,RCH47 |
45612-26080 |
US $90.85 |
||
|
9017015001
|
9017015001
90170-15001 Nut, Rack End Lock |
90170-15001 |
from US $1.79 |
||
|
9538103022
|
9538103022
95381-03022 Cotter pin |
95381-03022 |
US $1.76 |
