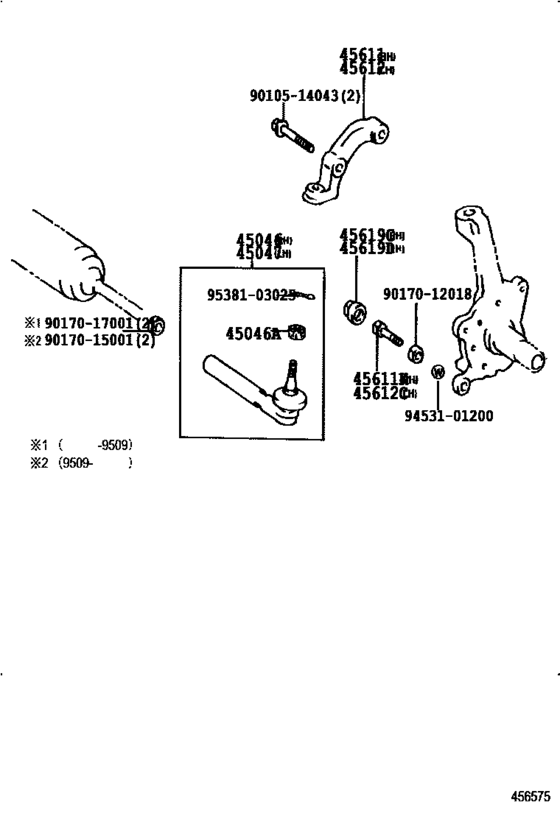

Front Steering Gear & Link ([05.1995 - ] (9505- )LY151,161) Diagram Toyota HIACE TRUCK
- Year
- 1995 - 1996
- Sales region
- Japan
- Frame
- LY151
- ENGINE
- 3L
- TRANSMISSION
- MTM
- Model
- HIACE TRUCK
- From
- 05.1995
- To
- 10.1996
- Deck,cab
- T3
- Building Condition
- CBU
- Deck(Material)
- TB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-29215 Tie Rod End Sub-Assy[05.1995 - 09.1995] LY151,161 |
45046-29215 |
from US $70.68 |
||
|
45046
|
45046
45046-29325 Tie Rod End Sub-Assy[09.1995 - 10.1996] LY151,161 |
45046-29325 |
from US $46 |
||
|
45046A
|
45046A
90171-14042 Nut, Castle(For Pitman Arm)[05.1995 - 10.1996] LY101,111,151,161,YY101 |
90171-14042 |
from US $2.30 |
||
|
45047
|
45047
45046-29215 Tie Rod End Sub-Assy[05.1995 - 09.1995] LY151,161 |
45046-29215 |
from US $70.68 |
||
|
45047
|
45047
45046-29325 Tie Rod End Sub-Assy[09.1995 - 10.1996] LY151,161 |
45046-29325 |
from US $46 |
||
|
45611
|
45611
45611-26050 Arm, Steering Knuckle, Rh[05.1995 - 10.1996] LY151,161 |
45611-26050 |
US $100.46 |
||
|
45611K
|
45611K
90106-12012 Bolt, Round Hexagon (For Steering Knuckle Stopper)[05.1995 - 10.1996] LY151,161 |
90106-12012 |
US $7.68 |
||
|
45612
|
45612
45612-26050 Arm, Steering Knuckle, Lh[05.1995 - 10.1996] LY151,161 |
45612-26050 |
US $100.46 |
||
|
45612C
|
45612C
90106-12012 Bolt, Round Hexagon (For Steering Knuckle Stopper)[05.1995 - 10.1996] LY151,161 |
90106-12012 |
US $7.68 |
||
|
45619C
|
45619C
45619-36010 Cover, Knuckle Stopper[05.1995 - 10.1996] LY101,111,151,161,YY101 |
45619-36010 |
from US $4.52 |
||
|
45619D
|
45619D
45619-36010 Cover, Knuckle Stopper[05.1995 - 10.1996] LY101,111,151,161,YY101 |
45619-36010 |
from US $4.52 |
||
|
9010514043
|
9010514043
90105-14043 Bolt(For Steering Knuckle Arm Rh) |
90105-14043 |
US $6.24 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $1.28 |
||
|
9017015001
|
9017015001
90170-15001 Nut, Rack End Lock |
90170-15001 |
from US $1.79 |
||
|
9017017001
|
9017017001
90170-17001 NUT HEXAGON |
90170-17001 |
from US $2.03 |
||
|
9453101200
|
9453101200
94531-01200 WASHER |
94531-01200 |
from US $0.80 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
