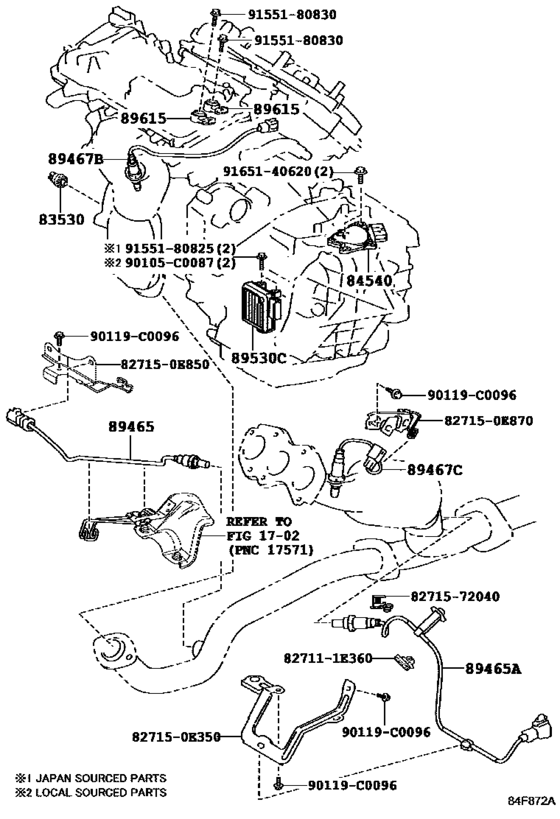

Switch & Relay & Computer ([03.2015 - ] ENGINE & TRANSMISSION (1503- )GSU55) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GSU55
- grade
- SPO
- body
- WG
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- HIGHLANDER (CHINA)
- From
- 03.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- Highlander
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.2015 -] GSU55 DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.2015 -] GSU55 DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.2015 -] GSU55 DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.2015 -] GSU55 YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-33010 Switch Assy, Neutral Start[03.2015 -] ASU5#,GSU55 |
84540-33010 |
from US $112.48 |
||
|
89465
|
89465
89465-0E160
Sensor, Oxygen
[03.2015 -] GSU55 |
89465-0E160 |
— | ||
|
89465A
|
89465A
89465-0E170
Sensor, Oxygen No.2
[03.2015 -] GSU55 |
89465-0E170 |
— | ||
|
89467B
|
89467B
89467-0E210
Sensor, Air Fuel Ratio
[03.2015 -] GSU55 |
89467-0E210 |
— | ||
|
89467C
|
89467C
89467-0E220
Sensor, Air Fuel Ratio, No.2
[03.2015 -] GSU55 |
89467-0E220 |
— | ||
|
89530C
|
89530C
89530-48300
Computer Assy, Transmission Control
[03.2015 -] GSU55 |
89530-48300 |
— | ||
|
89615
|
89615
89615-20090 Sensor, Knock Control[03.2015 -] GSU55 |
89615-20090 |
from US $36.02 |
||
|
90105C0087
|
90105C0087
90105-C0087
New Genuine Part
|
90105-C0087 |
— | ||
|
90119C0096
|
90119C0096
90119-C0096
New Genuine Part
|
90119-C0096 |
— | ||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $0.96 |
||
|
827150E350
|
827150E350
82715-0E350
Bracket,wiring Harness Clamp
|
82715-0E350 |
— | ||
|
827150E850
|
827150E850
82715-0E850
Bracket,wiring Harness Clamp
|
82715-0E850 |
— | ||
|
827150E870
|
827150E870
82715-0E870
Bracket,wiring Harness Clamp
|
82715-0E870 |
— | ||
|
8271572040
|
8271572040
82715-72040
Bracket,wiring Harness Clamp
|
82715-72040 |
— | ||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.90 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
