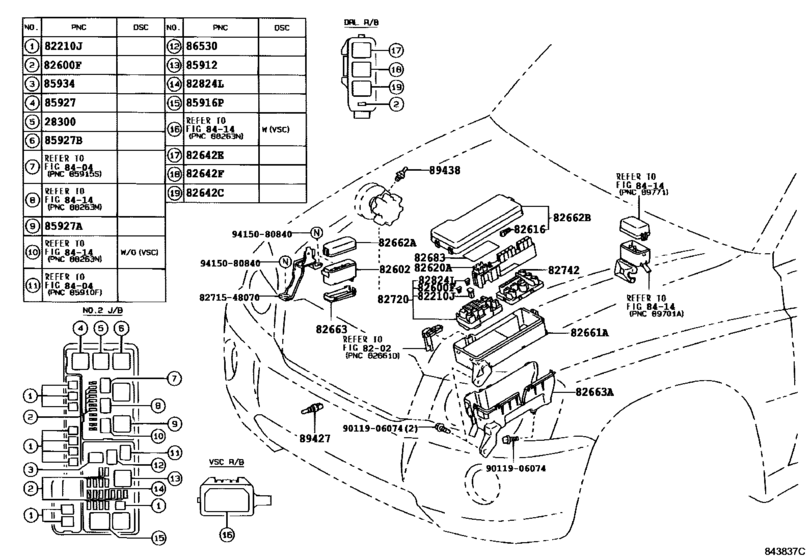

Switch & Relay & Computer ([11.2000 - 08.2003] ENGINE ROOM (0011-0308)) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2000 - 2003
- Sales region
- U.S.A.
- Frame
- MCU20
- body
- WG
- ENGINE
- 1MZFE
- Model
- HIGHLANDER
- From
- 11.2000
- To
- 08.2003
- Gear Shift Type
- 4FC
- Seating Capacity
- 05S
- Vehicle Model
- Highlander
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[11.2000 - 08.2003] 2AZFE,1MZFE..ACU2#,MCU2# |
28300-10020 |
from US $53.76 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[11.2000 - 08.2003] ACU2#,MCU2# 30A,TERMINAL:FEMALE |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[11.2000 - 08.2003] ACU2#,MCU2# 40A,TERMINAL:FEMALE |
90982-08284 |
from US $9.44 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[11.2000 - 08.2003] ACU2#,MCU2# 50A,TERMINAL:FEMALE |
90982-08285 |
US $7.04 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[11.2000 - 08.2003] ACU2#,MCU2# 140A,TERMINAL:MALE |
90982-08286 |
from US $7.68 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[11.2000 - 08.2003] ACU2#,MCU2# 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[11.2000 - 08.2003] ACU2#,MCU2# 10A,MINI FUSE |
90982-09009 |
US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[11.2000 - 08.2003] ACU2#,MCU2# 15A,MINI FUSE |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[11.2000 - 08.2003] ACU2#,MCU2# 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[11.2000 - 08.2003] ACU2#,MCU2# 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82602
|
82602
82602-07010
Block Sub-Assy, Relay
[11.2000 - 08.2003] ACU2#,MCU2# |
82602-07010 |
— | ||
|
82616
|
82616
82616-20010 Puller, Fuse[11.2000 - 08.2003] ACU2#,MCU2# |
82616-20010 |
from US $2.38 |
||
|
82620A
|
82620A
82620-48030 Block Assy, Fusible Link[11.2000 - 08.2003] ACU2#,MCU2# |
82620-48030 |
US $94.64 |
||
|
82642C
|
82642C
90987-02006 Relay[11.2000 - 08.2003] ACU2#,MCU2# |
90987-02006 |
from US $27.65 |
||
|
82642E
|
82642E
90987-04002 Relay, Ignition, No.1[11.2000 - 08.2003] ACU2#,MCU2# |
90987-04002 |
from US $25.27 |
||
|
82642F
|
82642F
90987-02006 Relay[11.2000 - 08.2003] ACU2#,MCU2# |
90987-02006 |
from US $27.65 |
||
|
82661A
|
82661A
82661-48010 Cover, Relay Block, No.2[11.2000 - 08.2003] ACU2#,MCU2# |
82661-48010 |
US $70.18 |
||
|
82662A
|
82662A
82662-48010
Cover, Relay Block, Upper, No.1
[11.2000 - 08.2003] ACU2#,MCU2# |
82662-48010 |
— | ||
|
82662B
|
82662B
82662-48020 Cover, Relay Block, Upper, No.2[11.2000 - 08.2003] ACU2#,MCU2# |
82662-48020 |
US $49.80 |
||
|
82663
|
82663
82663-07030
Cover, Relay Block, No.1
[11.2000 - 08.2003] ACU2#,MCU2# |
82663-07030 |
— | ||
|
82663A
|
82663A
82663-48010 Cover, Relay Block, Lower, No.2[11.2000 - 08.2003] ACU2#,MCU2# |
82663-48010 |
US $112.11 |
||
|
82683
|
82683
82683-48130 Plate, Fuse Block Caution[11.2000 - 08.2003] ACU2#,MCU2# |
82683-48130 |
US $3.64 |
||
|
82720
|
82720
82720-48020 Block Assy, Engine Room Junction[11.2000 - 08.2003] ACU2#,MCU2# |
82720-48020 |
US $320.32 |
||
|
82742
|
82742
82741-48040 Block, Engine Room Relay, No.2[11.2000 - 08.2003] ACU2#,MCU2# |
82741-48040 |
US $47.17 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[11.2000 - 08.2003] ACU2#,MCU2# |
82824-20140 |
US $3.32 |
||
|
85912
|
85912
90987-04003 Relay, Ignition, No.1[11.2000 - 08.2003] ACU2#,MCU2# |
90987-04003 |
US $67.94 |
||
|
85916P
|
85916P
90987-02006 Relay[11.2000 - 08.2003] ACU2#,MCU2# |
90987-02006 |
from US $27.65 |
||
|
85927
|
85927
90987-02009 Relay Assy[11.2000 - 08.2003] ACU2#,MCU2# |
90987-02009 |
US $64.60 |
||
|
85927A
|
85927A
90987-04003 Relay, Ignition, No.1[11.2000 - 08.2003] ACU2#,MCU2# |
90987-04003 |
US $67.94 |
||
|
85927B
|
85927B
90987-02009 Relay Assy[11.2000 - 08.2003] ACU2#,MCU2# |
90987-02009 |
US $64.60 |
||
|
85934
|
85934
90987-02020 Relay, Ignition, No.1[11.2000 - 08.2003] ACU2#,MCU2# |
90987-02020 |
US $50.84 |
||
|
86530
|
86530
90987-02020 Relay, Ignition, No.1[11.2000 - 08.2003] ACU2#,MCU2# |
90987-02020 |
US $50.84 |
||
|
89427
|
89427
89428-21010 Switch, Temperature Detect[11.2000 - 08.2003] MCU2# |
89428-21010 |
from US $87.93 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[11.2000 - 08.2003] ACU2#,MCU2# |
89438-33010 |
from US $31.18 |
||
|
8271548070
|
8271548070
82715-48070 Bracket,wiring Harness Clamp |
82715-48070 |
US $23.59 |
||
|
9011906074
|
9011906074
90119-06074 Bolt |
90119-06074 |
US $1.92 |
||
|
9415080840
|
9415080840
94150-80840
New Genuine Part
|
94150-80840 |
— |
