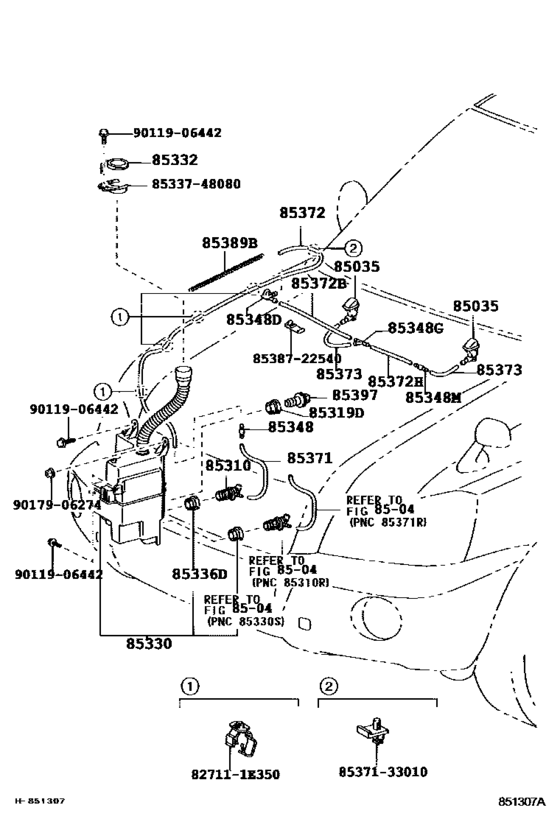

Windshield Washer ([08.2003 - ] (0308- )) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2003 - 2007
- Sales region
- U.S.A.
- Frame
- MCU23
- body
- WG
- ENGINE
- 3MZFE
- Model
- HIGHLANDER
- From
- 08.2003
- To
- 05.2007
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Highlander
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-48050 Nozzle Sub-Assy, Washer[08.2003 -] ACU2#,MCU2# |
85381-48050 |
US $23.94 |
||
|
85310
|
85310
85330-60190 Motor And Pump Assy, Windshield Washer[08.2003 -] ACU2#,MCU2# |
85330-60190 |
from US $81.40 |
||
|
85319D
|
85319D
85319-33230 Packing, Front Washer[08.2003 -] ACU2#,MCU2# |
85319-33230 |
from US $2.53 |
||
|
85330
|
85330
85315-48060
Jar Assy, Windshield Washer
[08.2003 -] ACU2#,MCU2# |
85315-48060 |
— | ||
|
85332
|
85332
85316-48060 Cap, Windshield Washer Jar[08.2003 -] ACU2#,MCU2# |
85316-48060 |
US $1.47 |
||
|
85336D
|
85336D
85336-60300 Bush, Windshield Washer Jar[08.2003 -] ACU2#,MCU2# |
85336-60300 |
from US $1.92 |
||
|
85348
|
85348
85375-10260 Joint, Windshield Washer Hose, No.1[08.2003 - 04.2005] ACU2#,MCU2# |
85375-10260 |
from US $1.62 |
||
|
85348D
|
85348D
85375-33070 Joint, Windshield Washer Hose, No.1[08.2003 - 04.2005] ACU2#,MCU2# |
85375-33070 |
US $0.84 |
||
|
85348G
|
85348G
85348-12250 Joint, Windshield Washer Hose, No.1[08.2003 - 04.2005] ACU2#,MCU2# |
85348-12250 |
from US $0.55 |
||
|
85348M
|
85348M
85375-10260 Joint, Windshield Washer Hose, No.1[08.2003 - 04.2005] ACU2#,MCU2# |
85375-10260 |
from US $1.62 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.2003 -] ACU2#,MCU2# *H,L=290 |
90099-33080 |
from US $5.95 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.2003 - 04.2005] ACU2#,MCU2# L=1450 |
90099-33080 |
from US $5.95 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.2003 - 04.2005] ACU2#,MCU2# *H,L=510 |
90099-33080 |
from US $5.95 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.2003 - 04.2005] ACU2#,MCU2# *H,L=390 |
90099-33080 |
from US $5.95 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.2003 -] ACU2#,MCU2# *H,L=210 |
90099-33080 |
from US $5.95 |
||
|
85389B
|
85389B
85389-48150
Protector, Windshield Washer
[05.2005 -] ACU2#,MCU2# |
85389-48150 |
— | ||
|
85397
|
85397
85397-33230 Switch Assy,level Warning[08.2003 -] ACU2#,MCU2# |
85397-33230 |
from US $38.29 |
||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
US $2.88 |
||
| replacement | |||||
|
827111E350
|
827111E350
82711-06050 Clamp, Door Scuff Plate, No.2 |
82711-06050 |
US $6.47 |
||
|
8533748080
|
8533748080
85337-48080
Case, Level Warning Switch
|
85337-48080 |
— | ||
|
8537133010
|
8537133010
85371-33010 Clamp, Washer, No.2 |
85371-33010 |
US $2.40 |
||
|
8538722540
|
8538722540
85387-22540
Clamp No.1 (For Windseield Washer)
|
85387-22540 |
— | ||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
from US $1.01 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
