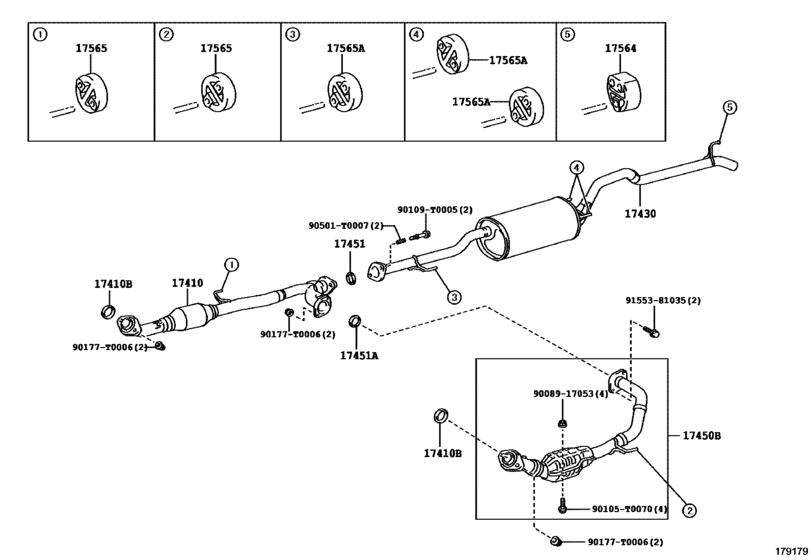

Exhaust Pipe ([01.2016 - ] (1601- )1GRFE..GGN125,135..SA) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- GGN135
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- SA
- CAB
- SADCB
- Model
- HILUX
- From
- 01.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- Hilux
- Model Mark
- M
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-0P080 Pipe Assy, Exhaust, Front[01.2016 -] 1GRFE..GGN125,135..SA |
17401-0P080 |
US $963.73 |
||
|
17410B
|
17410B
90917-T6003
Gasket, Exhaust Pipe
[05.2015 -] 1GRFE..GGN12#,135 |
90917-T6003 |
— | ||
|
17430
|
17430
17430-0P380 Pipe Assy, Exhaust, Tail[05.2015 -] 1GRFE..GGN12#,135 |
17430-0P380 |
US $407.47 |
||
|
17450B
|
17450B
17450-0P190 Pipe Assy, Exhaust, Front No.2[01.2016 -] 1GRFE..GGN125,135..SA |
17450-0P190 |
US $912.03 |
||
|
17451
|
17451
17451-0L050 Gasket, Exhaust Pipe[05.2015 -] 1GRFE..GGN12#,135 |
17451-0L050 |
US $23.50 |
||
|
17451A
|
17451A
90917-T6002 Gasket, Exhaust Pipe, Center[05.2015 -] 2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN122..THSCB..(L,M,X);1GRFE,2GDFTV..GGN12#, 135,GUN112;1GDFTV,2KDFTV..GUN126,KUN112..(H,L,X)..(GCC,IDN,VN);2KDFTV..KUN122..(PK NSC,SADCB,SASCB,THDCB,THXTR)..(L,M,S,X);1GDFTV,2GDFTV,5LE,1TRFE,2TRFE..GUN13# |
90917-T6002 |
US $9.46 |
||
|
17564
|
17564
17565-0L100
Support,exhaust Pipe, No.4
[05.2015 -] 1GDFTV..GUN126..H..VN;2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN122..THSCB..(L,M,X) ;2KDFTV,1TRFE,2TRFE..KUN112,TGN110,120,128..L,M,X;2KDFTV..KUN122..(PKNSC,SADCB,SAS CB,THDCB,THXTR)..(L,M,S,X);1G#,2GDFTV,2KDFTV..GGN12#,135,GUN112,122,123,125,1 |
17565-0L100 |
— | ||
|
17565
|
17565
17565-0L090
Support, Exhaust Pipe, No.5
[05.2015 -] 1GRFE..GGN12#,135 |
17565-0L090 |
— | ||
|
17565A
|
17565A
17565-0L090
Support, Exhaust Pipe, No.5
[05.2015 -] 2KDFTV..KUN122..LHD..THSCB..S;2KDFTV..KUN122..THSCB..(L,M,X);1GRFE,2GDFTV..GGN12#, 135,GUN112;1GDFTV,2KDFTV..GUN126,KUN112..(H,L,X)..(GCC,IDN,VN);2KDFTV..KUN122..(PK NSC,SADCB,SASCB,THDCB,THXTR)..(L,M,S,X);1GDFTV,2GDFTV,5LE,1TRFE,2TRFE..GUN13# |
17565-0L090 |
— | ||
|
90105T0070
|
90105T0070
90105-T0070
New Genuine Part
|
90105-T0070 |
— | ||
|
90109T0005
|
90109T0005
90109-T0005 BOLT |
90109-T0005 |
US $2.63 |
||
|
90177T0006
|
90177T0006
90177-T0006 Nut, Exhaust Pipe Set Stud Bolt |
90177-T0006 |
from US $1.01 |
||
| replacement | |||||
|
90177T0006
|
90177T0006
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
|
90501T0007
|
90501T0007
90501-T0007 SPRING |
90501-T0007 |
from US $2.91 |
||
|
9008917053
|
9008917053
90089-17053
New Genuine Part
|
90089-17053 |
— | ||
|
9155381035
|
9155381035
91553-81035 BOLT, FLANGE |
91553-81035 |
from US $1.15 |
||
