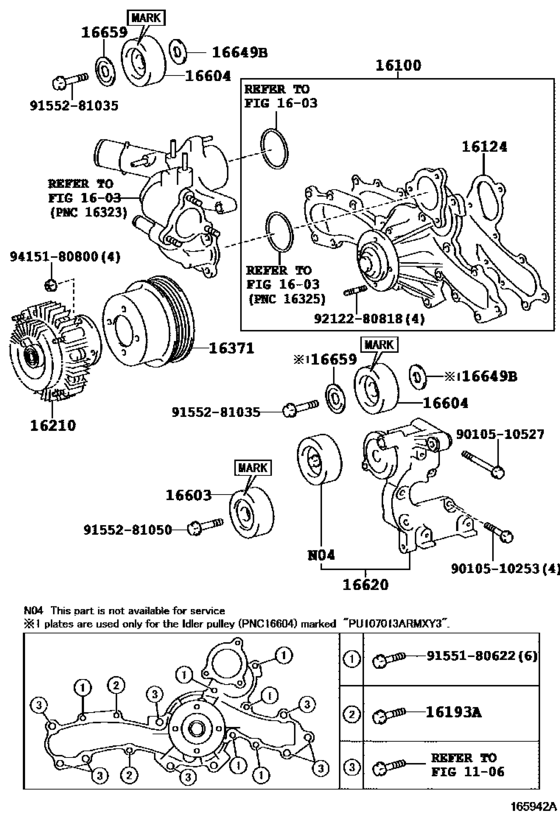

Water Pump ([05.2015 - ] (1505- )1GRFE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- GGN135
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- SA
- CAB
- SADCB
- Model
- HILUX
- From
- 01.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- Hilux
- Model Mark
- M
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-39406 Pump Assy, Engine WaterWATER [05.2015 -] 1GRFE..GGN12#,135 |
16100-39406 |
from US $168.42 |
||
|
16124
|
16124
16124-31070 Gasket, Water Pump Cover[05.2015 -] 1GRFE..GGN12#,135 |
16124-31070 |
from US $8.23 |
||
|
16193A
|
16193A
16193-31080 Bolt(For Water Pump Cover)[05.2015 -] 1GRFE..GGN12#,135 |
16193-31080 |
US $3.76 |
||
|
16210
|
16210
16210-31020
Coupling Assy, Fluid
[05.2015 - 06.2016] 1GRFE..GGN12#,135 |
16210-31020 |
— | ||
| replacement | |||||
|
16210
|
16210
16210-31021 Coupling Assy, Fluid[05.2015 - 06.2016] 1GRFE..GGN12#,135 |
16210-31021 |
from US $220.66 |
||
|
16210
|
16210
16210-31021 Coupling Assy, Fluid[07.2016 -] 1GRFE..GGN12#,135 |
16210-31021 |
from US $220.66 |
||
|
16371
|
16371
16371-31040 Pulley, Fan[05.2015 -] 1GRFE..GGN12#,135 |
16371-31040 |
from US $37.97 |
||
|
16603
|
16603
16603-31050 Pulley Sub-Assy, Idler, No.1[05.2015 -] 1GRFE..GGN12#,135 |
16603-31050 |
from US $46.41 |
||
|
16604
|
16604
16604-31020 Pulley Sub-Assy, Idler, No.2[05.2015 -] 1GRFE..GGN12#,135 MARK=PU107013ARMXY3 |
16604-31020 |
from US $41.26 |
||
|
16604
|
16604
16604-31030 Pulley Sub-Assy, Idler, No.2[05.2015 -] 1GRFE..GGN12#,135 MARK=PU107016RMXY |
16604-31030 |
from US $41.89 |
||
|
16620
|
16620
16620-31012
Tensioner Assy, V-Ribbed Belt
[05.2015 - 02.2016] 1GRFE..GGN12#,135 |
16620-31012 |
— | ||
| replacement | |||||
|
16620
|
16620
16620-31013 Tensioner Assy, V-Ribbed Belt[05.2015 - 02.2016] 1GRFE..GGN12#,135 |
16620-31013 |
from US $85.18 |
||
|
16620
|
16620
16620-31013 Tensioner Assy, V-Ribbed Belt[03.2016 -] 1GRFE..GGN12#,135 |
16620-31013 |
from US $85.18 |
||
|
16649B
|
16649B
16649-31020 Plate, Idler Pulley Cover[05.2015 -] 1GRFE..GGN12#,135 MARK=PU107013ARMXY3 |
16649-31020 |
from US $1.79 |
||
|
16659
|
16659
16659-31011 Plate, Idler Pulley Cover, No.2[05.2015 -] 1GRFE..GGN12#,135 MARK=PU107013ARMXY3 |
16659-31011 |
from US $1.83 |
||
| replacement | |||||
|
16659
|
16659
16659-AD010 Plate, Idler Pulley Cover, No.2[05.2015 -] 1GRFE..GGN12#,135 MARK=PU107013ARMXY3 |
16659-AD010 |
US $6.03 |
||
|
9010510253
|
9010510253
90105-10253 BOLT |
90105-10253 |
from US $1.35 |
||
|
9010510527
|
9010510527
90105-10527 BOLTSHOULDER |
90105-10527 |
US $1.22 |
||
|
9155180622
|
9155180622
91551-80622 BOLT FLANGE |
91551-80622 |
US $1.08 |
||
|
9155281035
|
9155281035
91552-81035 BOLT |
91552-81035 |
from US $1.15 |
||
|
9155281050
|
9155281050
91552-81050 Bolt, No.2(For Alternator) |
91552-81050 |
from US $1.29 |
||
|
9212280818
|
9212280818
92122-80818 Bolt, Stud(For Water Pump Pulley Seat) |
92122-80818 |
US $1.61 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
