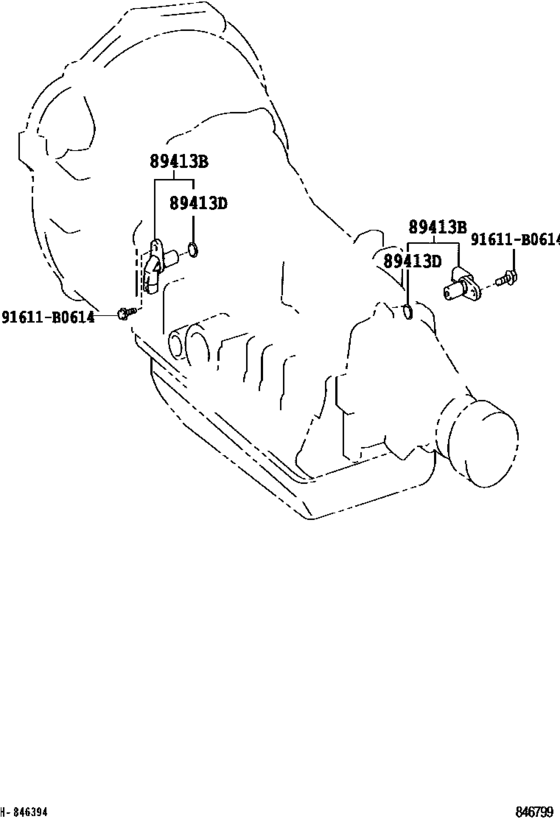

Overdrive & Electronic Controlled Transmission ([02.2005 - ] (0502- )5FC) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- GGN15
- grade
- SR
- ENGINE
- 1GRFE
- DESTINATION
- ARL
- DECK
- SD
- CAB
- XTR
- Model
- HILUX
- From
- 02.2005
- To
- 07.2011
- Gear Shift Type
- 5FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89413B
|
89413B
89413-32010
SENSOR, TRANSMISSION REVOLUTION
[02.2005 - 12.2008] GGN15,25..5FC |
89413-32010 |
— | ||
| replacement | |||||
|
89413B
|
89413B
89413-32011 SENSOR, TRANSMISSION REVOLUTION[02.2005 - 12.2008] GGN15,25..5FC |
89413-32011 |
from US $75.94 |
||
|
89413D
|
89413D
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[02.2005 - 12.2008] GGN15,25..5FC |
90301-11008 |
from US $0.90 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
