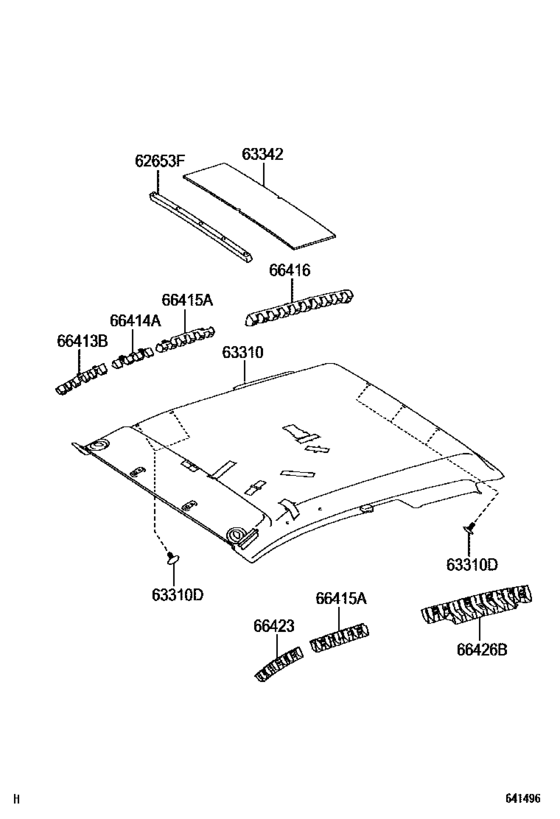

Roof Headlining & Silencer Pad ([08.2004 - ] (0408- )XTR) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- GGN15
- grade
- SR
- ENGINE
- 1GRFE
- DESTINATION
- ARL
- DECK
- SD
- CAB
- XTR
- Model
- HILUX
- From
- 02.2005
- To
- 07.2011
- Gear Shift Type
- 5FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62653F
|
62653F
62653-0K080
Packing (For Roof Headlining)
[08.2004 - 09.2008] TGN16..TH;KUN16..DCB..ARL;TGN16..(DCB,XTR)..5F..(ARL,GCC,GEN);KUN26..(DCB,THDCB,XT R)..(ARL,GEN,PHL,TH);KUN15,16,TGN36..(DCB,XTR)..(GCC,GEN,PHL,TH);GGN15,25,KUN25,3# ,TGN15,26..(DCB,THDCB,XTR)..(ARL,GCC,GEN,MA,TH) |
62653-0K080 |
— | ||
|
63310
|
63310
63310-0K020-B1
Headlining Assy, Roof
[08.2004 - 08.2007] GGN15,25,KUN26..XTR..SR..ARL LT. GRAY,TRIM1# |
63310-0K020-B1 |
— | ||
|
63310
|
63310
63310-0K030-B1
Headlining Assy, Roof
[08.2007 - 08.2008] GGN15,25,KUN16,2#,TGN16,26..XTR..SR LT. GRAY,TRIM1# |
63310-0K030-B1 |
— | ||
| replacement | |||||
|
63310
|
63310
63310-0K020-B1
Headlining Assy, Roof
[08.2007 - 08.2008] GGN15,25,KUN16,2#,TGN16,26..XTR..SR LT. GRAY,TRIM1# |
63310-0K020-B1 |
— | ||
|
63310D
|
63310D
90467-T0004-A0 Clip[08.2004 - 10.2008] TGN16..(DCB,XTR)..SR;GGN15,25,KUN15,16,2#,36,TGN26,36..(DCB,SCB,XTR)..SR..(ARL,MA, PHL,SA,TH) IVORY,TRIM0# |
90467-T0004-A0 |
US $1.29 |
||
|
63310D
|
63310D
90467-T0004-B0 Clip[08.2004 - 01.2012] TGN16..XTR;KUN35..SCB..LA;KUN15..DCB..SA;KUN25..ANCOM,SA;KUN35..DLX..(ANCOM,GEN,SA );TGN36..DCB..(ANCOM,PHL,SA);KUN26..4FC..SR..(ARL,LA,PHL,TH);KUN36..(DCB,SCB)..5F. .SR..(LA,SA);KUN26..(SCB,THDCB,XTR)..(ARL,GEN,TH);KUN16,25..(SCB,THDC |
90467-T0004-B0 |
US $0.90 |
||
|
63342
|
63342
63342-0K010
Pad, Roof Silencer, No.2
[08.2004 - 01.2012] KUN16,TGN10..SCB..DLX;KUN16,TGN16..(SCB,XTR)..SR;TGN16..(SCB,XTR)..5F..DLX..(ARL,G CC,GEN);GGN15,25,KUN10,15,2#,36,LAN15,TGN11,15,26..(SCB,THSCB,XTR)..(ARL,GCC,GEN,M A,PKN,TH) |
63342-0K010 |
— | ||
|
66413B
|
66413B
66413-0K010
Spacer, Side Rail, Front Rh
[08.2004 - 01.2012] KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..( DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,S CB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5F |
66413-0K010 |
— | ||
|
66414A
|
66414A
66414-0K010
Spacer, Side Rail
[08.2004 - 01.2012] KUN26..XTR..IV3;TGN16..(SCB,XTR)..SR;KUN25,TGN16..DCB..5F..GCC;GGN15,KUN15,TGN36.. DCB..SR..(ARL,PHL);TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN);GGN25,KUN16,26..(SCB,T HDCB)..(ARL,GEN,TH);KUN15,TGN15,26..(DCB,SCB,XTR)..(GCC,PKN,TH);GGN15 |
66414-0K010 |
— | ||
|
66415A
|
66415A
66415-0K010
Spacer, Side Rail, Rear No.2 Rh
[08.2004 - 10.2007] GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
66415-0K010 |
— | ||
| replacement | |||||
|
66415A
|
66415A
66415-0K011
Spacer, Side Rail, Rear No.2 Rh
[08.2004 - 10.2007] GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
66415-0K011 |
— | ||
|
66415A
|
66415A
66415-0K011
Spacer, Side Rail, Rear No.2 Rh
[11.2007 - 08.2008] GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
66415-0K011 |
— | ||
|
66416
|
66416
66416-0K040
Spacer, Side Rail, Rear No.3 Rh
[08.2004 - 08.2008] GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
66416-0K040 |
— | ||
|
66423
|
66423
66423-0K010
Spacer, Side Rail, Front Lh
[08.2004 - 01.2012] KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..( DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,S CB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5F |
66423-0K010 |
— | ||
|
66426B
|
66426B
66426-0K040
Spacer, Side Rail, Rear No.3 Lh
[08.2004 - 08.2008] GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
66426-0K040 |
— | ||
