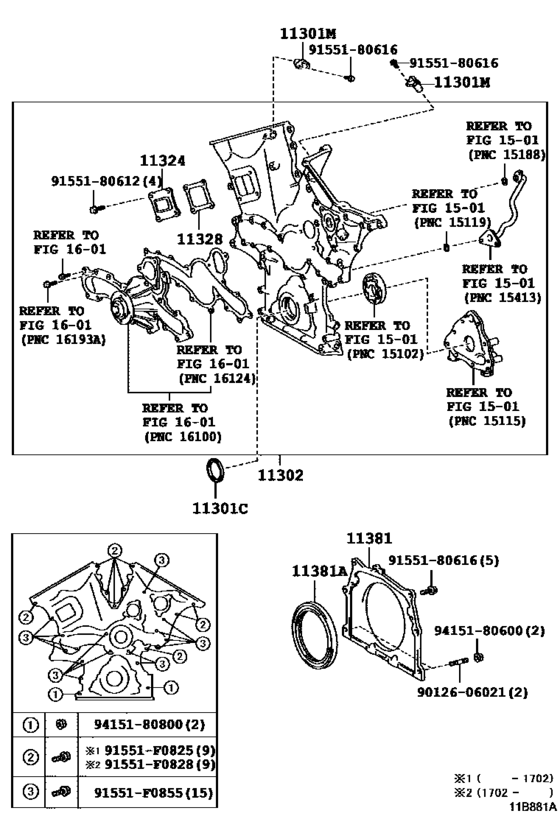

Timing Gear Cover & Rear End Plate ([07.2011 - ] (1107- )1GRFE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2013
- Sales region
- General
- Frame
- GGN15
- grade
- SR
- ENGINE
- 1GRFE
- DESTINATION
- ARL
- DECK
- SD
- CAB
- XTR
- Model
- HILUX
- From
- 07.2011
- To
- 08.2013
- Gear Shift Type
- 5FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301C
|
11301C
90311-42048 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[07.2011 -] 1GRFE..GGN15,25,35 |
90311-42048 |
from US $5.85 |
||
|
11301M
|
11301M
90919-05060 Sensor, Cam Position[07.2011 -] 1GRFE..GGN15,25,35 |
90919-05060 |
from US $69.38 |
||
|
11302
|
11302
11310-31013
Cover Sub-Assy, Timing Chain Or Belt
[07.2011 - 08.2015] 1GRFE..GGN15,25,35 |
11310-31013 |
— | ||
| replacement | |||||
|
11302
|
11302
11310-31014 Cover Sub-Assy, Timing Chain Or Belt[07.2011 - 08.2015] 1GRFE..GGN15,25,35 |
11310-31014 |
from US $527.28 |
||
|
11324
|
11324
11324-31020 Plate, Timing Chain Cover[07.2011 -] 1GRFE..GGN15,25,35 |
11324-31020 |
from US $6.24 |
||
|
11328
|
11328
11328-31030 Gasket, Timing Gear Or Chain Cover[07.2011 -] 1GRFE..GGN15,25,35 |
11328-31030 |
from US $7.17 |
||
|
11381
|
11381
11381-31010 Retainer, Engine Rear Oil Seal[07.2011 -] 1GRFE..GGN15,25,35 |
11381-31010 |
from US $31.98 |
||
|
11381A
|
11381A
90311-99010 Seal, Engine Rear Oil[07.2011 -] 1GRFE..GGN15,25,35 |
90311-99010 |
from US $27.72 |
||
| replacement | |||||
|
11381A
|
11381A
90311-A0006 Seal, Engine Rear Oil[07.2011 -] 1GRFE..GGN15,25,35 |
90311-A0006 |
US $112.50 |
||
|
91551F0825
|
91551F0825
91551-F0825 BOLT FLANGE |
91551-F0825 |
US $1.43 |
||
|
91551F0828
|
91551F0828
91551-F0828 BOLT FLANGE |
91551-F0828 |
US $1.43 |
||
|
91551F0855
|
91551F0855
91551-F0855 Bolt(For Cylinder Head Set Sub) |
91551-F0855 |
from US $0.94 |
||
|
9012606021
|
9012606021
90126-06021 Bolt, Stud(For Oil Strainer) |
90126-06021 |
US $1.43 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.64 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
