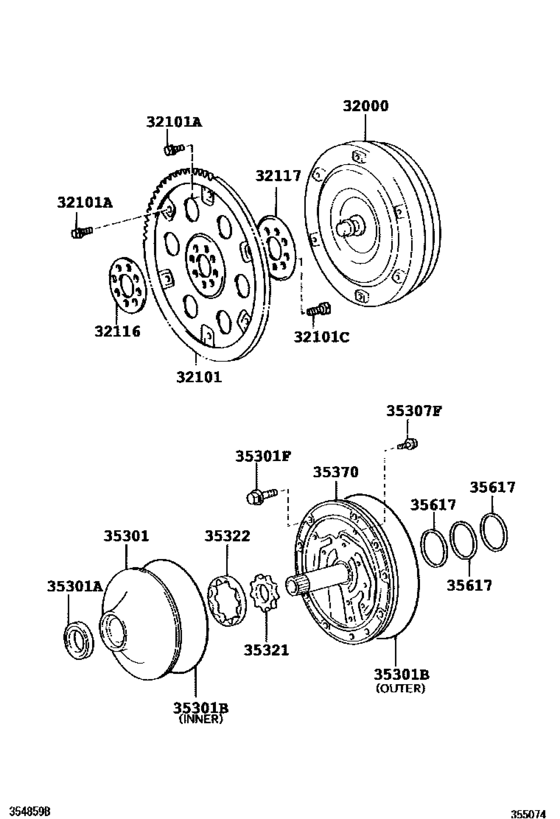

Torque Converter, Front Oil Pump & Chain (Atm) ([02.2005 - ] A750E,A750F (0502- )5FC) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- GGN15
- grade
- SR
- ENGINE
- 1GRFE
- DESTINATION
- ARL
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 02.2005
- To
- 07.2011
- Gear Shift Type
- 5FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-71020 Converter Assy, Torque[02.2005 - 12.2008] GGN15,25..5FC |
32000-71020 |
from US $1,504.58 |
||
|
32101
|
32101
32101-60060 Gear Sub-Assy, Drive Plate & Ring[02.2005 - 12.2008] GGN15,25..5FC |
32101-60060 |
from US $180.71 |
||
|
32101A
|
32101A
90119-09026 Bolt(For Drive Plate & Torque Converter Setting)[01.2005 - 12.2008] TGN16..XTR..TH;GGN15,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,PHL,SA,TH) *9-1.25PX12.8-9,GREEN OR BLACK |
90119-09026 |
from US $0.84 |
||
|
32101A
|
32101A
90119-09027 Bolt(For Drive Plate & Torque Converter Setting)[01.2005 - 12.2008] TGN16..XTR..TH;GGN15,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,PHL,SA,TH) *9-1.25PX12.8-8.8,YELLOW OR SILVER |
90119-09027 |
from US $0.78 |
||
|
32101C
|
32101C
90105-10543 Bolt, Hexagon(For Drive Plate Setting)[02.2005 - 12.2008] GGN15,25..5FC *10-1.25PX22-15 |
90105-10543 |
US $0.79 |
||
|
32116
|
32116
32116-60050 Spacer, Drive Plate, Front[02.2005 - 12.2008] GGN15,25..5FC |
32116-60050 |
from US $27.30 |
||
|
32117
|
32117
32117-60060 Spacer, Drive Plate, Rear[02.2005 - 12.2008] GGN15,25..5FC |
32117-60060 |
US $12.67 |
||
|
35301
|
35301
35301-60030 Body Sub-Assy, Front Oil Pump[02.2005 - 12.2008] GGN15,25..5FC |
35301-60030 |
from US $169.48 |
||
|
35301A
|
35301A
90311-38083 Seal, Oil (For Front Oil Pump)[02.2005 - 12.2008] GGN15,25..5FC |
90311-38083 |
from US $5.20 |
||
|
35301B
|
35301B
90301-99139 Ring, O (For Front Oil Pump Body)[02.2005 - 12.2008] GGN15,25..5FC OUTER |
90301-99139 |
from US $5.52 |
||
|
35301B
|
35301B
90301-99148 Ring, O (For Front Oil Pump Body)[02.2005 - 12.2008] GGN15,25..5FC INNER |
90301-99148 |
from US $2.75 |
||
|
35301F
|
35301F
90105-08451 Bolt (For Front Oil Pump Setting)[10.2006 - 12.2008] GGN15,25..5FC *8-1.25PX40-30 |
90105-08451 |
US $0.79 |
||
|
35301F
|
35301F
91511-K0840 Bolt(For Crankshaft Bearing Cap Set)[02.2005 - 10.2006] GGN15,25..5FC *8-1.25PX40-30 |
91511-K0840 |
US $3.05 |
||
|
35307F
|
35307F
90148-60079 Bolt (For Stator Shaft)[02.2005 - 08.2008] GGN15,25..5FC..ARL |
90148-60079 |
from US $0.52 |
||
|
35321
|
35321
35321-50010 Gear, Front Oil Pump Drive[02.2005 - 12.2008] GGN15,25..5FC T=10.736-10.742 |
35321-50010 |
US $38.44 |
||
|
35321
|
35321
35321-50020 Gear, Front Oil Pump Drive[02.2005 - 12.2008] GGN15,25..5FC T=10.743-10.749 |
35321-50020 |
US $39.60 |
||
|
35321
|
35321
35321-50030 Gear, Front Oil Pump Drive[02.2005 - 12.2008] GGN15,25..5FC T=10.750-10.756 |
35321-50030 |
US $39.60 |
||
|
35321
|
35321
35321-50040 Gear, Front Oil Pump Drive[02.2005 - 12.2008] GGN15,25..5FC T=10.757-10.763 |
35321-50040 |
from US $39.60 |
||
|
35321
|
35321
35321-50050 Gear, Front Oil Pump Drive[02.2005 - 12.2008] GGN15,25..5FC T=10.764-10.770 |
35321-50050 |
US $38.44 |
||
|
35321
|
35321
35321-50060 Gear, Front Oil Pump Drive[02.2005 - 12.2008] GGN15,25..5FC T=10.771-10.777 |
35321-50060 |
US $38.44 |
||
|
35321
|
35321
35321-50070 Gear, Front Oil Pump Drive[02.2005 - 12.2008] GGN15,25..5FC T=10.778-10.784 |
35321-50070 |
US $38.44 |
||
|
35322
|
35322
35322-50010 Gear, Front Oil Pump Driven[02.2005 - 12.2008] GGN15,25..5FC T=10.736-10.742 |
35322-50010 |
from US $32.67 |
||
|
35322
|
35322
35322-50020 Gear, Front Oil Pump Driven[02.2005 - 12.2008] GGN15,25..5FC T=10.743-10.749 |
35322-50020 |
US $33.63 |
||
|
35322
|
35322
35322-50030 Gear, Front Oil Pump Driven[02.2005 - 12.2008] GGN15,25..5FC T=10.750-10.756 |
35322-50030 |
US $33.63 |
||
|
35322
|
35322
35322-50040 Gear, Front Oil Pump Driven[02.2005 - 12.2008] GGN15,25..5FC T=10.757-10.763 |
35322-50040 |
US $33.63 |
||
|
35322
|
35322
35322-50050 Gear, Front Oil Pump Driven[02.2005 - 12.2008] GGN15,25..5FC T=10.764-10.770 |
35322-50050 |
US $32.67 |
||
|
35322
|
35322
35322-50060 Gear, Front Oil Pump Driven[02.2005 - 12.2008] GGN15,25..5FC T=10.771-10.777 |
35322-50060 |
US $33.63 |
||
|
35322
|
35322
35322-50070 Gear, Front Oil Pump Driven[02.2005 - 12.2008] GGN15,25..5FC T=10.778-10.784 |
35322-50070 |
US $33.63 |
||
|
35370
|
35370
35370-50030 Shaft Assy, Stator[02.2005 - 12.2008] GGN15,25..5FC |
35370-50030 |
from US $195.69 |
||
|
35617
|
35617
35617-50030 Ring, Clutch Drum Oil Seal[09.2007 - 12.2008] GGN15,25..5FC |
35617-50030 |
from US $4.02 |
||
|
35617
|
35617
35617-60020 Ring, Clutch Drum Oil Seal[02.2005 - 09.2007] GGN15,25..5FC |
35617-60020 |
US $6.64 |
