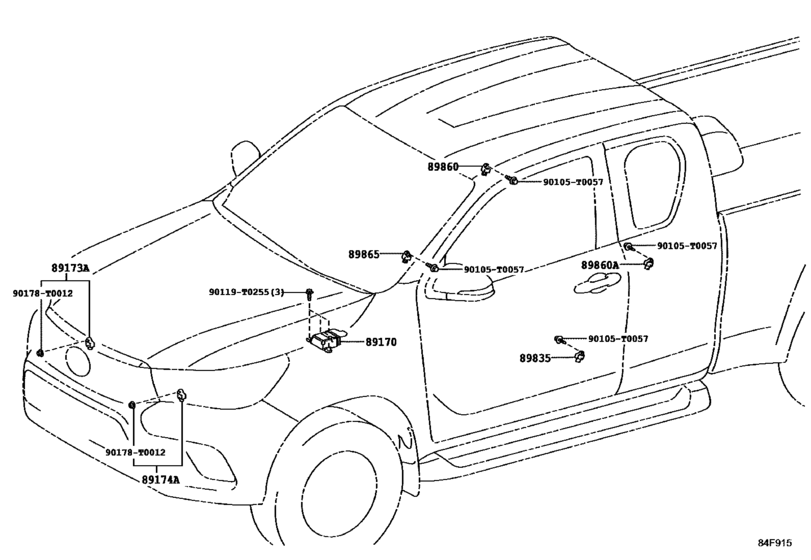

Air Bag ([05.2015 - ] (1505- )SAXTR,THXTR) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GUN135
- ENGINE
- 2GDFTV
- TRANSMISSION
- ATM
- DESTINATION
- TH
- CAB
- THXTR
- Model
- HILUX
- From
- 06.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- Hilux
- Model Mark
- M
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89170
|
89170
89170-0KB30
Sensor Assy, Air Bag
[05.2015 -] GUN126..6F..(H,M)..(PH,TH);GUN125,13#,TGN136..(H,L,M,S)..(MA,PH,TH); KUN126..RHD..6F..M..GEN BRUNEI SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&REAR HEADREST-WITH (RH/LH/CENTER); KUN126..5FC..S..GEN CS AMERICA SPEC&POWER DOOR LOCK |
89170-0KB30 |
— | ||
|
89170
|
89170
89170-0KB50
Sensor Assy, Air Bag
[05.2015 -] GUN126..THDCB..M..LA;TGN136..THDCB..S..LA; KUN126..RHD..M..GEN BRUNEI SPEC&VEHICLE STABILITY CONT-W(*HSAC & TRAILER SWAY CONTROL)&POWER DOOR LOCK -WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER); KUN126..RHD..M..GEN BRUNEI |
89170-0KB50 |
— | ||
|
89170
|
89170
89170-0KD30
Sensor Assy, Air Bag
[06.2015 -] KUN125..THXTR..(L,S)..GEN CS AMERICA SPEC&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN); KUN125..THXTR..M ASEAN GENERAL SPEC&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN); GUN125,126,13#,KUN125,TGN136..THXTR..(IDN,TH) SRS AIR BAG-WITH(DRIV |
89170-0KD30 |
— | ||
|
89170
|
89170
89170-0KD40
Sensor Assy, Air Bag
[06.2015 -] KUN125..THXTR..(L,S)..GEN CS AMERICA SPEC&VEHICLE STABILITY CONT-W(*HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG -WITH(DRIVER&PASSENGER&SIDE&CURTAIN); KUN125..THXTR..M ASEAN GENERAL SPEC&VEHICLE STABILITY CONT-W(*HSAC & TRAILER SWAY CONTROL)&SRS A |
89170-0KD40 |
— | ||
|
89173A
|
89173A
89173-09B20 Sensor, Air Bag, Front Rh[05.2015 -] GUN122..RHD;KUN122..LHD..THSCB..S;KUN122..THSCB..(L,M,X);GUN122..LHD..(THDCB,THSCB );GUN126,KUN112..(H,L,X)..(GCC,IDN,VN);KUN122..(PKNSC,SADCB,SASCB,THDCB,THXTR)..(L ,M,S,X);GGN12#,135,GUN112,123,125,126,13#,KUN125,126,13#,LAN125,TGN11#,12#,13 |
89173-09B20 |
from US $103.88 |
||
|
89174A
|
89174A
89173-09B20 Sensor, Air Bag, Front Rh[05.2015 -] GUN122..RHD;KUN122..LHD..THSCB..S;KUN122..THSCB..(L,M,X);GUN122..LHD..(THDCB,THSCB );GUN126,KUN112..(H,L,X)..(GCC,IDN,VN);KUN122..(PKNSC,SADCB,SASCB,THDCB,THXTR)..(L ,M,S,X);GGN12#,135,GUN112,123,125,126,13#,KUN125,126,13#,LAN125,TGN11#,12#,13 |
89173-09B20 |
from US $103.88 |
||
|
89835
|
89835
89831-0K040
Sensor, Door Side Air Bag, Lh
[05.2015 -] GUN126..6FC..(PH,TH,VN);GUN125,KUN125,126..(SADCB,SAXTR,THDCB)..M..(IDN,SA);GUN125 ,126..(AGTDC,THDCB,THSCB,THXTR)..(H,X)..(ARL,BZAGT);GGN12#,135,GUN122,123,126,136, TGN121..RHD..(MADCB,SADCB,SAXTR,THDCB,THSCB,THXTR)..(ARL,MA,SA); KUN122..RHD. |
89831-0K040 |
— | ||
|
89860
|
89860
89831-0K050
Sensor Assy, Side Air Bag, Rh
[05.2015 -] GUN126..6FC..(PH,TH,VN);GUN125,KUN125..M..(IDN,SA);GUN122,125,126,TGN121..(AGTDC,T HDCB,THXTR)..(H,X)..(ARL,BZAGT);GGN12#,135,GUN123,126,136,KUN126..(MADCB,SADCB,SAX TR,THDCB,THXTR)..(ARL,MA,SA); KUN122..RHD..X..GEN;KUN126..LHD..H..GEN;GUN125, |
89831-0K050 |
— | ||
|
89860A
|
89860A
89831-0K050
Sensor Assy, Side Air Bag, Rh
[05.2015 -] GUN126..6FC..(PH,TH,VN);GUN125,KUN125..M..(IDN,SA);GUN122,125,126,TGN121..(AGTDC,T HDCB,THXTR)..(H,X)..(ARL,BZAGT);GGN12#,135,GUN123,126,136,KUN126..(MADCB,SADCB,SAX TR,THDCB,THXTR)..(ARL,MA,SA); KUN122..RHD..X..GEN;KUN126..LHD..H..GEN;GUN125, |
89831-0K050 |
— | ||
|
89865
|
89865
89831-0K040
Sensor, Door Side Air Bag, Lh
[05.2015 -] GUN126..6FC..(PH,TH,VN);GUN125,KUN125,126..(SADCB,SAXTR,THDCB)..M..(IDN,SA);GUN125 ,126..(AGTDC,THDCB,THSCB,THXTR)..(H,X)..(ARL,BZAGT);GGN12#,135,GUN122,123,126,136, TGN121..RHD..(MADCB,SADCB,SAXTR,THDCB,THSCB,THXTR)..(ARL,MA,SA); KUN122..RHD. |
89831-0K040 |
— | ||
|
90105T0057
|
90105T0057
90105-T0057
New Genuine Part
|
90105-T0057 |
— | ||
|
90119T0255
|
90119T0255
90119-T0255
New Genuine Part
|
90119-T0255 |
— | ||
|
90178T0012
|
90178T0012
90178-T0012
Nut (For Rear Wiper Arm Setting)
|
90178-T0012 |
— |
