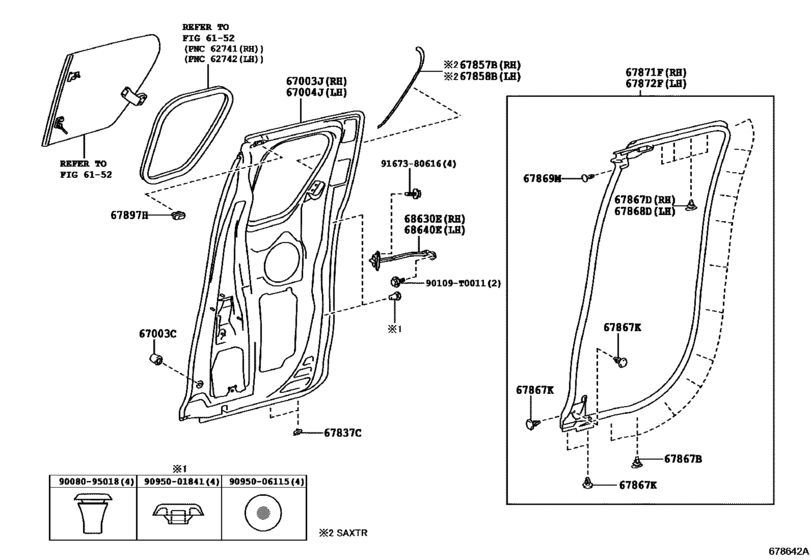

Rear Door Panel & Glass ([06.2015 - ] DOOR PANEL (1506- )SAXTR,THXTR) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GUN135
- ENGINE
- 2GDFTV
- TRANSMISSION
- ATM
- DESTINATION
- TH
- CAB
- THXTR
- Model
- HILUX
- From
- 06.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- Hilux
- Model Mark
- S
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003C
|
67003C
90541-09131 Cushion, Front Door Panel[05.2015 -] GUN126..H..VN;KUN122..(SADCB,THDCB,THXTR)..(L,M,S,X);GGN12#,135,GUN122,123,125,136 ,KUN125,136,LAN125,TGN120,121,126..AGTDC,MADCB,SADCB,SAXTR,THDCB,THXTR;GUN126,135, KUN126,135,TGN128,13#..(AGTDC,MADCB,PKNDC,SADCB,SAXTR,THDCB,THXTR)..(ARL,BZAG |
90541-09131 |
from US $1.79 |
||
|
67003J
|
67003J
67003-KK020
Panel Sub-Assy, Access Panel, Rh
[06.2015 - 11.2018] GUN12#,13#,KUN12#,TGN121,136..SAXTR,THXTR |
67003-KK020 |
— | ||
|
67004J
|
67004J
67004-KK020
Panel Sub-Assy, Access Panel, Lh
[06.2015 - 11.2018] GUN12#,13#,KUN12#,TGN121,136..SAXTR,THXTR |
67004-KK020 |
— | ||
| replacement | |||||
|
67004J
|
67004J
67004-KK021
Panel Sub-Assy, Access Panel, Lh
[06.2015 - 11.2018] GUN12#,13#,KUN12#,TGN121,136..SAXTR,THXTR |
67004-KK021 |
— | ||
|
67837C
|
67837C
67837-0K090 Seal, Front Door Dust Proof[06.2015 - 08.2016] GUN12#,13#,KUN122,125,TGN121,136..THXTR |
67837-0K090 |
US $0.76 |
||
|
67837C
|
67837C
67837-0K091 Seal, Front Door Dust Proof[09.2016 - 03.2017] GUN12#,13#,KUN122,125,TGN121,136..THXTR |
67837-0K091 |
US $1.43 |
||
|
67837C
|
67837C
67837-0K092 Seal, Front Door Dust Proof[04.2017 -] GUN12#,13#,KUN122,125,TGN121,136..THXTR |
67837-0K092 |
from US $1.13 |
||
|
67867B
|
67867B
67867-12150 Clip(For Hood Air Intake Duct Seal)[06.2015 -] GUN12#,13#,KUN12#,TGN121,136..SAXTR,THXTR |
67867-12150 |
from US $1.79 |
||
|
67867D
|
67867D
67867-52010 Retainer(For Front Door Weatherstrip)[06.2015 -] GUN12#,13#,KUN12#,TGN121,136..SAXTR,THXTR |
67867-52010 |
from US $0.18 |
||
|
67867K
|
67867K
67869-26050 Clip, Door Weatherstrip[06.2015 -] GUN12#,13#,KUN12#,TGN121,136..SAXTR,THXTR |
67869-26050 |
US $1.79 |
||
|
67868D
|
67868D
67867-52010 Retainer(For Front Door Weatherstrip)[06.2015 -] GUN12#,13#,KUN12#,TGN121,136..SAXTR,THXTR |
67867-52010 |
from US $0.18 |
||
|
67869M
|
67869M
67869-20030 Clip, Door Weatherstrip(For Front Door)[06.2015 -] GUN12#,13#,KUN12#,TGN121,136..SAXTR,THXTR |
67869-20030 |
from US $1.29 |
||
|
67871F
|
67871F
67871-0K090
Weatherstrip, Access Panel, Rh
[06.2015 -] GUN12#,13#,KUN12#,TGN121,136..SAXTR,THXTR |
67871-0K090 |
— | ||
|
67872F
|
67872F
67872-0K090
Weatherstrip, Access Panel, Lh
[06.2015 -] GUN12#,13#,KUN12#,TGN121,136..SAXTR,THXTR |
67872-0K090 |
— | ||
|
67897H
|
67897H
67897-0K020
Cushion, Rear Door
[06.2015 -] GUN12#,13#,KUN12#,TGN121,136..SAXTR,THXTR |
67897-0K020 |
— | ||
|
68630E
|
68630E
68640-0K100
Check Assy, Access Panel, Rh
[06.2015 -] GUN12#,13#,KUN12#,TGN121,136..SAXTR,THXTR |
68640-0K100 |
— | ||
|
68640E
|
68640E
68640-0K100
Check Assy, Access Panel, Rh
[06.2015 -] GUN12#,13#,KUN12#,TGN121,136..SAXTR,THXTR |
68640-0K100 |
— | ||
|
90109T0011
|
90109T0011
90109-T0011
BOLT
|
90109-T0011 |
— | ||
|
9008095018
|
9008095018
90080-95018 New Genuine Part |
90080-95018 |
US $1.31 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $1.97 |
||
|
9095006115
|
9095006115
90950-06115 COVER HOLE |
90950-06115 |
from US $0.68 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
