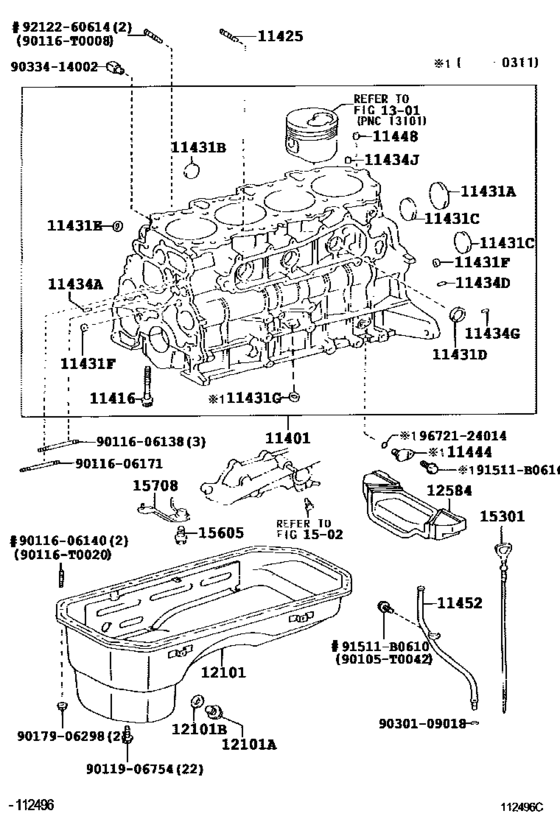

Cylinder Block ([08.2002 - ] (0208- )1KDFTV) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- KDN166
- grade
- SR
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- TH
- CAB
- XTR
- Model
- HILUX
- From
- 08.2002
- To
- 08.2004
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-09390
Block Sub-Assy, Cylinder
[01.2004 - 11.2004] 1KDFTV..KDN151,166 |
11401-09390 |
— | ||
|
11401
|
11401
11401-39555
Block Sub-Assy, Cylinder
[09.2002 - 01.2004] 1KDFTV..KDN151,166 |
11401-39555 |
— | ||
| replacement | |||||
|
11401
|
11401
11401-39785
Block Sub-Assy, Cylinder
[09.2002 - 01.2004] 1KDFTV..KDN151,166 |
11401-39785 |
— | ||
|
11416
|
11416
90910-02113 Bolt(For Crankshaft Bearing Cap Set)[10.2001 - 04.2005] 1KZTE..KZN165..SA;1KZTE..KZN165..DCB..IV3;1K#,2KDFTV..KDN145,150,151,16#,190,KZN19 0..(DCB,SCB,XTR)..SR |
90910-02113 |
from US $17.56 |
||
|
11425
|
11425
90116-06171 Bolt, Stud(For Oil Filter)[09.2001 - 04.2005] 1K#,2KDFTV..KDN145,15#,165,190,KZN165;1K#..KDN166,KZN190..(DCB,SCB,XTR)..SR |
90116-06171 |
US $1.79 |
||
|
11431A
|
11431A
96411-64500 Plug, Tight[10.2001 - 08.2004] 1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190..CBU |
96411-64500 |
from US $4.02 |
||
|
11431B
|
11431B
96411-63500 Plug, Tight[10.2001 - 09.2004] 1KDFTV,2KDFTV..KDN145,150,151,166;2KDFTV..KDN165,190..(DCB,XTR)..TH |
96411-63500 |
from US $3.58 |
||
|
11431C
|
11431C
96411-64000 Plug, Tight, No.2[10.2001 - 04.2005] 1KZTE..KZN165..SA;1KZTE..KZN165..DCB..IV3;1K#,2KDFTV..KDN145,150,151,16#,190,KZN19 0..(DCB,SCB,XTR)..SR |
96411-64000 |
from US $4.12 |
||
|
11431D
|
11431D
90331-35004 Plug, Tight, No.4(For Cylinder Block)[10.2001 - 04.2005] 1KZTE..KZN165..SA;1KZTE..KZN165..DCB..IV3;1K#,2KDFTV..KDN145,150,151,16#,190,KZN19 0..(DCB,SCB,XTR)..SR |
90331-35004 |
US $4.19 |
||
|
11431E
|
11431E
96411-62000 Plug, Tight[10.2001 - 04.2005] 1KZTE..KZN165..SA;1KZTE..KZN165..DCB..IV3;1K#,2KDFTV..KDN145,150,151,16#,190,KZN19 0..(DCB,SCB,XTR)..SR |
96411-62000 |
from US $2.97 |
||
|
11431F
|
11431F
96411-61800 Tight Plug(For Oil Seal Retainer)[10.2001 - 04.2005] 1KZTE..KZN165..SA;1KZTE..KZN165..DCB..IV3;1K#,2KDFTV..KDN145,150,151,16#,190,KZN19 0..(DCB,SCB,XTR)..SR |
96411-61800 |
US $2.15 |
||
|
11431G
|
11431G
90331-14006 Plug, Tight, No.1[09.2001 - 11.2003] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
90331-14006 |
US $0.35 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[09.2001 - 03.2003] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
11434A
|
11434A
90250-T0007
Pin, Straight(For Timing Gear Case)
[03.2003 - 03.2005] 1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190 L=18,OD=8,(L) |
90250-T0007 |
— | ||
|
11434D
|
11434D
90250-06068 Pin, Straight[09.2001 - 03.2003] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU L=11,OD=6 |
90250-06068 |
from US $0.99 |
||
|
11434D
|
11434D
90250-T0012
Pin, Straight(For Engine Rear Oil Seal)
[03.2003 - 03.2005] 1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190 L=11,OD=6,(L) |
90250-T0012 |
— | ||
|
11434G
|
11434G
90250-10192 Pin, Straight(For Timing Gear Cover Set)[09.2001 - 03.2003] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
90250-10192 |
from US $0.99 |
||
|
11434G
|
11434G
90250-T0008
Pin, Straight(For End Plate)
[03.2003 - 03.2005] 1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190 (L) |
90250-T0008 |
— | ||
|
11434J
|
11434J
90253-15016 Pin, Straight(For End Plate)[09.2001 - 03.2003] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
90253-15016 |
from US $1.37 |
||
|
11434J
|
11434J
90253-T0002
Pin, Ring (For Cylinder Head Set)
[03.2003 - 03.2005] 1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190 (L) |
90253-T0002 |
— | ||
|
11444
|
11444
11444-67020 Plug, Hole[08.2002 - 11.2003] 1KDFTV..KDN151,166 |
11444-67020 |
from US $3.71 |
||
|
11448
|
11448
11448-0L010 Orifice, Cylinder Block OilCYLINDER BLOCK OIL [09.2002 - 03.2005] 1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190 (L) |
11448-0L010 |
US $0.60 |
||
|
11448
|
11448
11448-67010 Orifice, Cylinder Block Oil[09.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
11448-67010 |
from US $1.89 |
||
|
11452
|
11452
11452-30050 Guide, Oil Level GageOIL LEVEL GAGE [08.2002 - 03.2005] 1KDFTV..KDN166..DCB,XTR;1KDFTV,2KDFTV..KDN145,15#,165,190 |
11452-30050 |
US $32.61 |
||
|
12101
|
12101
12101-0L060
Pan Sub-Assy, Oil
[03.2003 - 03.2005] 1KDFTV,2KDFTV..KDN16#,190 (L) |
12101-0L060 |
— | ||
|
12101
|
12101
12101-67070
Pan Sub-Assy, Oil
[10.2001 - 03.2003] 1KDFTV,2KDFTV..KDN16#,190 |
12101-67070 |
— | ||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[09.2001 - 04.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[09.2001 - 04.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
90341-T0004 |
US $3.59 |
||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[04.2004 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90080-43030 Gasket(For Oil Pan Drain Plug)[04.2004 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
90080-43030 |
US $0.59 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[09.2001 - 04.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
90430-12031 |
from US $0.84 |
||
|
12584
|
12584
12584-67020 Insulator, Cylinder Brock, No.4[09.2001 - 03.2005] 1K#,2KDFTV..KDN145,150,151,16#,190,KZN165..ARL,MA,TH |
12584-67020 |
US $84.91 |
||
|
15301
|
15301
15301-0L060
Gage Sub-Assy, Oil Level
[04.2004 - 05.2004] 1KDFTV..KDN151,166 (L) |
15301-0L060 |
— | ||
|
15301
|
15301
15301-30060 Gage Sub-Assy, Oil Level[08.2002 - 04.2004] 1KDFTV..KDN151,166 |
15301-30060 |
US $16.16 |
||
|
15605
|
15605
15605-0L010
Valve Sub-Assy, Oil Check
[05.2004 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
15605-0L010 |
— | ||
|
15605
|
15605
15605-17030 Valve Sub-Assy, Oil Check[10.2001 - 05.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
15605-17030 |
from US $6.32 |
||
|
15708
|
15708
15708-0L010
Nozzle Sub-Assy, Oil, No.1
[06.2004 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
15708-0L010 |
— | ||
|
15708
|
15708
15708-30010 Nozzle Sub-Assy, Oil, No.1[09.2001 - 07.2003] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 |
15708-30010 |
US $18.93 |
||
| replacement | |||||
|
15708
|
15708
15708-30011 Nozzle Sub-Assy, Oil, No.1[09.2001 - 07.2003] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 |
15708-30011 |
from US $9.50 |
||
|
15708
|
15708
15708-30011 Nozzle Sub-Assy, Oil, No.1[07.2003 - 06.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
15708-30011 |
from US $9.50 |
||
|
90105T0042
|
90105T0042
90105-T0042
New Genuine Part
|
90105-T0042 |
— | ||
| replacement | |||||
|
90105T0042
|
90105T0042
90105-T0069
New Genuine Part
|
90105-T0069 |
— | ||
|
90116T0008
|
90116T0008
90116-T0008 New Genuine Part |
90116-T0008 |
US $0.87 |
||
|
90116T0020
|
90116T0020
90116-T0020
Bolt, Stud(For Vacuum Transmitting Pipe)
|
90116-T0020 |
— | ||
|
91511B0610
|
91511B0610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.86 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
9011606138
|
9011606138
90116-06138 New Genuine Part |
90116-06138 |
US $2.15 |
||
|
9011606140
|
9011606140
90116-06140 Bolt, Stud(For Oil Strainer) |
90116-06140 |
US $1.79 |
||
|
9011606171
|
9011606171
90116-06171 Bolt, Stud(For Oil Filter) |
90116-06171 |
US $1.79 |
||
|
9011906754
|
9011906754
90119-06754 BOLT WWASHER |
90119-06754 |
US $1.61 |
||
|
9017906298
|
9017906298
90179-06298 NUT |
90179-06298 |
US $1.61 |
||
|
9030109018
|
9030109018
90301-09018 Ring, O(For Timing Gear Case, Lower) |
90301-09018 |
from US $2.18 |
||
|
9033414002
|
9033414002
90334-14002 Plug, Water Drain Cock(For Cylinder Block) |
90334-14002 |
US $2.48 |
||
|
9212260614
|
9212260614
92122-60614 Bolt, Stud(For Oil Strainer) |
92122-60614 |
US $2.87 |
||
|
9672124014
|
9672124014
96721-24014
Ring, O
|
96721-24014 |
— | ||
| replacement | |||||
|
9672124014
|
9672124014
96743-24014 Ring, O |
96743-24014 |
from US $1.09 |
||
