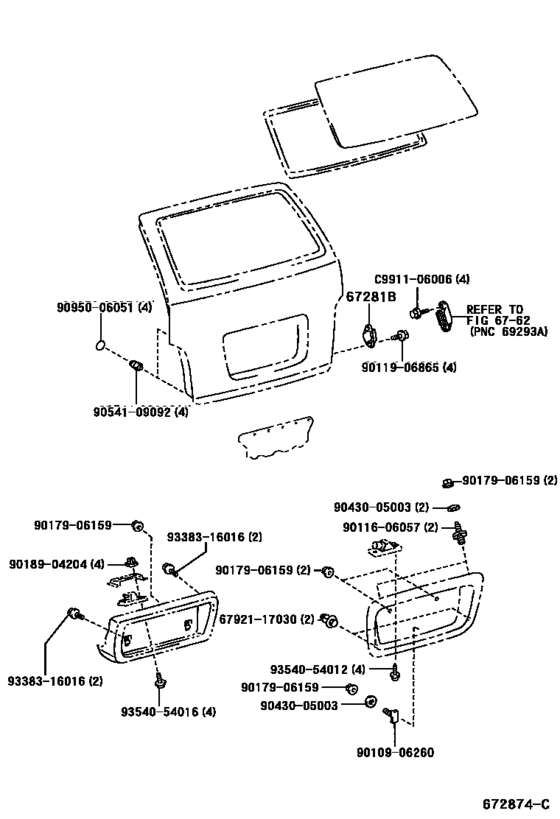

Back Door Panel & Glass ([08.2002 - ] (0208- )SRWGN) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- KDN166
- grade
- SR
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- TH
- CAB
- SRWGN
- Model
- HILUX
- From
- 08.2002
- To
- 11.2004
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67281B
|
67281B
67281-D0010 Stopper, Back Door, LowerBACK DOOR, LOWER [08.2002 - 08.2004] KDN16#,190..SRWGN RH |
67281-D0010 |
US $26.21 |
||
|
67281B
|
67281B
67282-D0010 Stopper, Back Door, LowerBACK DOOR, LOWER [08.2002 - 08.2004] KDN16#,190..SRWGN LH |
67282-D0010 |
US $26.21 |
||
|
6792117030
|
6792117030
67921-17030 Retainer, Front Door Scuff Plate |
67921-17030 |
US $2.87 |
||
|
9010906260
|
9010906260
90109-06260 New Genuine Part |
90109-06260 |
US $2.04 |
||
|
9011606057
|
9011606057
90116-06057 New Genuine Part |
90116-06057 |
US $0.52 |
||
|
9011906865
|
9011906865
90119-06865 New Genuine Part |
90119-06865 |
US $1.46 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9018904204
|
9018904204
90189-04204 New Genuine Part |
90189-04204 |
US $1.89 |
||
|
9043005003
|
9043005003
90430-05003 GASKET |
90430-05003 |
from US $0.62 |
||
|
9054109092
|
9054109092
90541-09092 Cushion(For Back Door Panel) |
90541-09092 |
from US $2.52 |
||
|
9095006051
|
9095006051
90950-06051 Protector, Rear Body, No.1 |
90950-06051 |
US $2.33 |
||
|
9338316016
|
9338316016
93383-16016 New Genuine Part |
93383-16016 |
US $1.65 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.61 |
||
|
9354054016
|
9354054016
93540-54016 SCREW |
93540-54016 |
from US $0.78 |
||
|
C991106006
|
C991106006
C9911-06006
New Genuine Part
|
C9911-06006 |
— | ||
