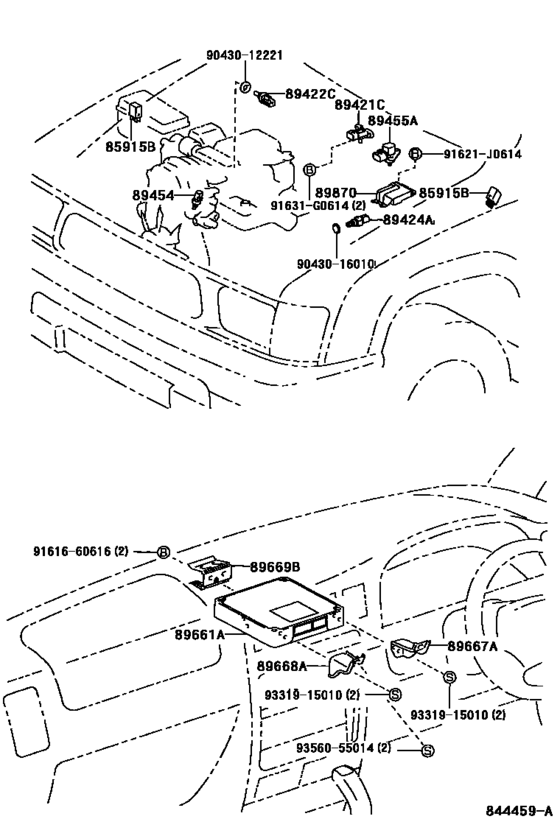

Electronic Controled Diesel (Ecd) ([10.2001 - ] (0110- )KDN145,15#,16#,190) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- KDN166
- grade
- SR
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- TH
- CAB
- DCB
- Model
- HILUX
- From
- 08.2002
- To
- 08.2004
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85915B
|
85915B
90987-02012 Relay, Ignition, No.1[10.2001 - 08.2004] KDN151,166 |
90987-02012 |
from US $26.54 |
||
|
89421C
|
89421C
89421-20210 Sensor, Turbo Pressure (For Diesel Turbo)[10.2001 - 08.2004] KDN145,15#,16#,190..TH..CBU |
89421-20210 |
from US $154.16 |
||
|
89422C
|
89422C
89422-35010 Sensor, Water Temperature (For E.f.i.)[09.2001 - 08.2004] KDN145,15#,16#,190..TH..CBU |
89422-35010 |
from US $44.58 |
||
|
89454
|
89454
89454-60010 Sensor, Fuel Temperature[09.2001 - 04.2005] KZN190..SR;KDN145,15#,16#,190,KZN165 |
89454-60010 |
from US $37.65 |
||
|
89455A
|
89455A
89455-35020 Sensor, Egr Valve Position[09.2001 - 03.2005] KDN145,15#,16#,190,KZN165..MA,TH |
89455-35020 |
US $73.58 |
||
|
89667A
|
89667A
89667-35110 Bracket, Engine Control Computer[09.2001 - 08.2004] KDN145,15#,16#,190..TH..CBU |
89667-35110 |
US $9.03 |
||
|
89668A
|
89668A
89668-35160 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [09.2001 - 08.2004] KDN145,15#,16#,190..TH..CBU |
89668-35160 |
US $8.30 |
||
|
89669B
|
89669B
89669-35070 Bracket, Engine Control Computer, No.3[09.2001 - 08.2004] KDN145,15#,16#,190..TH..CBU |
89669-35070 |
US $7.57 |
||
|
89870
|
89870
89870-35040 Driver Assy, Spill Valve ControlSPILL VALVE CONTROL [10.2001 - 08.2004] KDN145,15#,16#,190..TH..CBU |
89870-35040 |
US $835.74 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
from US $0.90 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.66 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9043016010
|
9043016010
90430-16010 Gasket, Neutral Start Switch |
90430-16010 |
US $1.12 |
||
|
9161660616
|
9161660616
91616-60616 BOLT |
91616-60616 |
US $1.61 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.64 |
