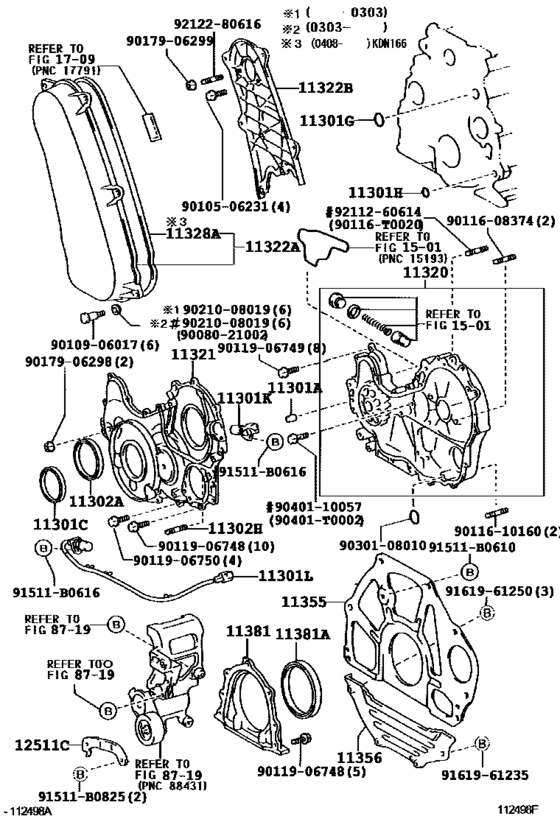

Timing Gear Cover & Rear End Plate ([08.2002 - ] (0208- )1KDFTV) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- KDN166
- grade
- SR
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- TH
- CAB
- DCB
- Model
- HILUX
- From
- 08.2002
- To
- 08.2004
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301A
|
11301A
90250-08120 Pin, Straight, No.1[09.2001 - 03.2003] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
11301A
|
11301A
90250-T0007
Pin, Straight(For Timing Gear Case)
[03.2003 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 L=18,OD=8,(L) |
90250-T0007 |
— | ||
|
11301C
|
11301C
90080-31096
Seal, Oil(For Timing Gear Case Or Timing Chain Case)
[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
90080-31096 |
— | ||
| replacement | |||||
|
11301C
|
11301C
90311-T0054 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
90311-T0054 |
US $11.93 |
||
|
11301C
|
11301C
90311-50017
Seal, Oil(For Timing Chain Or Belt Cover)
[09.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
90311-50017 |
— | ||
| replacement | |||||
|
11301C
|
11301C
90311-50051 Seal, Oil(For Crankshaft Front)[09.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
90311-50051 |
from US $10.39 |
||
|
11301G
|
11301G
90301-22007 Ring, O(For Timing Gear Case, Upper)[09.2001 - 04.2005] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 |
90301-22007 |
from US $2.52 |
||
|
11301H
|
11301H
90301-09018 Ring, O(For Timing Gear Case, Lower)[09.2001 - 04.2005] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 |
90301-09018 |
from US $2.18 |
||
|
11301K
|
11301K
90919-05052
Sensor, Crank Position
[10.2001 - 08.2004] 1KDFTV,2KDFTV..KDN145,150,151,16#,190..(DCB,XTR)..TH..CBU |
90919-05052 |
— | ||
| replacement | |||||
|
11301K
|
11301K
90919-05025 Sensor, Crank Position[10.2001 - 08.2004] 1KDFTV,2KDFTV..KDN145,150,151,16#,190..(DCB,XTR)..TH..CBU |
90919-05025 |
from US $65.02 |
||
|
11301L
|
11301L
90919-05050 Sensor, Crank Position No.2[10.2001 - 08.2004] 1KDFTV,2KDFTV..KDN145,150,151,16#,190..(DCB,XTR)..TH..CBU |
90919-05050 |
from US $65.02 |
||
|
11302A
|
11302A
90080-31098 Seal, Type T Oil(For Injection Pump)OIL(FOR TIMING CHAIN OR BELT COVER) [09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
90080-31098 |
US $18.25 |
||
|
11302A
|
11302A
90311-65003 Seal, Type T Oil(For Injection Pump)[10.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
90311-65003 |
from US $13.80 |
||
|
11302H
|
11302H
90116-08376
Bolt, Stud(For Timing Gear Cover)
[09.2001 - 04.2005] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 |
90116-08376 |
— | ||
| replacement | |||||
|
11302H
|
11302H
90116-08377 Bolt, Stud(For Timing Gear Cover)[09.2001 - 04.2005] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 |
90116-08377 |
US $1.97 |
||
|
11320
|
11320
11320-30030
Case Assy, Timing Gear
[08.2002 - 11.2004] 1KDFTV..KDN151,166 |
11320-30030 |
— | ||
| replacement | |||||
|
11320
|
11320
11320-30032 Case Assy, Timing Gear[08.2002 - 11.2004] 1KDFTV..KDN151,166 |
11320-30032 |
from US $177.26 |
||
|
11321
|
11321
11321-0L010
Case, Timing Gear
[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
11321-0L010 |
— | ||
|
11321
|
11321
11321-30020 Case, Timing Gear[10.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190 |
11321-30020 |
from US $121.06 |
||
|
11322A
|
11322A
11332-30010
Cover, Timing Belt, No.1
[10.2001 - 08.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
11332-30010 |
— | ||
| replacement | |||||
|
11322A
|
11322A
11332-30011 Cover, Timing Belt, No.1[10.2001 - 08.2004] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
11332-30011 |
from US $52.61 |
||
|
11322B
|
11322B
11322-0L010 Cover, Timing Belt, No.2TIMING BELT, NO.2 [11.2003 - 08.2004] 1KDFTV,2KDFTV..KDN145,150,151,16#,190..(DCB,XTR)..TH (L) |
11322-0L010 |
US $55.54 |
||
|
11322B
|
11322B
11322-30010 Cover, Timing Belt, No.2[10.2001 - 11.2003] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
11322-30010 |
from US $49.47 |
||
|
11355
|
11355
11355-0L010
Plate, Rear End
[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
11355-0L010 |
— | ||
|
11355
|
11355
11355-67010 Plate, Rear End[09.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
11355-67010 |
US $61.50 |
||
|
11356
|
11356
11356-30020 Plate, Rear End, No.2[10.2001 - 03.2005] 1KDFTV..KDN166..ATM;2KDFTV..KDN145,150,190 |
11356-30020 |
US $26.64 |
||
|
11381
|
11381
11381-67020 Retainer, Engine Rear Oil Seal[09.2001 - 04.2005] 1KZTE..KZN190..SR;1K#,2KDFTV..KDN145,15#,16#,190,KZN165 |
11381-67020 |
from US $35.41 |
||
|
11381A
|
11381A
90080-31100
Seal, Engine Rear Oil
[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
90080-31100 |
— | ||
| replacement | |||||
|
11381A
|
11381A
90311-T0046 Seal, Engine Rear Oil[09.2002 - 03.2005] 1KDFTV,2KDFTV..KDN145,15#,16#,190 (L) |
90311-T0046 |
US $28.76 |
||
|
11381A
|
11381A
90311-95008 Seal, Engine Rear Oil[09.2001 - 09.2002] 1KDFTV,2KDFTV..KDN145,15#,16#,190..CBU |
90311-95008 |
from US $27.72 |
||
|
12511C
|
12511C
12511-30030 Bracket, AlternatorALTERNATOR [10.2001 - 08.2004] 1KDFTV,2KDFTV..KDN145,150,151,16#,190..(DCB,XTR)..TH..CBU |
12511-30030 |
US $13.40 |
||
|
90116T0020
|
90116T0020
90116-T0020
Bolt, Stud(For Vacuum Transmitting Pipe)
|
90116-T0020 |
— | ||
|
90401T0002
|
90401T0002
90401-T0002
New Genuine Part
|
90401-T0002 |
— | ||
|
91511B0610
|
91511B0610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.86 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
91511B0825
|
91511B0825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
|
9008021002
|
9008021002
90080-21002
WASHER
|
90080-21002 |
— | ||
|
9010506231
|
9010506231
90105-06231 BOLT WASHER BASED |
90105-06231 |
US $1.97 |
||
|
9010906017
|
9010906017
90109-06017 BOLT |
90109-06017 |
from US $0.92 |
||
|
9011608374
|
9011608374
90116-08374 Bolt, Stud(For Timing Gear Cover) |
90116-08374 |
US $0.87 |
||
|
9011610160
|
9011610160
90116-10160 Bolt,stud(For Timing Gear Case) |
90116-10160 |
from US $1.42 |
||
|
9011906748
|
9011906748
90119-06748 BOLT WWASHER |
90119-06748 |
US $1.97 |
||
|
9011906749
|
9011906749
90119-06749 BOLT WWASHER |
90119-06749 |
US $1.61 |
||
|
9011906750
|
9011906750
90119-06750
New Genuine Part
|
90119-06750 |
— | ||
| replacement | |||||
|
9011906750
|
9011906750
91551-80660 BOLT FLANGE |
91551-80660 |
US $1.43 |
||
|
9017906298
|
9017906298
90179-06298 NUT |
90179-06298 |
US $1.61 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.66 |
||
|
9021008019
|
9021008019
90210-08019 WASHER |
90210-08019 |
from US $1.85 |
||
| replacement | |||||
|
9021008019
|
9021008019
90080-21002
WASHER
|
90080-21002 |
— | ||
|
9030108010
|
9030108010
90301-08010 RING |
90301-08010 |
US $3.40 |
||
|
9040110057
|
9040110057
90401-10057 BOLT UNION |
90401-10057 |
US $4.80 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.20 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9211260614
|
9211260614
92112-60614
Bolt, Stud(For Vacuum Transmitting Pipe)
|
92112-60614 |
— | ||
| replacement | |||||
|
9211260614
|
9211260614
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.66 |
||
|
9212280616
|
9212280616
92122-80616 Bolt, Stud(For Head To Cylinder Head Cover) |
92122-80616 |
US $1.43 |
||
