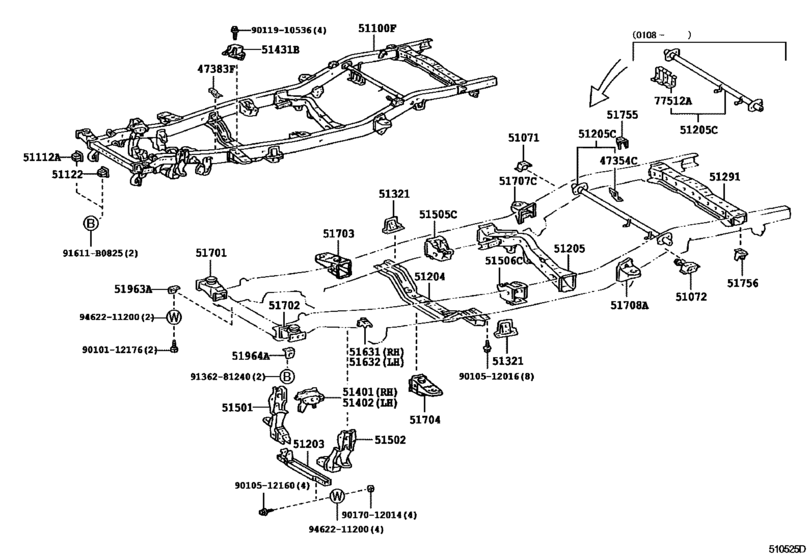

Frame ([08.1999 - ] (9908- )KDN190,LN190) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- KDN190
- grade
- SR
- ENGINE
- 2KDFTV
- TRANSMISSION
- ATM
- CAB
- DCB
- Model
- HILUX
- From
- 08.2001
- To
- 08.2005
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47383F
|
47383F
47383-35020 Bracket, Connector[08.2001 - 08.2005] KDN165,170,190 |
47383-35020 |
US $9.03 |
||
|
51071
|
51071
51741-35080
Bracket Sub-Assy, Rear Body Mounting, No.1 Rh
[08.2001 - 08.2005] KDN145,165,190..DCB |
51741-35080 |
— | ||
|
51072
|
51072
51072-35040 Bracket Sub-Assy, Rear Body Mounting, No.1 Lh[08.2001 - 08.2005] KDN165,190..DCB |
51072-35040 |
US $52.12 |
||
|
51100F
|
51100F
51001-3M120 Frame Sub-Assy[08.2001 -] KDN190 |
51001-3M120 |
US $3,538.08 |
||
|
51112A
|
51112A
51112-35070
Extension, Side Rail, Rh
[08.2001 - 08.2005] KDN190;KDN165..RHD..DCB; KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB W(*80,DRIVER SIDE & PASSENGER SIDE) |
51112-35070 |
— | ||
|
51122
|
51122
51112-35070
Extension, Side Rail, Rh
[08.2001 - 08.2005] KDN190;KDN165..RHD..DCB; KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB W(*80,DRIVER SIDE & PASSENGER SIDE) |
51112-35070 |
— | ||
|
51203
|
51203
51203-35360 Crossmember Sub-Assy, Frame, No.2FRAME, NO.2 [08.2001 -] KDN190 |
51203-35360 |
US $99.01 |
||
|
51204
|
51204
51202-35440 Crossmember Sub-Assy, Frame, No.3FRAME, NO.3 [08.2001 -] KDN190 |
51202-35440 |
US $419.33 |
||
|
51205
|
51205
51204-35720 Crossmember Sub-Assy, Frame, No.4FRAME, NO.4 [08.2001 -] KDN190 |
51204-35720 |
US $291.20 |
||
|
51205C
|
51205C
51205-35260 Crossmember Sub-Assy, Frame, No.5[08.2001 -] KDN165,170,190 |
51205-35260 |
US $364 |
||
|
51291
|
51291
51209-35180
Crossmember, Frame, Rear
[08.2001 - 11.2001] KDN145,150,165,170,190 |
51209-35180 |
— | ||
|
51291
|
51291
51209-35200
Crossmember, Frame, Rear
[11.2001 -] KDN145,150,165,170,190 |
51209-35200 |
— | ||
|
51321
|
51321
51321-35050 Bracket, Frame No.2 Crossmember, Rh[08.2001 - 08.2005] KDN165,170,190 |
51321-35050 |
US $27.81 |
||
|
51401
|
51401
51047-35080
Bracket Sub-Assy, Engine Mounting & Upper Arm, Rh
[08.2001 -] KDN165,170,190 |
51047-35080 |
— | ||
|
51402
|
51402
51048-35080
Bracket Sub-Assy, Engine Mounting & Upper Arm, Lh
[08.2001 -] KDN165,170,190 |
51048-35080 |
— | ||
|
51431B
|
51431B
51431-35100 Bracket, Engine Rear MountingENGINE REAR MOUNTING [08.2001 -] KDN190 |
51431-35100 |
US $41.64 |
||
|
51501
|
51501
51501-35120 Support Sub-Assy, Suspension Arm, Rh[08.2001 -] KDN165..RHD;KDN165,170,190..LHD..(DCB,XTR) |
51501-35120 |
US $457.18 |
||
|
51502
|
51502
51502-35120 Support Sub-Assy, Suspension Arm, Lh[08.2001 - 08.2005] KDN165..RHD;KDN165,170,190..LHD..(DCB,XTR) |
51502-35120 |
US $457.18 |
||
|
51505C
|
51505C
51505-35100 Support Sub-Assy, Anchor Arm, Rh[08.2001 -] KDN165,170,190 |
51505-35100 |
US $152.88 |
||
|
51506C
|
51506C
51506-35020 Support Sub-Assy, Anchor Arm, Lh[08.2001 -] KDN165,170,190 |
51506-35020 |
US $157.25 |
||
|
51631
|
51631
51631-35040 Stopper, Front Suspension Rebound, Rh[08.2001 -] KDN165..RHD;KDN165,170,190..LHD..(DCB,XTR) |
51631-35040 |
US $24.46 |
||
|
51632
|
51632
51631-35040 Stopper, Front Suspension Rebound, Rh[08.2001 -] KDN165..RHD;KDN165,170,190..LHD..(DCB,XTR) |
51631-35040 |
US $24.46 |
||
|
51701
|
51701
51701-35170 Bracket Sub-Assy, Cab Mounting, No.1 Rh[08.2001 -] KDN165,170,190 |
51701-35170 |
US $74.59 |
||
|
51702
|
51702
51702-35140 Bracket Sub-Assy, Cab Mounting, No.1 Lh[08.2001 -] KDN165,170,190 |
51702-35140 |
US $62.90 |
||
|
51703
|
51703
51703-35150
Bracket Sub-Assy, Cab Mounting, No.2, Rh
[08.2001 -] KDN165,190..DCB |
51703-35150 |
— | ||
|
51704
|
51704
51704-35140 Bracket Sub-Assy, Cab Mounting, No.2 Lh[08.2001 -] KDN165,190..DCB |
51704-35140 |
US $72.51 |
||
|
51707C
|
51707C
51707-35080 Bracket Sub-Assy, Cab Mounting, No.4 Rh[08.2001 -] KDN145,165,190..DCB |
51707-35080 |
US $66.04 |
||
|
51708A
|
51708A
51708-35080 Bracket Sub-Assy, Cab Mounting, No.4 Lh[08.2001 -] KDN145,165,190..DCB |
51708-35080 |
US $66.04 |
||
|
51755
|
51755
51755-35010
Bracket, Body Support, No.3 Rh
[08.2001 -] KDN145,150,165,170,190 |
51755-35010 |
— | ||
|
51756
|
51756
51755-35010
Bracket, Body Support, No.3 Rh
[08.2001 -] KDN145,150,165,170,190 |
51755-35010 |
— | ||
|
51963A
|
51963A
51963-35070 Hook, Transport, Front Rh[08.2001 -] KDN145,150,165,170,190 |
51963-35070 |
from US $11.53 |
||
|
51964A
|
51964A
51964-35050 Hook, Transport, Front Lh[08.2001 -] KDN145,150,165,170,190 |
51964-35050 |
from US $11.53 |
||
|
77512A
|
77512A
77512-35090
Bracket, Fuel Tank, Rear
[08.2001 -] KDN145,150,165,170,190 |
77512-35090 |
— | ||
|
91611B0825
|
91611B0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9010112176
|
9010112176
90101-12176 New Genuine Part |
90101-12176 |
US $4.02 |
||
|
9010512016
|
9010512016
90105-12016 New Genuine Part |
90105-12016 |
US $3.05 |
||
|
9010512160
|
9010512160
90105-12160 New Genuine Part |
90105-12160 |
US $5.42 |
||
|
9011910536
|
9011910536
90119-10536 BOLT WWASHER |
90119-10536 |
from US $1.95 |
||
|
9017012014
|
9017012014
90170-12014 New Genuine Part |
90170-12014 |
US $1.75 |
||
|
9136281240
|
9136281240
91362-81240 New Genuine Part |
91362-81240 |
US $3.49 |
||
|
9462211200
|
9462211200
94622-11200 WASHER |
94622-11200 |
US $3.58 |
