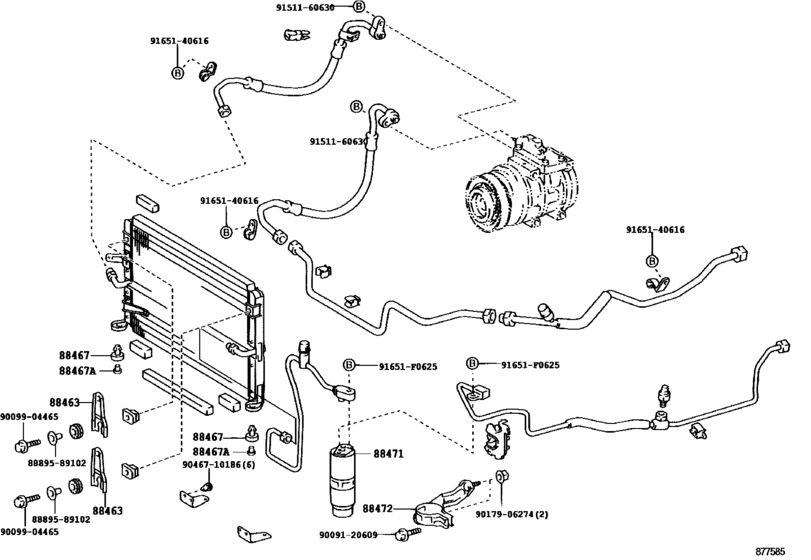

Heating & Air Conditioning - Cooler Piping ([03.2003 - ] (0303- )KDN165,190..MA) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2003 - 2005
- Sales region
- General
- Frame
- KDN190
- grade
- DLX
- ENGINE
- 2KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- MA
- CAB
- DCB
- Model
- HILUX
- From
- 03.2003
- To
- 03.2005
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88463
|
88463
88463-04100
Bracket, Cooler Condenser, No.1
[03.2003 - 03.2005] KDN165,190..MA |
88463-04100 |
— | ||
|
88467
|
88467
88467-12100 Cushion, Cooler Condenser, No.1[03.2003 - 03.2005] KDN165,190..MA |
88467-12100 |
US $4.19 |
||
|
88467A
|
88467A
88467-04070
Cushion, Cooler Condenser, No.2
[03.2003 - 03.2005] KDN165,190..MA |
88467-04070 |
— | ||
|
88471
|
88471
88471-34010 Receiver & Dryer Assy, Cooler[08.2001 -] KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL ,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148, 149..LHD..DCB..(CO,TH);KDN165,190,KZN165,LN141,146,16#,17#,19#,RZN144,154,169 |
88471-34010 |
from US $47.25 |
||
|
88472
|
88472
88472-04050
Bracket, Receiver Tank, No.1
[03.2003 - 03.2005] KDN165,190..MA |
88472-04050 |
— | ||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
8889589102
|
8889589102
88895-89102 Bush |
88895-89102 |
US $1.67 |
||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9009904465
|
9009904465
90099-04465
New Genuine Part
|
90099-04465 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046710186
|
9046710186
90467-10186 Clip(For Front Fender Apron Seal) |
90467-10186 |
from US $1.33 |
||
|
9151160630
|
9151160630
91511-60630 BOLT |
91511-60630 |
US $2.15 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
