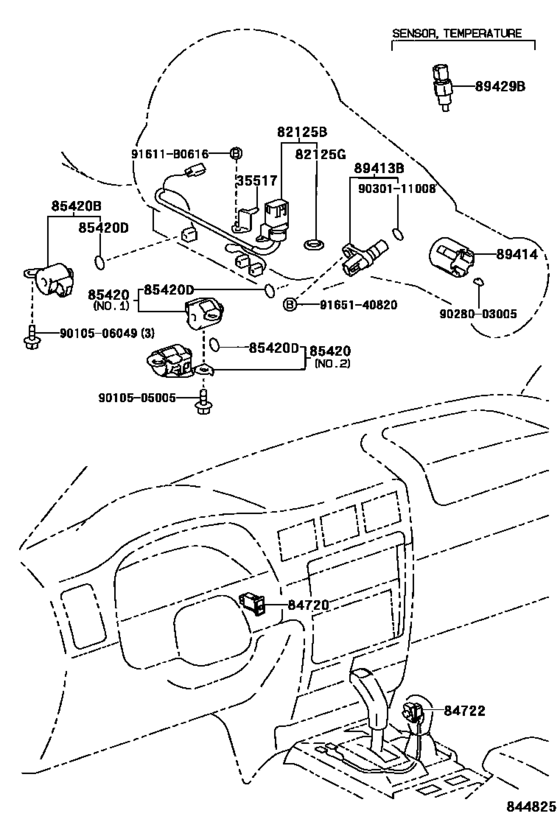

Overdrive & Electronic Controlled Transmission ([09.2001 - ] (0109- )KDN190) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2003 - 2005
- Sales region
- General
- Frame
- KDN190
- grade
- DLX
- ENGINE
- 2KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- MA
- CAB
- DCB
- Model
- HILUX
- From
- 03.2003
- To
- 03.2005
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35517
|
35517
35517-30010 Plate, Transmission Wire Lock[09.2001 - 11.2005] KDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH) |
35517-30010 |
US $4.37 |
||
|
82125B
|
82125B
82125-60310 Wire, Transmission[12.2001 - 03.2005] KDN190..MA |
82125-60310 |
US $30.93 |
||
|
82125G
|
82125G
96721-24018 Ring, O[12.2001 - 03.2005] KDN190..MA |
96721-24018 |
from US $3.78 |
||
|
84720
|
84720
84720-35070 Switch Assy, Pattern Select[12.2001 - 03.2005] KDN190..MA |
84720-35070 |
US $49.65 |
||
|
84722
|
84722
84722-35180-B0 Switch, Transmission Control[09.2001 - 03.2005] KDN190..MA MD.MOON MIST,TRIM1# |
84722-35180-B0 |
US $41.93 |
||
|
85420
|
85420
35250-30050 Solenoid Assy, Transmission[06.2002 - 11.2005] KDN190,RZN149..CO,MA,TH NO.1,AISIN |
35250-30050 |
from US $74.51 |
||
|
85420
|
85420
35250-30070 Solenoid Assy, Transmission[06.2002 - 11.2005] KDN190,RZN149..CO,MA,TH NO.2,AISIN |
35250-30070 |
from US $74.51 |
||
|
85420B
|
85420B
35250-50030 Valve, Solenoid(S4)[06.2002 - 11.2005] KDN166,190,RZN149,154,VZN167,172..ATM |
35250-50030 |
from US $214.40 |
||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[09.2001 - 11.2005] KDN190..MA;KDN166,RZN149,154,VZN167,172..ATM..(ARL,CO,TH) |
90301-06004 |
from US $2.15 |
||
|
89413B
|
89413B
89413-24010 Sensor, Speed[09.2001 - 03.2005] KDN190..MA |
89413-24010 |
from US $86.13 |
||
|
89414
|
89414
89414-22010 Rotor, Sensor[09.2001 - 03.2005] KDN190..MA |
89414-22010 |
US $21.84 |
||
|
89429B
|
89429B
89429-34010 Sensor, Temperature[12.2001 - 03.2005] KDN190..MA |
89429-34010 |
from US $40.49 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010506049
|
9010506049
90105-06049 Bolt(For Transmission Case No.2 Plate) |
90105-06049 |
US $1.25 |
||
|
9028003005
|
9028003005
90280-03005 Key, Oil Pump Drive Shaft |
90280-03005 |
US $1.05 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.90 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
