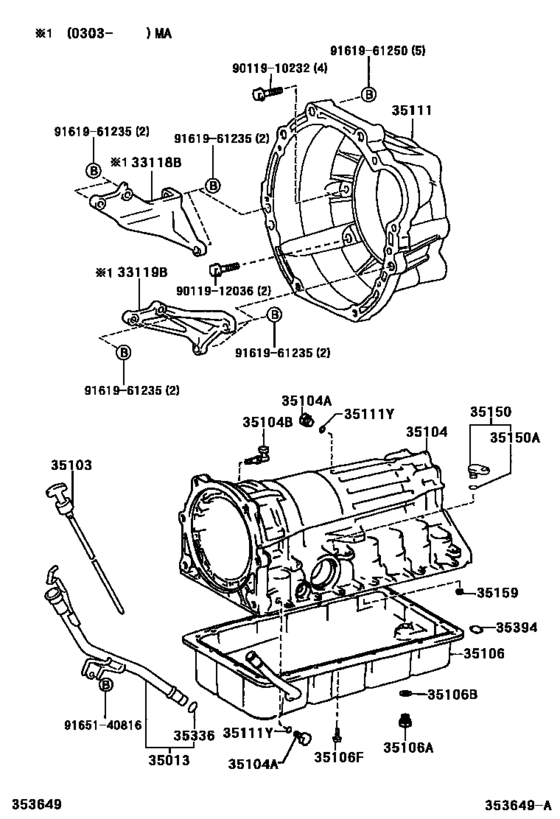

Transmission Case & Oil Pan (Atm) ([12.2001 - ] A340E (0112- )KDN190) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2003 - 2005
- Sales region
- General
- Frame
- KDN190
- grade
- DLX
- ENGINE
- 2KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- MA
- CAB
- DCB
- Model
- HILUX
- From
- 03.2003
- To
- 03.2005
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33118B
|
33118B
33118-35070 Plate, Stiffener, Rh(Mtm)[03.2003 - 03.2005] KDN190..MA |
33118-35070 |
US $63.92 |
||
|
33119B
|
33119B
33119-25070 Plate, Stiffener, Lh(Mtm)[03.2003 - 03.2005] KDN190..MA |
33119-25070 |
US $55.18 |
||
|
35013
|
35013
35013-35410 Tube Sub-Assy, Transmission Oil FillerTRANSMISSION OIL FILLER [12.2001 - 03.2005] KDN166,190..ATM |
35013-35410 |
US $27.96 |
||
|
35103
|
35103
35103-35500 Gage Sub-Assy, Transmission Oil LevelTRANSMISSION OIL LEVEL [12.2001 - 03.2005] KDN190 |
35103-35500 |
US $15.58 |
||
|
35104
|
35104
35104-30133 Case Sub-Assy, Automatic Transmission[12.2001 - 03.2005] KDN190 |
35104-30133 |
US $1,275.46 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[09.2001 - 11.2005] KDN190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH) |
90341-08001 |
from US $1.52 |
||
|
35104B
|
35104B
90930-03108 Plug, Breather, No.1 (Atm)[09.2001 - 11.2005] KDN190,RZN149,154..ATM..(ARL,CO,MA,TH) |
90930-03108 |
US $19.70 |
||
|
35106
|
35106
35106-35012
Pan Sub-Assy, Automatic Transmission Oil
[12.2001 - 03.2005] KDN166,190..ATM |
35106-35012 |
— | ||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[12.2001 - 11.2005] VZN167,172..ATM;KDN166,190,RZN149..ATM..(CO,MA,TH) |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[09.2001 - 11.2005] KDN190,RZN149,154..ATM..(ARL,CO,MA,TH) |
35178-30010 |
from US $1.77 |
||
|
35106F
|
35106F
90119-06513 Bolt (For Automatic Transmission Oil Pan)[09.2001 - 11.2005] KDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH) |
90119-06513 |
US $1.61 |
||
|
35111
|
35111
35111-35090
Housing, Automatic Transmission
[12.2001 - 03.2005] KDN166,190..ATM |
35111-35090 |
— | ||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[09.2001 - 11.2005] KDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH) |
90301-06196 |
from US $2.24 |
||
|
35150
|
35150
35150-30010 Plug Assy, Transmission Case[12.2001 - 03.2005] KDN166,190..ATM |
35150-30010 |
US $17.38 |
||
|
35150A
|
35150A
90301-09012 Ring, O (For Automatic Transmission Case Plug)[12.2001 - 03.2005] KDN166,190..ATM |
90301-09012 |
US $3.94 |
||
|
35159
|
35159
35159-30010 Gasket, Brake Drum[09.2001 - 11.2005] KDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH) |
35159-30010 |
US $13.26 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[09.2001 -] KDN166,190,RZN149,154,VZN167,172..(DCB,SCB,SRWGN,XTR)..ATM..(ARL,CO,MA,TH) |
90301-09173 |
from US $2.01 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[06.2002 - 11.2005] KDN190..SRWGN;KDN166,RZN149..ATM..(CO,TH);KDN190,VZN167,172..ATM..(ARL,MA) |
35394-30011 |
from US $5.62 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011912036
|
9011912036
90119-12036 Bolt (For Transmission Housing & Case Setting) |
90119-12036 |
US $1.89 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.20 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
