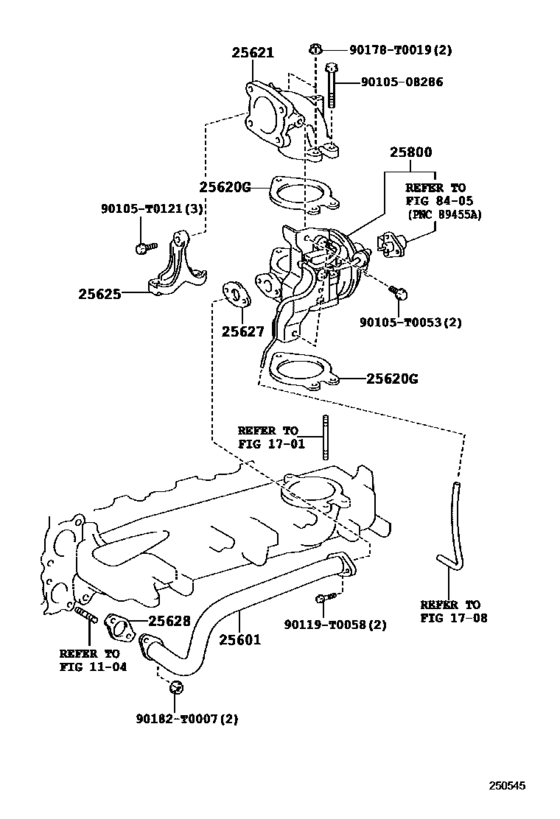

Exhaust Gas Recirculation System ([05.2015 - ] (1505- )2KDFTV..KUN112,122..IDN,PKN) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- KUN122
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- PKN
- CAB
- PKNSC
- Model
- HILUX
- From
- 10.2016
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Model Mark
- L
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-0L010
Pipe Sub-Assy, Egr, No.1
[05.2015 -] 1KDFTV,2KDFTV..KUN112,12#..IDN,PKN |
25601-0L010 |
— | ||
|
25620G
|
25620G
26171-0L010 Gasket, Intake Air ConnectorINTAKE AIR CONNECTOR [05.2015 -] 2KDFTV..KUN125..IDN NO.1:REFER ILLUST.; 1KDFTV,2KDFTV..KUN112,122,126..IDN,PKN |
26171-0L010 |
US $3.79 |
||
|
25621
|
25621
17861-0L010
Connector, Intake Air(For Gasket)
[05.2015 -] 1KDFTV,2KDFTV..KUN112,122,126..IDN,PKN |
17861-0L010 |
— | ||
|
25625
|
25625
26127-0L010
Bracket, Intake Air Connector, No.2
[05.2015 -] 2KDFTV..KUN112,122..IDN,PKN |
26127-0L010 |
— | ||
|
25627
|
25627
25627-0L010 Gasket, Egr ValveEGR VALVE [05.2015 -] 2KDFTV..KUN125..IDN NO.1:REFER ILLUST.; 1KDFTV,2KDFTV..KUN112,122,126..IDN,PKN |
25627-0L010 |
US $2.48 |
||
|
25628
|
25628
25628-0L010
Gasket, Egr Inlet
[05.2015 -] 1KDFTV,2KDFTV..KUN112,12#..IDN,PKN |
25628-0L010 |
— | ||
|
25800
|
25800
25800-0L020 Valve Assy, Electric Egr ControlELECTRIC EGR CONTROL [05.2015 -] 2KDFTV..KUN112,122..IDN,PKN |
25800-0L020 |
US $210.68 |
||
|
90105T0053
|
90105T0053
90105-T0053
New Genuine Part
|
90105-T0053 |
— | ||
|
90105T0121
|
90105T0121
90105-T0121
New Genuine Part
|
90105-T0121 |
— | ||
|
90119T0058
|
90119T0058
90119-T0058
New Genuine Part
|
90119-T0058 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.92 |
||
|
90182T0007
|
90182T0007
90182-T0007
New Genuine Part
|
90182-T0007 |
— | ||
|
9010508286
|
9010508286
90105-08286 New Genuine Part |
90105-08286 |
US $4.66 |
