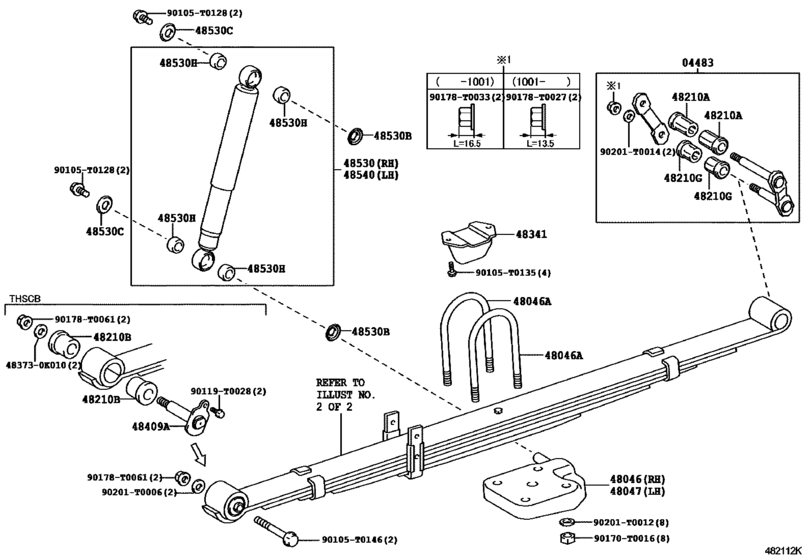

Rear Spring & Shock Absorber ([07.2005 - ] (0507- )KUN15..THDCB,THSCB,XTR) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2006
- Sales region
- Europe
- Frame
- KUN15
- grade
- DLX
- ENGINE
- 2KDFTV
- DECK
- SD
- CAB
- XTR
- Model
- HILUX
- From
- 07.2005
- To
- 08.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-0K022
Shackle Kit, Rear Spring
[07.2005 - 07.2006] KUN15,25 |
04483-0K022 |
— | ||
| replacement | |||||
|
04483
|
04483
04483-0K050 Shackle Kit, Rear SpringREAR SPRING [07.2005 - 07.2006] KUN15,25 |
04483-0K050 |
from US $69.54 |
||
|
48046
|
48046
48046-0K011
Seat Sub-Assy, Spring U Bolt, Rh
[07.2005 - 10.2008] KUN15 |
48046-0K011 |
— | ||
|
48046A
|
48046A
90117-T0003
Bolt, U(For Rear Spring)
[07.2005 - 10.2008] KUN15 L=175 |
90117-T0003 |
— | ||
|
48047
|
48047
48046-0K011
Seat Sub-Assy, Spring U Bolt, Rh
[07.2005 - 10.2008] KUN15 |
48046-0K011 |
— | ||
|
48210A
|
48210A
90385-T0001
Bush(For Rear Spring Shackle Upper)
[07.2005 - 07.2006] KUN15,25 |
90385-T0001 |
— | ||
| replacement | |||||
|
48210A
|
48210A
90385-T0009 Bush(For Rear Spring Shackle Upper)[07.2005 - 07.2006] KUN15,25 |
90385-T0009 |
from US $3.16 |
||
|
48210G
|
48210G
90385-T0002
Bush(For Rear Spring Shackle Lower)
[07.2005 - 07.2006] KUN15,25 |
90385-T0002 |
— | ||
| replacement | |||||
|
48210G
|
48210G
90385-T0010 Bush(For Rear Spring Shackle Lower)[07.2005 - 07.2006] KUN15,25 |
90385-T0010 |
from US $2.55 |
||
|
48341
|
48341
48341-0K010 Bumper, Rear SpringREAR SPRING [07.2005 - 08.2008] KUN15..THDCB,THSCB,XTR |
48341-0K010 |
US $36.58 |
||
|
48530
|
48530
48531-09570 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [07.2005 - 08.2008] KUN15..THDCB,XTR MARK 48531-0K050 |
48531-09570 |
US $61.58 |
||
|
48530B
|
48530B
90948-T3001 Washer, Rear Shock Absorber Cushion, No.1REAR SHOCK ABSORBER CUSHION, NO.1 [07.2005 - 10.2008] KUN15,2#..4FC,5F |
90948-T3001 |
US $4.04 |
||
|
48530C
|
48530C
90948-T3002 Washer, Rear Shock Absorber Cushion, No.2REAR SHOCK ABSORBER CUSHION, NO.2 [07.2005 - 10.2008] KUN15,2#..4FC,5F |
90948-T3002 |
US $5.07 |
||
|
48530H
|
48530H
90385-T0004 Bush, Rear Shock AbsorberREAR SHOCK ABSORBER [07.2005 - 10.2008] KUN15,2#..4FC,5F |
90385-T0004 |
US $1.62 |
||
|
48540
|
48540
48531-09570 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [07.2005 - 08.2008] KUN15..THDCB,XTR MARK 48531-0K050 |
48531-09570 |
US $61.58 |
||
|
90105T0128
|
90105T0128
90105-T0128 BOLT FLANGE |
90105-T0128 |
from US $1.13 |
||
|
90105T0135
|
90105T0135
90105-T0135
New Genuine Part
|
90105-T0135 |
— | ||
|
90105T0146
|
90105T0146
90105-T0146 BOLT FLANGE |
90105-T0146 |
US $4.39 |
||
|
90119T0028
|
90119T0028
90119-T0028
New Genuine Part
|
90119-T0028 |
— | ||
|
90170T0016
|
90170T0016
90170-T0016 NUT HEXAGON |
90170-T0016 |
US $1.19 |
||
|
90178T0027
|
90178T0027
90178-T0027 Nut(For Front Suspension Upper Arm Rh) |
90178-T0027 |
US $0.84 |
||
|
90178T0033
|
90178T0033
90178-T0033
New Genuine Part
|
90178-T0033 |
— | ||
|
90178T0061
|
90178T0061
90178-T0061 NUT FLANGE |
90178-T0061 |
US $1.13 |
||
|
90201T0006
|
90201T0006
90201-T0006 WASHER PLATE |
90201-T0006 |
US $2.03 |
||
|
90201T0012
|
90201T0012
90201-T0012 WASHER PLATE |
90201-T0012 |
US $0.94 |
||
|
90201T0014
|
90201T0014
90201-T0014
TY STANDARD PARTS REF ART
|
90201-T0014 |
— | ||
|
483730K010
|
483730K010
48373-0K010 Spacer, Rear Spring |
48373-0K010 |
US $5.82 |
||
