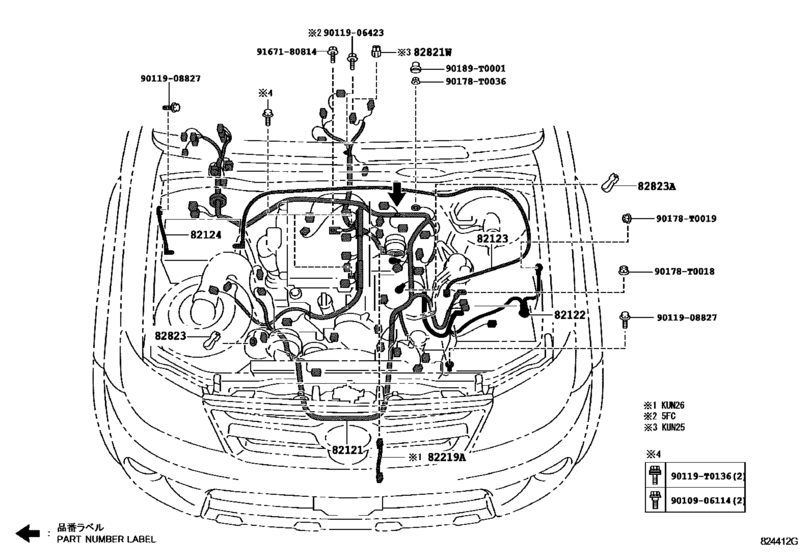

Wiring & Clamp ([07.2005 - ] ENGINE (0507- )LHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2006
- Sales region
- Europe
- Frame
- KUN15
- grade
- DLX
- ENGINE
- 2KDFTV
- DECK
- SD
- CAB
- XTR
- Model
- HILUX
- From
- 07.2005
- To
- 08.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-0K350
Wire, Engine
[07.2005 - 10.2006] KUN15..LHD..DCR; KUN15..LHD..DCR PART NUMBER LABEL=82121-0K350 |
82121-0K350 |
— | ||
|
82122
|
82122
82122-0K040
Wire, Engine, No.2
[07.2005 - 08.2008] KUN15,2#..THDCB,THSCB,XTR |
82122-0K040 |
— | ||
|
82122
|
82122
82122-0K080
Wire, Engine, No.2
[07.2005 - 08.2008] KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC |
82122-0K080 |
— | ||
|
82123
|
82123
82123-0K020
Wire, Engine, No.3
[07.2005 - 02.2006] KUN15,25..LHD..5F COLD AREA SPEC |
82123-0K020 |
— | ||
|
82123
|
82123
82123-0K021
Wire, Engine, No.3
[02.2006 - 10.2008] KUN15,25..LHD..5F COLD AREA SPEC |
82123-0K021 |
— | ||
|
82124
|
82124
82124-0K020
Wire, Engine, No.4
[07.2005 - 02.2006] KUN15,25..LHD..5F COLD AREA SPEC |
82124-0K020 |
— | ||
|
82124
|
82124
82124-0K021
Wire, Engine, No.4
[02.2006 - 10.2008] KUN15,25..LHD..5F COLD AREA SPEC |
82124-0K021 |
— | ||
|
82823A
|
82823A
82823-35050 Cap, Terminal, No.1[07.2005 - 10.2008] KUN15,25..5F;KUN26..4FC,5F |
82823-35050 |
US $6.99 |
||
|
90119T0136
|
90119T0136
90119-T0136
New Genuine Part
|
90119-T0136 |
— | ||
|
90178T0018
|
90178T0018
90178-T0018 NUT FLANGE |
90178-T0018 |
US $0.76 |
||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.80 |
||
|
90178T0036
|
90178T0036
90178-T0036
New Genuine Part
|
90178-T0036 |
— | ||
|
90189T0001
|
90189T0001
90189-T0001
Grommet, Screw(For Glow Plug)
|
90189-T0001 |
— | ||
|
9010906114
|
9010906114
90109-06114 New Genuine Part |
90109-06114 |
US $1.46 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9011908827
|
9011908827
90119-08827 New Genuine Part |
90119-08827 |
US $1.61 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.43 |
