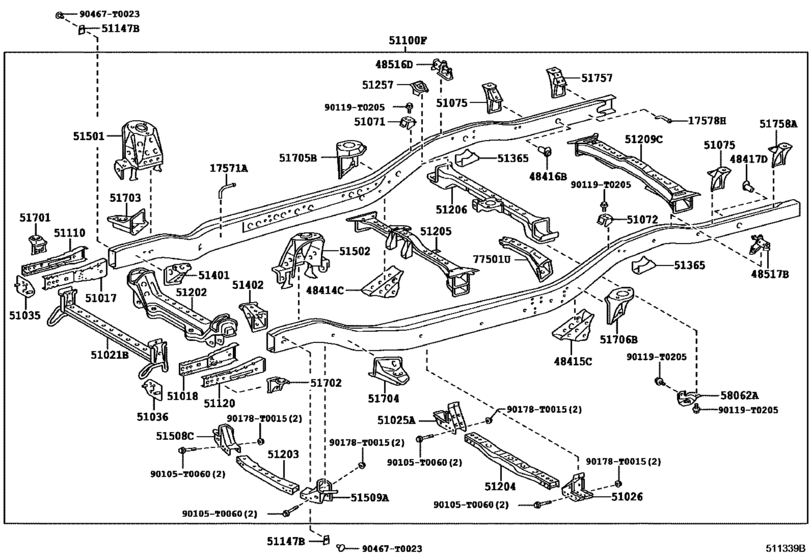

Frame ([07.2005 - ] (0507- )KUN15..DCB,THDCB) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2006
- Sales region
- Europe
- Frame
- KUN15
- grade
- DLX
- ENGINE
- 2KDFTV
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 07.2005
- To
- 10.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17571A
|
17571A
17571-0L010 Bracket, Exhaust Pipe Support, No.9EXHAUST PIPE SUPPORT, NO.9 [07.2005 - 10.2008] 1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
17571-0L010 |
US $9.18 |
||
|
17578H
|
17578H
17505-0L010
Bracket, Exhaust Pipe Support, No.10
[07.2005 - 10.2008] 1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
17505-0L010 |
— | ||
|
48414C
|
48414C
48404-0K010
Bracket, Spring, No.3 Rh
[07.2005 - 10.2008] KUN15..DCB,THDCB,XTR |
48404-0K010 |
— | ||
|
48415C
|
48415C
48407-0K010
Bracket, Spring, No.3 Lh
[07.2005 - 10.2008] KUN15..DCB,THDCB,XTR |
48407-0K010 |
— | ||
|
48416B
|
48416B
48405-0K010 Bracket, Spring, No.4 RhSPRING, NO.4 RH [07.2005 - 10.2008] KUN15,2#..4FC,5F |
48405-0K010 |
US $22.04 |
||
|
48417D
|
48417D
48405-0K010 Bracket, Spring, No.4 RhSPRING, NO.4 RH [07.2005 - 10.2008] KUN15,2#..4FC,5F |
48405-0K010 |
US $22.04 |
||
|
48516D
|
48516D
48505-0K010
Bracket Sub-Assy, Rear Shock Absorber, Upper Rh
[07.2005 - 10.2008] KUN15,2#..4FC,5F |
48505-0K010 |
— | ||
|
48517B
|
48517B
48505-0K010
Bracket Sub-Assy, Rear Shock Absorber, Upper Rh
[07.2005 - 10.2008] KUN15,2#..4FC,5F |
48505-0K010 |
— | ||
|
51017
|
51017
51017-0K010 Reinforcement Sub-Assy, Side Rail, No.1 RhSIDE RAIL, NO.1 RH [07.2005 - 10.2008] KUN15 |
51017-0K010 |
US $102.67 |
||
|
51018
|
51018
51018-0K010 Reinforcement Sub-Assy, Side Rail, No.1 LhSIDE RAIL, NO.1 LH [07.2005 - 10.2008] KUN15 |
51018-0K010 |
US $93 |
||
|
51021B
|
51021B
51021-0K010 Crossmember Sub-Assy, Frame AuxiliaryFRAME AUXILIARY [07.2005 - 10.2008] KUN15 |
51021-0K010 |
US $119.20 |
||
|
51025A
|
51025A
51025-0K010
Bracket Sub-Assy, Frame No.3 Cross Member, Rh
[07.2005 - 10.2008] KUN15,2#..4FC,5F |
51025-0K010 |
— | ||
| replacement | |||||
|
51025A
|
51025A
51025-0K030
Bracket Sub-Assy, Frame No.3 Cross Member, Rh
[07.2005 - 10.2008] KUN15,2#..4FC,5F |
51025-0K030 |
— | ||
|
51026
|
51026
51026-0K010
Bracket Sub-Assy, Frame No.3 Cross Member, Lh
[07.2005 - 10.2008] KUN15,2#..4FC,5F |
51026-0K010 |
— | ||
| replacement | |||||
|
51026
|
51026
51026-0K030
Bracket Sub-Assy, Frame No.3 Cross Member, Lh
[07.2005 - 10.2008] KUN15,2#..4FC,5F |
51026-0K030 |
— | ||
|
51035
|
51035
51035-0K010 Plate Sub-Assy, Frame Side Rail, RhFRAME SIDE RAIL, RH [07.2005 - 10.2008] KUN15,2#..4FC,5F |
51035-0K010 |
US $19.31 |
||
|
51036
|
51036
51036-0K010 Plate Sub-Assy, Frame Side Rail, LhFRAME SIDE RAIL, LH [07.2005 - 10.2008] KUN15,2#..4FC,5F |
51036-0K010 |
US $17.78 |
||
|
51071
|
51071
51071-0K030
Bracket Sub-Assy, Rear Body Mounting, No.1 Rh
[07.2005 - 10.2008] KUN15,2#..(DCB,THDCB)..(4FC,5F) |
51071-0K030 |
— | ||
|
51072
|
51072
51072-0K030
Bracket Sub-Assy, Rear Body Mounting, No.1 Lh
[07.2005 - 10.2008] KUN15,2#..(DCB,THDCB)..(4FC,5F) |
51072-0K030 |
— | ||
|
51075
|
51075
51075-0K010
Bracket Sub-Assy, Rear Body Mounting, No.3 Rh
[07.2005 - 10.2008] KUN15,2#..4FC,5F |
51075-0K010 |
— | ||
|
51100F
|
51100F
51001-0K220
Frame Sub-Assy
[07.2005 - 10.2006] KUN15..DCB..DCR |
51001-0K220 |
— | ||
|
51110
|
51110
51110-0K010 Extension Assy, Side Rail, RhSIDE RAIL, RH [07.2005 - 10.2008] KUN15 |
51110-0K010 |
US $52.16 |
||
|
51120
|
51120
51120-0K010 Extension Assy, Side Rail, LhSIDE RAIL, LH [07.2005 - 10.2008] KUN15 |
51120-0K010 |
US $52.12 |
||
|
51202
|
51202
51201-0K010
Crossmember Sub-Assy, Frame, No.1
[07.2005 - 10.2006] KUN15..DCB,SCB |
51201-0K010 |
— | ||
|
51203
|
51203
51202-0K010
Crossmember Sub-Assy, Frame, No.2
[07.2005 - 10.2008] KUN15 |
51202-0K010 |
— | ||
|
51204
|
51204
51203-0K030
Crossmember Sub-Assy, Frame, No.3
[07.2005 - 10.2006] KUN15..DCR |
51203-0K030 |
— | ||
|
51205
|
51205
51204-0K020
Crossmember Sub-Assy, Frame, No.4
[07.2005 - 10.2008] KUN15 |
51204-0K020 |
— | ||
|
51206
|
51206
51205-0K030
Crossmember Sub-Assy, Frame, No.5
[07.2005 - 10.2008] KUN15,2#..4FC,5F |
51205-0K030 |
— | ||
|
51209C
|
51209C
51209-0K030
Crossmember Sub-Assy, Frame, Rear
[07.2005 - 10.2008] KUN15,2#..4FC,5F |
51209-0K030 |
— | ||
|
51257
|
51257
51257-0K010
Reinforcement, Frame No.5 Crossmember, Rh
[07.2005 - 10.2008] KUN15,2#..4FC,5F |
51257-0K010 |
— | ||
|
51365
|
51365
57081-0K010
Stopper, Rear Bumper
[07.2005 - 10.2008] KUN15 |
57081-0K010 |
— | ||
|
51401
|
51401
51401-0K020
Bracket Sub-Assy, Engine Front Mounting, Rh
[07.2005 - 10.2008] KUN15,2#..4FC,5F |
51401-0K020 |
— | ||
| replacement | |||||
|
51401
|
51401
51401-0K050 Bracket Sub-Assy, Engine Front Mounting, Rh[07.2005 - 10.2008] KUN15,2#..4FC,5F |
51401-0K050 |
US $45.47 |
||
|
51402
|
51402
51402-0K020
Bracket Sub-Assy, Engine Front Mounting, Lh
[07.2005 - 10.2008] KUN15,2#..4FC,5F |
51402-0K020 |
— | ||
| replacement | |||||
|
51402
|
51402
51402-0K050 Bracket Sub-Assy, Engine Front Mounting, Lh[07.2005 - 10.2008] KUN15,2#..4FC,5F |
51402-0K050 |
US $52.94 |
||
|
51501
|
51501
51501-0K010 Support Sub-Assy, Suspension Arm, RhSUSPENSION ARM, RH [07.2005 - 10.2008] KUN15 |
51501-0K010 |
US $379.20 |
||
|
51502
|
51502
51502-0K010
Support Sub-Assy, Suspension Arm, Lh
[07.2005 - 10.2008] KUN15 |
51502-0K010 |
— | ||
|
51508C
|
51508C
51508-0K010
Bracket Sub-Assy, Lower Control Link, Rh
[07.2005 - 10.2008] KUN15 |
51508-0K010 |
— | ||
|
51509A
|
51509A
51509-0K010
Bracket Sub-Assy, Lower Arm, Lh
[07.2005 - 10.2008] KUN15 |
51509-0K010 |
— | ||
|
51701
|
51701
51701-0K020 Bracket Sub-Assy, Cab Mounting, No.1 RhCAB MOUNTING, NO.1 RH [07.2005 - 10.2008] KUN15..DCR;KUN2#..4FC,5F;KUN15..(DCB,THDCB)..HDCR |
51701-0K020 |
from US $24.67 |
||
|
51702
|
51702
51701-0K020 Bracket Sub-Assy, Cab Mounting, No.1 RhCAB MOUNTING, NO.1 RH [07.2005 - 10.2008] KUN15..DCR;KUN2#..4FC,5F;KUN15..(DCB,THDCB)..HDCR |
51701-0K020 |
from US $24.67 |
||
|
51703
|
51703
51703-0K010 Bracket Sub-Assy, Cab Mounting, No.2, RhCAB MOUNTING, NO.2, RH [07.2005 - 10.2008] KUN15,2#..4FC,5F |
51703-0K010 |
US $59.59 |
||
|
51704
|
51704
51704-0K010 Bracket Sub-Assy, Cab Mounting, No.2 LhCAB MOUNTING, NO.2 LH [07.2005 - 10.2008] KUN15,2#..4FC,5F |
51704-0K010 |
US $63.69 |
||
|
51705B
|
51705B
51705-0K020
Bracket Sub-Assy, Cab Mounting, No.3 Rh
[07.2005 - 10.2008] KUN15,2#..(DCB,THDCB)..(4FC,5F) |
51705-0K020 |
— | ||
|
51706B
|
51706B
51706-0K020
Bracket Sub-Assy, Cab Mounting, No.3 Lh
[07.2005 - 10.2008] KUN15,2#..(DCB,THDCB)..(4FC,5F) |
51706-0K020 |
— | ||
|
51757
|
51757
51077-0K010
Bracket, Body Support, No.4 Rh
[07.2005 - 11.2007] KUN15,2# |
51077-0K010 |
— | ||
| replacement | |||||
|
51757
|
51757
51077-0K011
Bracket, Body Support, No.4 Rh
[07.2005 - 11.2007] KUN15,2# |
51077-0K011 |
— | ||
|
51758A
|
51758A
51077-0K010
Bracket, Body Support, No.4 Rh
[07.2005 - 11.2007] KUN15,2# |
51077-0K010 |
— | ||
| replacement | |||||
|
51758A
|
51758A
51077-0K011
Bracket, Body Support, No.4 Rh
[07.2005 - 11.2007] KUN15,2# |
51077-0K011 |
— | ||
|
58062A
|
58062A
58062-0K010
Bracket Sub-Assy, Fuel Tank Mounting, Rear
[07.2005 - 10.2008] KUN15,2#..4FC,5F |
58062-0K010 |
— | ||
|
77501U
|
77501U
77501-0K020 Bracket Sub-Assy, Fuel TankFUEL TANK [07.2005 - 10.2008] KUN15,2#..4FC,5F |
77501-0K020 |
US $67.44 |
||
|
90105T0060
|
90105T0060
90105-T0060
BOLT FLANGE
|
90105-T0060 |
— | ||
|
90119T0205
|
90119T0205
90119-T0205 New Genuine Part |
90119-T0205 |
US $0.58 |
||
|
90178T0015
|
90178T0015
90178-T0015
NUT FLANGE
|
90178-T0015 |
— | ||
|
90467T0023
|
90467T0023
90467-T0023 CLIP |
90467-T0023 |
US $1.33 |
||
