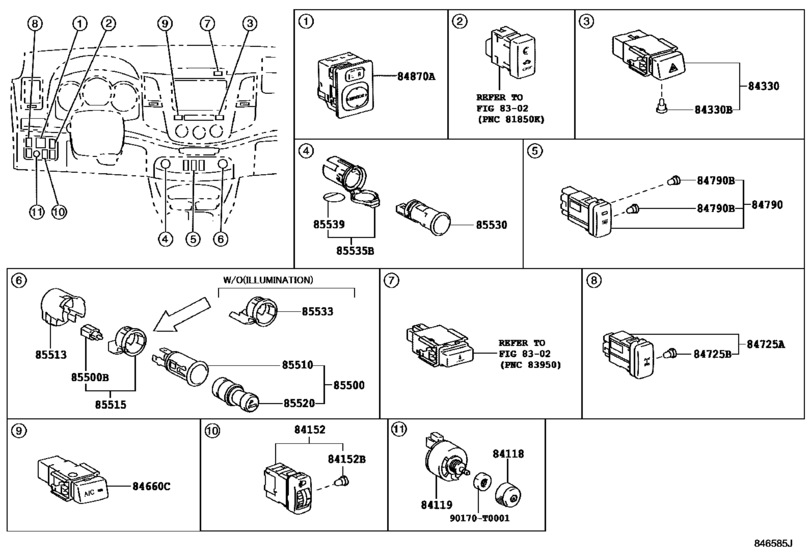

Switch & Relay & Computer ([11.2004 - ] INSTRUMENT PANEL (0411- )LHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2004 - 2011
- Sales region
- U.S.A.
- Frame
- KUN15
- grade
- SR
- ENGINE
- 2KDFTV
- DESTINATION
- PHL
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 11.2004
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84330
|
84330
84332-0K010 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [08.2004 - 01.2012] KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN 16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..( DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC |
84332-0K010 |
US $48.50 |
||
|
84330B
|
84330B
90011-01056 Bulb, Hazard Warning Signal SwitchHAZARD WARNING SIGNAL SWITCH [08.2004 - 01.2012] KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN 16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..( DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC |
90011-01056 |
US $2.67 |
||
|
84660C
|
84660C
84660-71010 Switch, CoolerCOOLER [08.2010 -] KUN15..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
84660-71010 |
US $56.39 |
||
|
84870A
|
84870A
84870-0K010 Switch Assy, Outer MirrorOUTER MIRROR [08.2004 - 12.2008] KUN36..(DCB,SCB,XTR)..5F..SR;KUN26..(DCB,THDCB,XTR)..5F..SR;KUN26..4FC..SR..(ARL,G EN,LA,PHL,TH);GGN15,25,KUN15,16,25,TGN16,26,36..(DCB,SCB,THDCB,XTR)..SR..(ANCOM,AR L,GCC,GEN,MA,PHL,SA,TH) |
84870-0K010 |
US $109.30 |
||
|
85500
|
85500
85500-28050 Lighter Assy, Cigarette[08.2004 - 11.2011] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
85500-28050 |
from US $27.65 |
||
|
85500B
|
85500B
90010-01022 Bulb, Key Cylinder Lamp[08.2004 - 12.2008] KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..ARL;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);GGN15, 25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..(ANCOM,ARL,SA,TH);KUN15,16,25,TGN16,26,36..(DCB ,SCB,THDCB,XTR)..SR..(ANCOM,GEN,MA,PHL,SA,TH) 14V 1.4W,W(GREEN CAP) |
90010-01022 |
from US $2.57 |
||
|
85510
|
85510
85510-22110
Socket & Retainer Assy, Cigarlighter
[08.2004 - 11.2011] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
85510-22110 |
— | ||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[08.2004 - 11.2011] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
85513-28010 |
from US $2.54 |
||
|
85515
|
85515
85515-60010 Stay, Cigarette Lighter Bezel[08.2004 - 12.2008] KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..ARL;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);GGN15, 25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..(ANCOM,ARL,SA,TH);KUN15,16,25,TGN16,26,36..(DCB ,SCB,THDCB,XTR)..SR..(ANCOM,GEN,MA,PHL,SA,TH) |
85515-60010 |
from US $6.94 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[08.2004 - 11.2011] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
85520-28010 |
from US $16.77 |
||
|
85530
|
85530
85530-0K010
Socket Assy, Power Outlet, No.1
[08.2004 - 12.2008] KUN25..THDCB;KUN36..(DCB,SCB,XTR)..5F;KUN25,TGN36..DCB..DLX..LA;KUN26..(DCB,THDCB, XTR)..5F..SR;KUN26..4FC..SR..(ARL,GEN,LA,PHL,TH);KUN26,35..(DCB,THDCB)..DLX..(GEN, LA);GGN15,25,KUN15,16,25,TGN16,26,36..(DCB,SCB,THDCB,XTR)..SR..(ANCOM |
85530-0K010 |
— | ||
|
85535B
|
85535B
85535-0K010-A0
Cover, Power Outlet Socket, No.1
[08.2004 - 10.2008] GGN15,25,KUN15,16,2#,36,TGN16,26,36..(DCB,SCB,XTR)..SR..(ARL,LA,MA,PHL,SA,TH) IVORY,TRIM0# |
85535-0K010-A0 |
— | ||
|
85535B
|
85535B
85535-0K010-B0
Cover, Power Outlet Socket, No.1
[08.2004 - 12.2008] KUN25..THDCB;KUN36..5F..(LA,SA);KUN25..(DCB,XTR)..SR;KUN25,TGN36..DCB..DLX..LA;KUN 26..(DCB,THDCB,XTR)..5F..SR;KUN26..4FC..SR..(ARL,GEN,LA,PHL,TH);KUN26,35..(DCB,THD CB)..DLX..(GEN,LA);KUN15,TGN36..(DCB,SCB)..SR..(PHL,SA,TH);GGN15,25,K |
85535-0K010-B0 |
— | ||
|
85535B
|
85535B
85535-0K010-E0
Cover, Power Outlet Socket, No.1
[08.2008 - 07.2011] KUN35..SR..PHL;KUN25,35..(DCB,SMT)..(MA,TH);KUN15,16,26,36,TGN16..SR..(IDN,PHL,TH) SAND BEIGE,TRIM4# |
85535-0K010-E0 |
— | ||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[08.2004 - 12.2008] KUN25..THDCB;KUN36..(DCB,SCB,XTR)..5F;KUN25,TGN36..DCB..DLX..LA;KUN26..(DCB,THDCB, XTR)..5F..SR;KUN26..4FC..SR..(ARL,GEN,LA,PHL,TH);KUN26,35..(DCB,THDCB)..DLX..(GEN, LA);GGN15,25,KUN15,16,25,TGN16,26,36..(DCB,SCB,THDCB,XTR)..SR..(ANCOM |
85539-60020 |
US $1.41 |
||
|
90170T0001
|
90170T0001
90170-T0001
NUT HEXAGON
|
90170-T0001 |
— |
