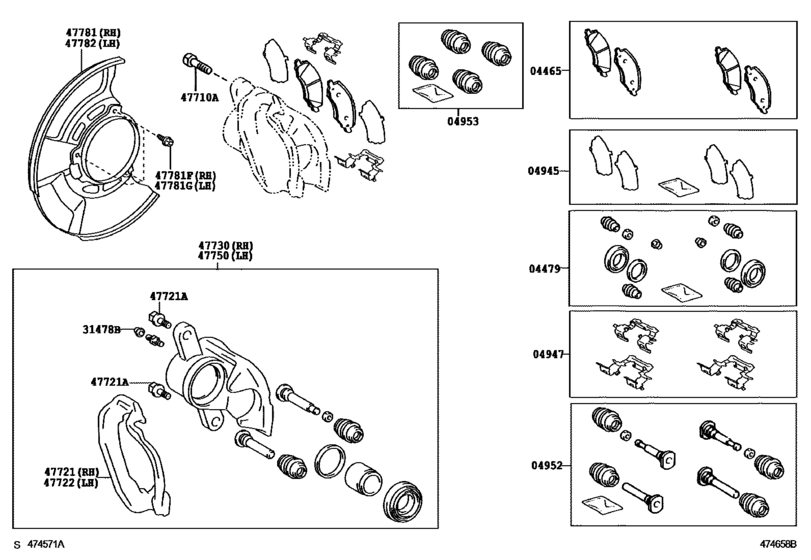

Front Disc Brake Caliper & Dust Cover ([07.2005 - 10.2008] (0507-0810)KUN15..DCB,SCB) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2006 - 2011
- Sales region
- Europe
- Frame
- KUN15
- grade
- DLX
- ENGINE
- 2KDFTV
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 10.2006
- To
- 08.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HDCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-0K130 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [07.2005 - 10.2008] KUN15..DCB,SCB MARK ADVICS PS558H |
04465-0K130 |
US $91.86 |
||
|
04465
|
04465
04465-0K310
Pad Kit, Disc Brake, Front
[10.2008 - 08.2011] KUN15..DCB,SCB MARK ADVICS PS558H |
04465-0K310 |
— | ||
|
04479
|
04479
04478-0K060 Cylinder Kit, Disc Brake, FrontDISC BRAKE, FRONT [07.2005 - 10.2008] KUN15..DCB,SCB |
04478-0K060 |
US $57.45 |
||
|
04945
|
04945
04945-0K171
Shim Kit, Anti Squeal, Front
[07.2005 - 10.2008] KUN15..DCB,SCB |
04945-0K171 |
— | ||
|
04947
|
04947
04947-0K020 Fitting Kit, Disc Brake, FrontDISC BRAKE, FRONT [07.2005 - 10.2008] KUN15..DCB,SCB |
04947-0K020 |
US $17.20 |
||
|
04952
|
04952
04952-02030
Pin Kit, Front Disc Brake Cylinder Slide
[07.2005 - 10.2008] KUN15..DCB,SCB |
04952-02030 |
— | ||
| replacement | |||||
|
04952
|
04952
04952-02230
Pin Kit, Front Disc Brake Cylinder Slide
[07.2005 - 10.2008] KUN15..DCB,SCB |
04952-02230 |
— | ||
|
04953
|
04953
04953-02030 Boot Kit, Front Disc Brake Cylinder Slide PinFRONT DISC BRAKE CYLINDER SLIDE PIN [07.2005 - 10.2008] KUN15..DCB,SCB |
04953-02030 |
US $27.12 |
||
|
31478B
|
31478B
31478-0K020
Cap, Bleeder Plug(For Front Disc Brake)
[07.2005 - 10.2008] KUN15..DCB,SCB |
31478-0K020 |
— | ||
|
47710A
|
47710A
91552-C1230 Bolt, Hexagon(For Front Disc Brake Caliper)HEXAGON(FOR FRONT DISC BRAKE CALIPER) [07.2005 - 10.2008] KUN15 *12-1.25PX30-26.25 |
91552-C1230 |
from US $1.31 |
||
|
47721
|
47721
47721-09500
Mounting, Front Disc Brake Cylinder, Rh
[10.2008 - 08.2011] KUN15..DCB,SCB |
47721-09500 |
— | ||
|
47721
|
47721
47721-0K020
Mounting, Front Disc Brake Cylinder, Rh
[07.2005 - 10.2008] KUN15..DCB,SCB |
47721-0K020 |
— | ||
|
47721A
|
47721A
90080-10190 Bolt(For Front Disc Brake Cylinder Mounting)[07.2005 - 10.2008] KUN15..DCB,SCB *8-1.00PX22-14.5 |
90080-10190 |
US $0.84 |
||
|
47722
|
47722
47722-09200
Mounting, Front Disc Brake Cylinder, Lh
[10.2008 - 08.2011] KUN15..DCB,SCB |
47722-09200 |
— | ||
|
47722
|
47722
47722-0K020
Mounting, Front Disc Brake Cylinder, Lh
[07.2005 - 10.2008] KUN15..DCB,SCB |
47722-0K020 |
— | ||
|
47730
|
47730
47730-0K020
Cylinder Assy, Front Disc Brake, Rh
[07.2005 - 10.2008] KUN15..DCB,SCB |
47730-0K020 |
— | ||
|
47730
|
47730
47730-0K120
Cylinder Assy, Front Disc Brake, Rh
[10.2008 - 08.2011] KUN15..DCB,SCB |
47730-0K120 |
— | ||
|
47750
|
47750
47750-0K020
Cylinder Assy, Disc Brake, Lh
[07.2005 - 10.2008] KUN15..DCB,SCB |
47750-0K020 |
— | ||
|
47750
|
47750
47750-0K120
Cylinder Assy, Disc Brake, Lh
[10.2008 - 08.2011] KUN15..DCB,SCB |
47750-0K120 |
— | ||
|
47781
|
47781
47781-0K010
Cover, Disc Brake Dust, Front Rh
[07.2005 - 10.2008] KUN15 |
47781-0K010 |
— | ||
|
47781
|
47781
47781-0K020
Cover, Disc Brake Dust, Front Rh
[10.2008 - 08.2011] KUN15..DCB,SCB |
47781-0K020 |
— | ||
|
47781F
|
47781F
90119-T0005
Bolt(For Dust Cover To Steering Knuckle Arm Rh)
[07.2005 - 10.2008] KUN15 |
90119-T0005 |
— | ||
|
47781G
|
47781G
90119-T0005
Bolt(For Dust Cover To Steering Knuckle Arm Rh)
[07.2005 - 10.2008] KUN15 |
90119-T0005 |
— | ||
|
47782
|
47782
47782-0K010
Cover, Disc Brake Dust, Front Lh
[07.2005 - 10.2008] KUN15 |
47782-0K010 |
— | ||
|
47782
|
47782
47782-0K020
Cover, Disc Brake Dust, Front Lh
[10.2008 - 08.2011] KUN15..DCB,SCB |
47782-0K020 |
— | ||
