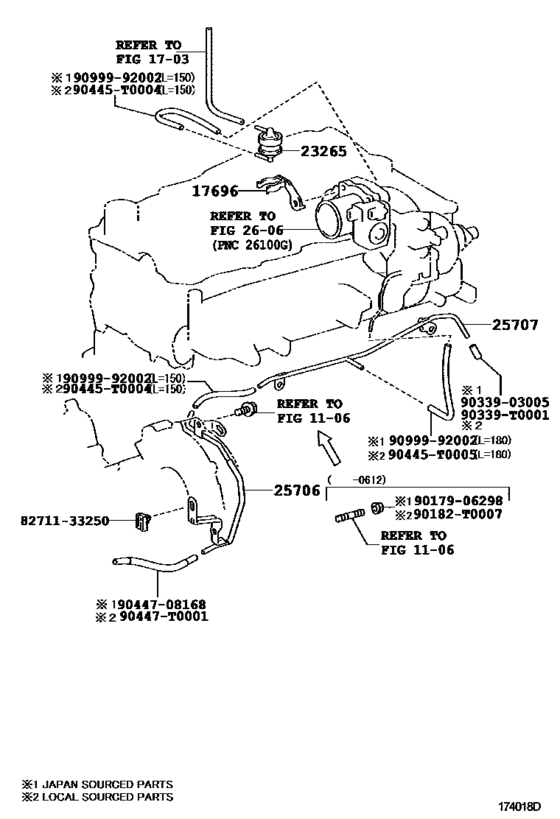

Vacuum Piping ([08.2004 - ] (0408- )2KDFTV..KUN15..LHD..GEN,PHL ; (0408- )2KDFTV..KUN15..RHD..DLX,SR..DCR ; (0501- )2KD FTV..KUN35..SCB,THDCB) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2010 - 2011
- Sales region
- U.S.A.
- Frame
- KUN15
- grade
- STD
- ENGINE
- 2KDFTV
- DESTINATION
- PHL
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2010
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17696
|
17696
17696-0L010 Bracket, Gas FilterGAS FILTER [08.2008 - 04.2012] 2KDFTV..KUN15..SR..SA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(D CB,SCB)..(ANCOM,GCC,GEN,LA,MA,PHL,PKN) *130 |
17696-0L010 |
US $3.16 |
||
|
17696
|
17696
17696-30010 Bracket, Gas FilterGAS FILTER [08.2008 - 04.2012] 2KDFTV..KUN15..DCR..(GCC,GEN,PHL,SA,TH);2KDFTV..KUN10,25,35..GCC,GEN,MA,PHL,PKN,SA *163 OR *184 |
17696-30010 |
US $3.47 |
||
|
23265
|
23265
90917-11036 Filter, Gas, No.1[08.2008 -] 2KDFTV..KUN35..DLX;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN25..ANCOM,GCC,GEN,LA,MA, PKN,SA;1KDFTV,2KDFTV..KUN1#,26,36..GCC,GEN,IDN,LA,PHL,SA,TH |
90917-11036 |
from US $16.97 |
||
|
25706
|
25706
25706-0L010
Pipe Sub-Assy, Vacuum Transmitting, No.1
[08.2008 -] 1KDFTV..KUN16..4FC;2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,3 6..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN35..DLX..(ANCOM,LA,PHL,TH);1KD FTV,2KDFTV..KUN10,15,36..GCC,GEN,LA,PHL,TH;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,G |
25706-0L010 |
— | ||
|
25706
|
25706
25706-30020 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [08.2008 -] 1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);1KDFTV..KUN1 6..(SCB,SMT)..CBU;1KDFTV..KUN26,36..GEN,PHL,SA,TH;2KDFTV..KUN35..DLX..(GEN,PHL,SA, TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GE |
25706-30020 |
US $26.50 |
||
|
25707
|
25707
25707-0L020
Pipe Sub-Assy, Vacuum Transmitting, No.2
[08.2008 -] 1KDFTV..KUN16..4FC;2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..XTR..SA;2KDFTV..KUN25. .ANCOM,LA,MA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN35..DLX..(ANCOM,LA,PHL,TH);1 KDFTV,2KDFTV..KUN15,26,36..LA,PHL,TH *130 |
25707-0L020 |
— | ||
|
25707
|
25707
25707-30020
Pipe Sub-Assy, Vacuum Transmitting, No.2
[08.2008 -] 1KDFTV..KUN16..4FC;2KDFTV..KUN15,25..MA,PHL;2KDFTV..KUN35..SR..(PHL,SA);1KDFTV..KU N16..(SCB,SMT)..CBU;2KDFTV..KUN25,35..RHD..SCB..SA;1KDFTV..KUN26,36..GEN,PHL,SA,TH ;2KDFTV..KUN35..DLX..(GEN,PHL,TH);2KDFTV..KUN15,25..(THDCB,THSCB,XTR)..DLX;2K |
25707-30020 |
— | ||
|
90182T0007
|
90182T0007
90182-T0007
New Genuine Part
|
90182-T0007 |
— | ||
|
90339T0001
|
90339T0001
90339-T0001
New Genuine Part
|
90339-T0001 |
— | ||
|
90445T0004
|
90445T0004
90445-T0004
New Genuine Part
|
90445-T0004 |
— | ||
|
90445T0005
|
90445T0005
90445-T0005
New Genuine Part
|
90445-T0005 |
— | ||
|
90447T0001
|
90447T0001
90447-T0001
New Genuine Part
|
90447-T0001 |
— | ||
|
8271133250
|
8271133250
82711-33250 Wire, Fuse To Fuse(for Combustion Heater) |
82711-33250 |
US $1.75 |
||
|
9017906298
|
9017906298
90179-06298 NUT |
90179-06298 |
US $1.61 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.77 |
||
|
9044708168
|
9044708168
90447-08168 New Genuine Part |
90447-08168 |
US $4.80 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— |
