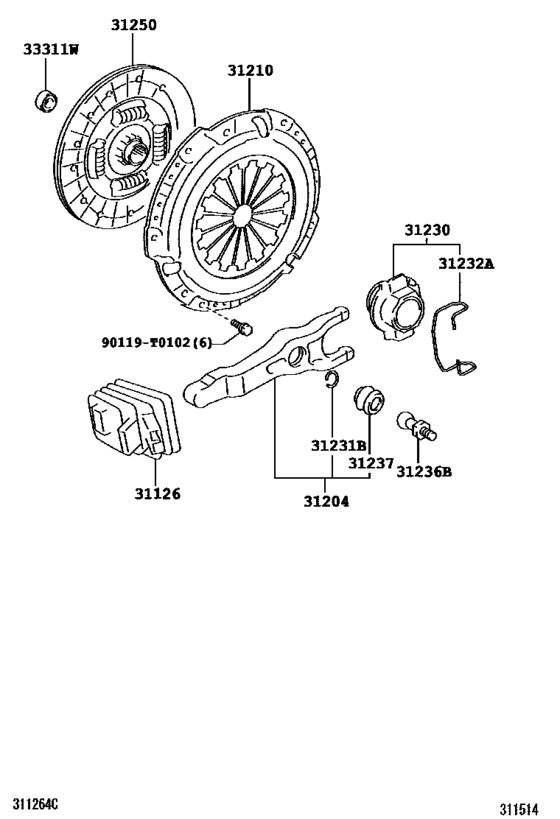

Clutch & Release Fork ([07.2005 - ] (0507- )XTR..DCR) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2006
- Sales region
- Europe
- Frame
- KUN15
- grade
- DLX
- ENGINE
- 2KDFTV
- DECK
- SD
- CAB
- XTR
- Model
- HILUX
- From
- 07.2005
- To
- 08.2006
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-0K050 Boot, Clutch Release ForkCLUTCH RELEASE FORK [07.2005 - 08.2006] KUN15..XTR |
31126-0K050 |
US $11.74 |
||
|
31204
|
31204
31204-0K070
Fork Sub-Assy, Clutch Release
[07.2005 - 08.2006] KUN15..XTR |
31204-0K070 |
— | ||
| replacement | |||||
|
31204
|
31204
31204-0K180 Fork Sub-Assy, Clutch Release[07.2005 - 08.2006] KUN15..XTR |
31204-0K180 |
US $91.08 |
||
|
31210
|
31210
31210-0K020
Cover Assy, Clutch
[07.2005 - 08.2006] KUN15..XTR |
31210-0K020 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-0K023 Cover Assy, Clutch[07.2005 - 08.2006] KUN15..XTR |
31210-0K023 |
US $140.56 |
||
|
31230
|
31230
31230-71030 Bearing Assy, Clutch ReleaseCLUTCH RELEASE [07.2005 - 10.2006] KUN15..DCR |
31230-71030 |
US $82.76 |
||
|
31231B
|
31231B
90520-T0031
Ring, Snap(For Clutch Release Hub)
[07.2005 - 08.2006] KUN15..XTR |
90520-T0031 |
— | ||
|
31232A
|
31232A
31232-71030 Clip, Release Bearing HubRELEASE BEARING HUB [07.2005 - 10.2006] KUN15..DCR |
31232-71030 |
US $1.89 |
||
|
31236B
|
31236B
31236-71010
Support, Release Fork
[07.2005 - 10.2008] KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX |
31236-71010 |
— | ||
| replacement | |||||
|
31236B
|
31236B
31236-71011 Support, Release ForkRELEASE FORK [07.2005 - 10.2008] KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX |
31236-71011 |
US $17.14 |
||
|
31237
|
31237
31237-60010 Boot, Clutch Release Fork SupportCLUTCH RELEASE FORK SUPPORT [07.2005 - 10.2008] KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX |
31237-60010 |
from US $2.20 |
||
|
31250
|
31250
31250-0K020
Disc Assy, Clutch
[07.2005 - 08.2006] KUN15..XTR |
31250-0K020 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-0K210 Disc Assy, Clutch[07.2005 - 08.2006] KUN15..XTR |
31250-0K210 |
US $159.22 |
||
|
33311W
|
33311W
90363-T0006 Bearing (For Input Shaft)[07.2005 - 08.2008] KUN15,2#..(THDCB,THSCB,XTR)..5F |
90363-T0006 |
from US $4.35 |
||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[07.2005 - 08.2008] KUN15,2#..(THDCB,THSCB,XTR)..5F |
90363-12024 |
from US $5.67 |
||
|
90119T0102
|
90119T0102
90119-T0102 Bolt (For Transmission Control Cable Bracket) |
90119-T0102 |
US $0.27 |
||
