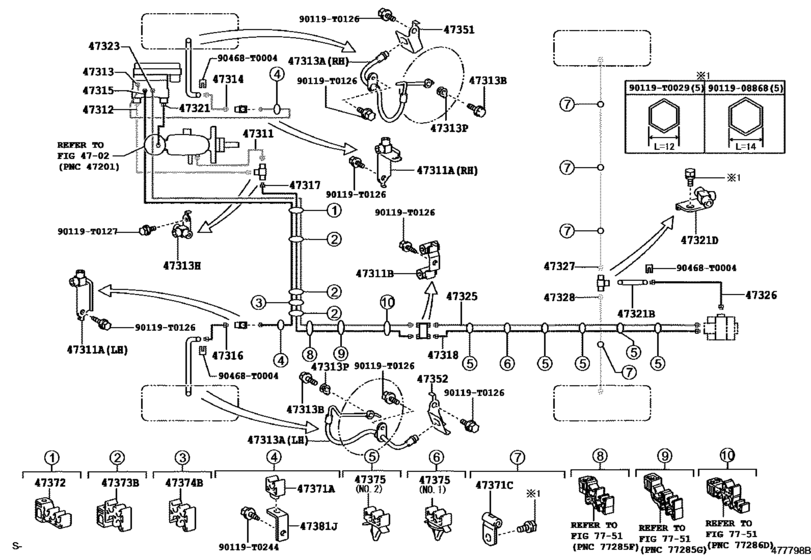

Brake Tube & Clamp ([08.2011 - ] W(ABS) (1108- )KUN15,LAN15,TGN15..RHD..SA) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- U.S.A.
- Frame
- KUN15
- grade
- SR
- ENGINE
- 2KDFTV
- DESTINATION
- SA
- DECK
- SD
- CAB
- XTR
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-0K010
Tube, Front Brake, No.1
[10.2013 -] KUN15..HDCR..SA; KUN26..RHD..SADCB;KUN25,35..RHD..(DCB,SCB)..SA;GGN25,KUN15,26,36,TGN15,36..RHD..(D CR,HTWC)..SA |
47311-0K010 |
— | ||
|
47311
|
47311
47311-0K020
Tube, Front Brake, No.1
[08.2011 - 10.2013] KUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA |
47311-0K020 |
— | ||
|
47311A
|
47311A
90412-10251
Way(For Front Brake Tube)
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 RH |
90412-10251 |
— | ||
|
47311A
|
47311A
90412-10252
Way(For Front Brake Tube)
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 LH |
90412-10252 |
— | ||
|
47311B
|
47311B
90412-10253
Way, No.1(For Front Brake Tube)
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 |
90412-10253 |
— | ||
|
47312
|
47312
47312-0K010
Tube, Front Brake, No.2
[10.2013 -] KUN35..SCB..SA;KUN26..RHD..SADCB;KUN25..RHD..DCB..SA;GGN25,KUN15,26,3#,TGN36..RHD. .SR..SA; KUN35..DCB..DLX..SA;KUN15,25,TGN15..RHD..SCB..SA ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
47312-0K010 |
— | ||
|
47312
|
47312
47312-0K020
Tube, Front Brake, No.2
[08.2011 - 10.2013] KUN35..SCB..SA;KUN26..RHD..SADCB;KUN25..RHD..DCB..SA;GGN25,35,KUN15,26,3#,TGN36..S R..SA; KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
47312-0K020 |
— | ||
|
47313
|
47313
47313-0K010
Tube, Front Brake, No.3
[07.2011 -] GGN25..5FC..DLX;KUN35..SMT..5FC;KUN25..RHD..DCB..SA;KUN35..(SCB,XTR)..SA;GGN15,KUN 36,TGN36..RHD;KUN16,35..RHD..(ARL,GEN);GGN25,KUN16..SR..(SA,TH);KUN25,35..RHD..SR. .(MA,SA);KUN26..RHD..4FC..(ARL,GEN,MA,SA);KUN26..RHD..(5F,5FC)..(GEN,SA,TH);G |
47313-0K010 |
— | ||
|
47313A
|
47313A
90947-T2004 Hose, Flexible, No.1(For Front)FLEXIBLE, NO.1(FOR FRONT) [07.2011 -] GGN15,KUN1#,LAN15,TGN1# RH |
90947-T2004 |
US $40.25 |
||
|
47313A
|
47313A
90947-T2005 Hose, Flexible, No.1(For Front)FLEXIBLE, NO.1(FOR FRONT) [07.2011 -] GGN15,KUN1#,LAN15,TGN1# LH |
90947-T2005 |
US $37.30 |
||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[07.2011 - 11.2012] KUN15,TGN16..CNG,HDCR,HTWC;GGN15,KUN1#,LAN15,TGN10,11,15..(DCR,DEFI,HTWC)..(ARL,GC C,GEN,IDN,PHL,PKN,SA) |
90401-10015 |
from US $3.58 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[12.2012 -] GGN15,KUN1#,LAN15,TGN1# |
90401-10058 |
from US $3.94 |
||
|
47313H
|
47313H
90413-10309
Way, No.3(For Front Brake Tube)
[07.2011 -] GGN25..5FC..DLX;KUN35..SMT..5FC;KUN25..RHD..DCB..SA;KUN35..(SCB,XTR)..SA;GGN15,KUN 36,TGN36..RHD;KUN16,35..RHD..(ARL,GEN);GGN25,KUN16..SR..(SA,TH);KUN25,35..RHD..SR. .(MA,SA);KUN26..RHD..4FC..(ARL,GEN,MA,SA);KUN26..RHD..(5F,5FC)..(GEN,SA,TH);G |
90413-10309 |
— | ||
|
47313P
|
47313P
47389-50021 Gasket(For Front Flexible Hose)[07.2011 -] GGN15,KUN1#,LAN15,TGN1# |
47389-50021 |
from US $4.70 |
||
|
47314
|
47314
47314-0K020
Tube, Front Brake, No.4
[07.2011 -] GGN15,KUN1#,LAN15,TGN1# |
47314-0K020 |
— | ||
|
47315
|
47315
47315-0K010
Tube, Front Brake, No.5
[07.2011 -] GGN25..5FC..DLX;KUN35..SMT..5FC;KUN25..RHD..DCB..SA;KUN35..(SCB,XTR)..SA;GGN15,KUN 36,TGN36..RHD;KUN16,35..RHD..(ARL,GEN);GGN25,KUN16..SR..(SA,TH);KUN25,35..RHD..SR. .(MA,SA);KUN26..RHD..4FC..(ARL,GEN,MA,SA);KUN26..RHD..(5F,5FC)..(GEN,SA,TH);G |
47315-0K010 |
— | ||
|
47316
|
47316
47316-0K020
Tube, Front Brake, No.6
[07.2011 -] GGN15,KUN1#,LAN15,TGN1# |
47316-0K020 |
— | ||
|
47317
|
47317
47317-0K010
Tube, Front Brake, No.7
[10.2013 -] KUN15..HDCR..SA; KUN26..RHD..SADCB;KUN25,35..RHD..(DCB,SCB)..SA;GGN25,KUN15,26,36,TGN15,36..RHD..(D CR,HTWC)..SA |
47317-0K010 |
— | ||
|
47317
|
47317
47317-0K050
Tube, Front Brake, No.7
[08.2011 - 10.2013] KUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA |
47317-0K050 |
— | ||
|
47318
|
47318
47318-0K020
Tube, Front Brake, No.8
[07.2011 - 12.2015] GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..(ARL,GEN,PHL,SA);GGN25,KUN26..(5F,5FC)..(GEN ,PHL,SA,TH);GGN15,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..ARL,GCC,GEN,IDN,PHL,S A,TH |
47318-0K020 |
— | ||
|
47321
|
47321
47321-0K010
Tube, Rear Brake, No.1
[10.2013 -] KUN35..SCB..SA;KUN26..RHD..SADCB;KUN25..RHD..DCB..SA;GGN25,KUN15,26,3#,TGN36..RHD. .SR..SA; KUN35..DCB..DLX..SA;KUN15,25,TGN15..RHD..SCB..SA ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
47321-0K010 |
— | ||
|
47321
|
47321
47321-0K020
Tube, Rear Brake, No.1
[08.2011 - 10.2013] KUN35..SCB..SA;KUN26..RHD..SADCB;KUN25..RHD..DCB..SA;GGN25,35,KUN15,26,3#,TGN36..S R..SA; KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
47321-0K020 |
— | ||
|
47321B
|
47321B
90947-T2011
Hose, Flexible(For Rear Brake Tube)
[07.2011 -] GGN15,KUN1#,LAN15,TGN1# |
90947-T2011 |
— | ||
|
47321D
|
47321D
90413-10311
Way, No.1(For Rear Brake Tube)
[07.2011 -] GGN15,KUN1#,LAN15,TGN1# |
90413-10311 |
— | ||
|
47323
|
47323
47323-0K010
Tube, Rear Brake, No.3
[07.2011 -] GGN25..5FC..DLX;KUN35..SMT..5FC;KUN25..RHD..DCB..SA;KUN35..(SCB,XTR)..SA;GGN15,KUN 36,TGN36..RHD;KUN16,35..RHD..(ARL,GEN);GGN25,KUN16..SR..(SA,TH);KUN25,35..RHD..SR. .(MA,SA);KUN26..RHD..4FC..(ARL,GEN,MA,SA);KUN26..RHD..(5F,5FC)..(GEN,SA,TH);G |
47323-0K010 |
— | ||
|
47325
|
47325
47325-0K020 Tube, Rear Brake, No.5REAR BRAKE, NO.5 [07.2011 - 12.2015] GGN25..5F;GGN25..5FC..DLX;KUN26..4FC..(ARL,GEN,PHL,SA);GGN25,KUN26..(5F,5FC)..(GEN ,PHL,SA,TH);GGN15,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..ARL,GCC,GEN,IDN,PHL,S A,TH |
47325-0K020 |
US $26.68 |
||
|
47326
|
47326
47329-0K011
Tube, Rear Brake, No.6
[07.2011 -] GGN15,KUN1#,LAN15,TGN1# |
47329-0K011 |
— | ||
|
47327
|
47327
47327-0K011
Tube, Rear Brake, No.7
[07.2011 - 12.2015] GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH |
47327-0K011 |
— | ||
|
47328
|
47328
47328-0K011
Tube, Rear Brake, No.8
[07.2011 - 12.2015] GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH |
47328-0K011 |
— | ||
|
47351
|
47351
47353-0K010
Bracket, Flexible Hose(For Front Rh)
[07.2011 - 10.2014] GGN15,KUN1#,LAN15,TGN1# |
47353-0K010 |
— | ||
|
47351
|
47351
47353-0K011
Bracket, Flexible Hose(For Front Rh)
[11.2014 -] GGN15,KUN1#,LAN15,TGN1# |
47353-0K011 |
— | ||
|
47352
|
47352
47354-0K010
Bracket, Flexible Hose(For Front Lh)
[07.2011 -] GGN15,KUN1#,LAN15,TGN1# |
47354-0K010 |
— | ||
|
47371A
|
47371A
90949-T1011
Clamp, Brake Tube, No.1
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
90949-T1011 |
— | ||
|
47371C
|
47371C
90461-T0001
Clamp, Brake Tube, No.7
[07.2011 -] KUN25..CO,GCC,GEN,IDN,LA,PKN,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36 ..ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
90461-T0001 |
— | ||
|
47372
|
47372
90949-T1014
Clamp, Brake Tube, No.2
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
90949-T1014 |
— | ||
|
47373B
|
47373B
90949-T1008
Clamp, Brake Tube, No.3
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
90949-T1008 |
— | ||
|
47374B
|
47374B
90949-T1009
Clamp, Brake Tube, No.4
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
90949-T1009 |
— | ||
|
47375
|
47375
90469-T0007
Clamp, Brake Tube, No.5
[07.2011 - 12.2015] KUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN1#,2#,35,LAN15,25,35,TGN1#,2 6,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.1 |
90469-T0007 |
— | ||
|
47375
|
47375
90949-T1006 Clamp, Brake Tube, No.8BRAKE TUBE, NO.5 [07.2011 - 12.2015] KUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN15,16,2#,35,LAN15,25,35,TGN1 5,16,26,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH) NO.2 |
90949-T1006 |
US $1.46 |
||
|
47381J
|
47381J
90949-T2001
Bracket, Brake Tube Clamp, No.2
[07.2011 -] GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
90949-T2001 |
— | ||
|
90119T0029
|
90119T0029
90119-T0029 Bolt (For Transmission Control Cable Bracket) |
90119-T0029 |
US $1.02 |
||
|
90119T0126
|
90119T0126
90119-T0126
BOLT WWASHER
|
90119-T0126 |
— | ||
|
90119T0127
|
90119T0127
90119-T0127
New Genuine Part
|
90119-T0127 |
— | ||
|
90119T0244
|
90119T0244
90119-T0244
BOLT WWASHER
|
90119-T0244 |
— | ||
|
90468T0004
|
90468T0004
90468-T0004
CLIP
|
90468-T0004 |
— | ||
|
9011908868
|
9011908868
90119-08868 BOLT WWASHER |
90119-08868 |
US $1.25 |
