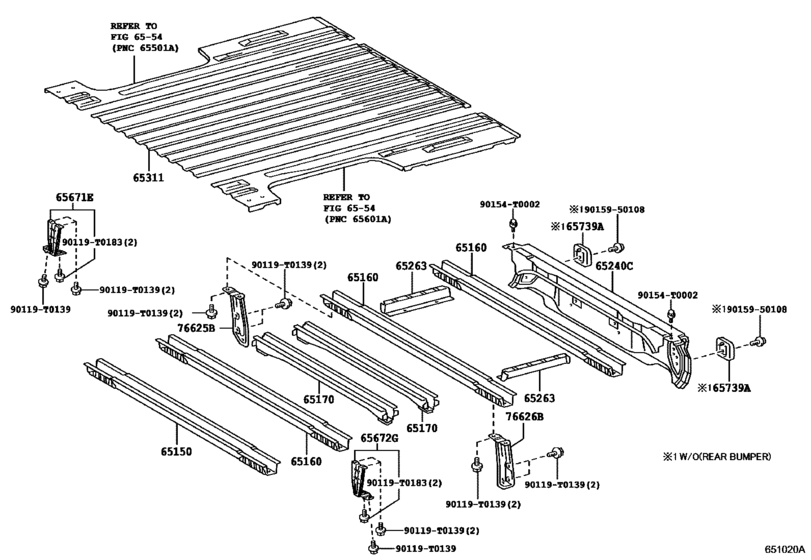

Rear Body Floor & Fender ([07.2011 - ] (1107- )SMT,XTR..DCR,HDCR,HTWC..CBU) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- U.S.A.
- Frame
- KUN15
- grade
- SR
- ENGINE
- 2KDFTV
- DESTINATION
- SA
- DECK
- SD
- CAB
- XTR
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65150
|
65150
65151-0K010
Sill Assy, Cross, No.1
[07.2011 - 12.2015] GGN15,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,MA ,SA,TH)..CBU |
65151-0K010 |
— | ||
|
65160
|
65160
65160-0K010
Sill Assy, Cross, No.2
[07.2011 - 12.2015] KUN10,TGN10,11..CBU;GGN15,KUN15,16,2#,3#,TGN16..(SMT,XTR)..(DCR,HDCR,HTWC)..CBU |
65160-0K010 |
— | ||
|
65170
|
65170
65170-0K010
Sill Assy, Cross, No.2
[07.2011 - 12.2015] KUN26..4FC..CO;GGN15,LAN35,TGN15..CBU;KUN15,LAN25..RHD..(DLX,SR);TGN36..(SCB,THDCB )..(GEN,SA);KUN15..LHD..(GCC,GEN,PHL)..CBU;KUN15,LAN25,TGN16..LHD..SCB..SA;KUN2#,3 #,LAN15,TGN16..(SCB,XTR)..(CNG,DCR,DEFI,HDCR)..(MA,SA,TH);GGN25,KUN10 |
65170-0K010 |
— | ||
|
65240C
|
65240C
65240-0K020
Sill Assy, Cross, No.9
[07.2011 - 06.2015] TGN26..THDCB;KUN35..SR..PHL;KUN26..5FC..SR;KUN35..LHD..GEN;TGN36..LHD..CBU;KUN26.. XTR..SR..ARL;KUN26..5FC..DLX..LA;TGN26..ANCOM,CO,LA,SA;KUN25..(DCB,SMT)..(CO,LA,MA ,TH);KUN35..(DCB,SMT,XTR)..(CO,LA,SA,TH);KUN15,25,LAN25,TGN16..LHD..D |
65240-0K020 |
— | ||
|
65240C
|
65240C
65240-0K021
Sill Assy, Cross, No.9
[07.2015 - 12.2015] KUN25..LHD..DCB..SA;GGN25,35,KUN15,26,3#,LAN15,25,TGN16,26,36..(DCB,SADCB,XTR)..(G EN,SA); KUN25..RHD..DCB..SA REAR BUMPER-FLAT TYPE(STEEL & PAINTED); KUN25..RHD..DCB..SA REAR BUMPER-FLAT TYPE(STEEL & PLATED) |
65240-0K021 |
— | ||
|
65263
|
65263
65263-0K010
Reinforcement, Floor Side Frame
[07.2011 - 12.2015] KUN26..SADCB;LAN15,25..LHD;KUN25..SCB..MA;GGN25,35,KUN15,2#,3#,TGN15,16,26,36..SA |
65263-0K010 |
— | ||
|
65311
|
65311
65311-0K030
Panel, Floor, Center
[07.2011 - 12.2015] GGN15,KUN15,16,2#,3#,TGN16..(SMT,XTR)..(DCR,HDCR,HTWC)..CBU |
65311-0K030 |
— | ||
|
65671E
|
65671E
65608-0K020
Brace, Side Panel Skirt, Front Rh
[07.2011 - 12.2015] LAN15,25..LHD..SCB;KUN15,2#,3#,TGN15,16,36..(SCB,XTR)..SA |
65608-0K020 |
— | ||
|
65672G
|
65672G
65609-0K020
Brace, Side Panel Skirt, Front Lh
[07.2011 - 12.2015] LAN15,25..LHD..SCB;KUN15,2#,3#,TGN15,16,36..(SCB,XTR)..SA |
65609-0K020 |
— | ||
|
76625B
|
76625B
76607-0K040 Mudguard, Rear Body, RhREAR BODY, RH [07.2011 - 12.2015] KUN26..SADCB;LAN15,25..LHD;GGN25,35,KUN15,2#,3#,TGN15,16,26,36..SA |
76607-0K040 |
from US $25.19 |
||
|
76626B
|
76626B
76608-0K040
Mudguard, Rear Body, Lh
[07.2011 - 12.2015] KUN26..SADCB;LAN15,25..LHD;GGN25,35,KUN15,2#,3#,TGN15,16,26,36..SA |
76608-0K040 |
— | ||
|
90119T0139
|
90119T0139
90119-T0139 New Genuine Part |
90119-T0139 |
US $1.24 |
||
|
90119T0183
|
90119T0183
90119-T0183
BOLT WWASHER
|
90119-T0183 |
— | ||
|
90154T0002
|
90154T0002
90154-T0002
New Genuine Part
|
90154-T0002 |
— | ||
|
9015950108
|
9015950108
90159-50108 New Genuine Part |
90159-50108 |
US $0.79 |
