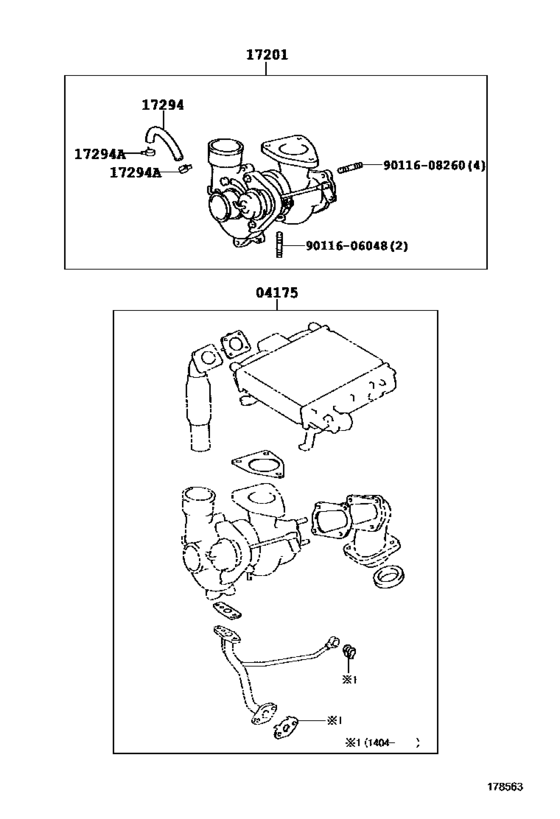

Manifold ([11.2013 - ] *360,EURO 4 REGULATION (1311- )2KDFTV..KUN15,35..DLX..TH) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- KUN15
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- TH
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 07.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-0L121
Gasket Kit, Turbocharger
[07.2011 - 08.2012] 2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH |
04175-0L121 |
— | ||
| replacement | |||||
|
04175
|
04175
04175-0L122
Gasket Kit, Turbocharger
[07.2011 - 08.2012] 2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH |
04175-0L122 |
— | ||
|
04175
|
04175
04175-0L122
Gasket Kit, Turbocharger
[04.2014 - 04.2015] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH *130 |
04175-0L122 |
— | ||
|
04175
|
04175
04175-30141
Gasket Kit, Turbocharger
[11.2013 - 04.2014] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH (J) |
04175-30141 |
— | ||
| replacement | |||||
|
04175
|
04175
04175-30142
Gasket Kit, Turbocharger
[11.2013 - 04.2014] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH (J) |
04175-30142 |
— | ||
|
04175
|
04175
04175-30142
Gasket Kit, Turbocharger
[04.2014 - 04.2015] 2KDFTV..KUN15..SCB..HDCR..GEN; 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH *360 |
04175-30142 |
— | ||
|
17201
|
17201
17201-0L050
Turbocharger Sub-Assy
[07.2011 - 08.2012] 2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH *130,*360 |
17201-0L050 |
— | ||
|
17201
|
17201
17201-0L080
Turbocharger Sub-Assy
[11.2013 - 10.2015] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH *130 |
17201-0L080 |
— | ||
|
17201
|
17201
17201-30141
Turbocharger Sub-Assy
[11.2013 - 04.2015] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH *360 |
17201-30141 |
— | ||
|
17294
|
17294
90445-12251 Hose, Actuator[11.2013 - 04.2015] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH *360 |
90445-12251 |
US $3.49 |
||
|
17294
|
17294
90445-T0011
Hose, Actuator
[07.2011 - 08.2012] 2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH *130,*360 |
90445-T0011 |
— | ||
|
17294A
|
17294A
90466-T0008
Clip(For Actuator Hose)
[07.2011 - 08.2012] 2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH *360; 2KDFTV..KUN35..PHL;2KDFTV..KUN25..SCB..MA *360,(L); 2KDFTV..KUN35..SR..PHL;2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..(PHL, TH) *130 |
90466-T0008 |
— | ||
|
17294A
|
17294A
96132-51100 Clip (For Hose)[11.2013 - 04.2015] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH *360 |
96132-51100 |
from US $1.42 |
||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.66 |
||
|
9011608260
|
9011608260
90116-08260 Bolt, Stud(For Turbine Housing) |
90116-08260 |
US $1.79 |
||
