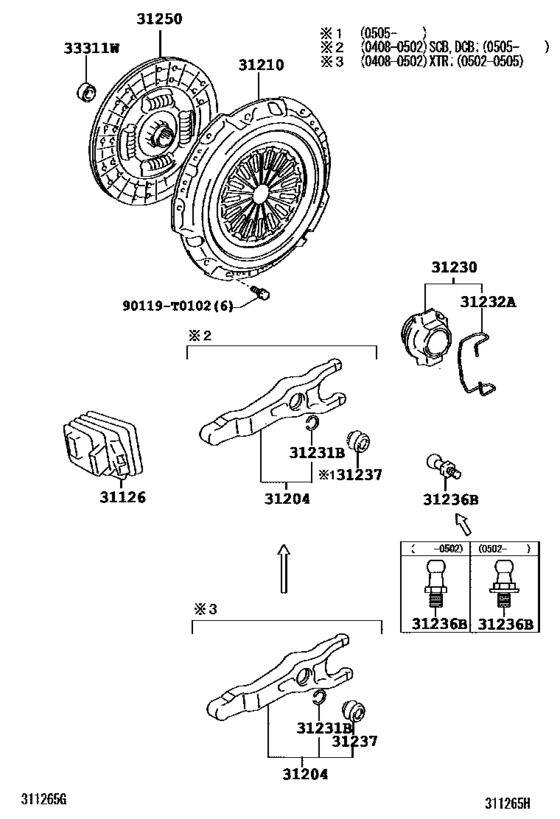

Clutch & Release Fork ([08.2004 - 08.2006] (0408-0608)HDCR..TH ; (0408-0608)KUN16,26,36..5F ..TH) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2004 - 2011
- Sales region
- U.S.A.
- Frame
- KUN16
- grade
- SR
- ENGINE
- 1KDFTV
- DESTINATION
- TH
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2004
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-0K050 Boot, Clutch Release ForkCLUTCH RELEASE FORK [08.2008 - 04.2012] KUN15..SR..SA;KUN10,16,2#,3#..5F;KUN15..GCC,GEN,PHL,TH TYPE D:REFER 33-01 |
31126-0K050 |
US $12.34 |
||
|
31126
|
31126
31126-60081 Boot, Clutch Release Fork[08.2004 - 08.2008] KUN15..XTR..HDCR TYPE A:REFER 33-01; KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
31126-60081 |
from US $12.32 |
||
|
31204
|
31204
31204-0K010
Fork Sub-Assy, Clutch Release
[08.2004 - 02.2005] KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01 |
31204-0K010 |
— | ||
| replacements | |||||
|
31204
|
31204
31204-0K160 Fork Sub-Assy, Clutch Release[08.2004 - 02.2005] KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01 |
31204-0K160 |
US $97.13 |
||
|
31204
|
31204
31236-71011 Support, Release ForkRELEASE FORK [08.2004 - 02.2005] KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01 |
31236-71011 |
from US $14.47 |
||
|
31204
|
31204
31237-60010 Boot, Clutch Release Fork SupportCLUTCH RELEASE FORK SUPPORT [08.2004 - 02.2005] KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01 |
31237-60010 |
from US $2.32 |
||
|
31204
|
31204
31204-0K071
Fork Sub-Assy, Clutch Release
[08.2008 - 04.2012] KUN15..SR..SA;KUN10,16,2#,3#..5F;KUN15..GCC,GEN,PHL,TH TYPE D:REFER 33-01 |
31204-0K071 |
— | ||
| replacement | |||||
|
31204
|
31204
31204-0K180 Fork Sub-Assy, Clutch Release[08.2008 - 04.2012] KUN15..SR..SA;KUN10,16,2#,3#..5F;KUN15..GCC,GEN,PHL,TH TYPE D:REFER 33-01 |
31204-0K180 |
US $98.38 |
||
|
31204
|
31204
31204-0K080
Fork Sub-Assy, Clutch Release
[02.2005 - 05.2005] KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA ,TH) TYPE C:REFER 33-01 |
31204-0K080 |
— | ||
| replacements | |||||
|
31204
|
31204
31204-0K160 Fork Sub-Assy, Clutch Release[02.2005 - 05.2005] KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA ,TH) TYPE C:REFER 33-01 |
31204-0K160 |
US $97.13 |
||
|
31204
|
31204
31237-60010 Boot, Clutch Release Fork SupportCLUTCH RELEASE FORK SUPPORT [02.2005 - 05.2005] KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA ,TH) TYPE C:REFER 33-01 |
31237-60010 |
from US $2.32 |
||
|
31204
|
31204
31204-0K081
Fork Sub-Assy, Clutch Release
[05.2005 - 08.2008] KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
31204-0K081 |
— | ||
| replacement | |||||
|
31204
|
31204
31204-0K160 Fork Sub-Assy, Clutch Release[05.2005 - 08.2008] KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
31204-0K160 |
US $97.13 |
||
|
31204
|
31204
31204-35070
Fork Sub-Assy, Clutch Release
[08.2006 - 08.2008] KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31204-35070 |
— | ||
| replacement | |||||
|
31204
|
31204
31204-35071 Fork Sub-Assy, Clutch Release[08.2006 - 08.2008] KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE A:REFER 33-01,TYPE B:REFER 33-01 |
31204-35071 |
from US $52.59 |
||
|
31210
|
31210
31210-0K070 Cover Assy, ClutchCLUTCH [08.2004 - 08.2008] KUN15..XTR..HDCR;KUN16,26,36..5F..(ARL,GEN,PHL,TH) |
31210-0K070 |
US $346.79 |
||
|
31210
|
31210
31210-0K190 Cover Assy, Clutch[08.2008 - 08.2011] KUN26,36..XTR..SA;KUN16,3#..5F..(ARL,TH);KUN26..5F..(ARL,GEN,IDN,PHL,TH) |
31210-0K190 |
from US $262.74 |
||
|
31230
|
31230
31230-71010 Bearing Assy, Clutch ReleaseCLUTCH RELEASE [08.2004 - 08.2008] KUN15..XTR..HDCR TYPE A:REFER 33-01; KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
31230-71010 |
US $48.05 |
||
| replacement | |||||
|
31230
|
31230
31230-71011 Bearing Assy, Clutch ReleaseCLUTCH RELEASE [08.2004 - 08.2008] KUN15..XTR..HDCR TYPE A:REFER 33-01; KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
31230-71011 |
from US $50.16 |
||
|
31230
|
31230
31230-71011 Bearing Assy, Clutch ReleaseCLUTCH RELEASE [09.2008 - 07.2011] KUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH TYPE A:REFER 33-01 |
31230-71011 |
from US $50.16 |
||
|
31231B
|
31231B
90520-T0031
Ring, Snap(For Clutch Release Hub)
[08.2008 - 07.2011] KUN26..IDN;KUN16..DCB..5F..TH TYPE D:REFER 33-01 |
90520-T0031 |
— | ||
|
31231B
|
31231B
90521-22003 Ring, Snap(For Clutch Release Hub)[08.2004 - 08.2008] KUN15..XTR..HDCR TYPE A:REFER 33-01; KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC) ..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
90521-22003 |
US $1.60 |
||
|
31232A
|
31232A
31232-71010 Clip, Release Bearing HubRELEASE BEARING HUB [08.2004 - 08.2008] KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
31232-71010 |
from US $1.56 |
||
|
31236B
|
31236B
31236-60060 Support, Release Fork[08.2004 - 02.2005] KUN15..DCR; KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01 |
31236-60060 |
from US $10.22 |
||
|
31236B
|
31236B
31236-71010
Support, Release Fork
[02.2005 - 08.2008] KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
31236-71010 |
— | ||
| replacement | |||||
|
31236B
|
31236B
31236-71011 Support, Release ForkRELEASE FORK [02.2005 - 08.2008] KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
31236-71011 |
from US $14.47 |
||
|
31236B
|
31236B
31236-71011 Support, Release ForkRELEASE FORK [11.2008 - 08.2011] KUN26,36..XTR..SA;KUN15,25,35..HDCR..(GCC,GEN,PHL,TH);KUN16,26,36..5F..(ARL,GEN,ID N,PHL,TH) TYPE B:REFER 33-01; KUN15..HDCR;KUN15..DLX..SA;KUN16,2#,3#..5F..TH TYPE A:REFER 33-01 |
31236-71011 |
from US $14.47 |
||
|
31237
|
31237
31237-0K010
Boot, Clutch Release Fork Support
[08.2008 - 07.2011] KUN26..IDN;GGN25..(SCB,XTR)..5F;GGN15,KUN16..DCB..5F..SR TYPE D:REFER 33-01 |
31237-0K010 |
— | ||
|
31237
|
31237
31237-60010 Boot, Clutch Release Fork SupportCLUTCH RELEASE FORK SUPPORT [02.2005 - 08.2008] KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC) ..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
31237-60010 |
from US $2.32 |
||
|
31250
|
31250
31250-0K200
Disc Assy, Clutch
[08.2004 - 09.2004] KUN16,26..5F;KUN15,25..HDCR |
31250-0K200 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-0K205 Disc Assy, Clutch[08.2004 - 09.2004] KUN16,26..5F;KUN15,25..HDCR |
31250-0K205 |
US $213.39 |
||
|
31250
|
31250
31250-0K201
Disc Assy, Clutch
[09.2004 - 08.2005] KUN16,26..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) |
31250-0K201 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-0K205 Disc Assy, Clutch[09.2004 - 08.2005] KUN16,26..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) |
31250-0K205 |
US $213.39 |
||
|
31250
|
31250
31250-0K202
Disc Assy, Clutch
[09.2005 - 10.2005] KUN16,26..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) |
31250-0K202 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-0K205 Disc Assy, Clutch[09.2005 - 10.2005] KUN16,26..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) |
31250-0K205 |
US $213.39 |
||
|
31250
|
31250
31250-0K203
Disc Assy, Clutch
[11.2005 - 06.2006] KUN16,26,36..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) |
31250-0K203 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-0K205 Disc Assy, Clutch[11.2005 - 06.2006] KUN16,26,36..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) |
31250-0K205 |
US $213.39 |
||
|
31250
|
31250
31250-0K204
Disc Assy, Clutch
[07.2006 - 12.2008] KUN16..XTR..TH;KUN25..SCB..MA;KUN25..ANCOM,GCC,GEN;KUN16..(DCB,SCB)..5F;KUN25,36.. (DCB,XTR)..5F..SR..(MA,TH);KUN26..(DCB,SCB,THDCB,XTR)..5F..(ARL,GEN,PHL,TH);KUN15, 35..(DCB,SCB,THDCB,XTR)..HDCR..(ANCOM,GEN,TH) |
31250-0K204 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-0K205 Disc Assy, Clutch[07.2006 - 12.2008] KUN16..XTR..TH;KUN25..SCB..MA;KUN25..ANCOM,GCC,GEN;KUN16..(DCB,SCB)..5F;KUN25,36.. (DCB,XTR)..5F..SR..(MA,TH);KUN26..(DCB,SCB,THDCB,XTR)..5F..(ARL,GEN,PHL,TH);KUN15, 35..(DCB,SCB,THDCB,XTR)..HDCR..(ANCOM,GEN,TH) |
31250-0K205 |
US $213.39 |
||
|
31250
|
31250
31250-0K220
Disc Assy, Clutch
[08.2008 - 07.2010] KUN16,3#..5F..(ARL,TH);KUN26..5F..(ARL,GEN,IDN,PHL,TH) OD=275 |
31250-0K220 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-0K222 Disc Assy, Clutch[08.2008 - 07.2010] KUN16,3#..5F..(ARL,TH);KUN26..5F..(ARL,GEN,IDN,PHL,TH) OD=275 |
31250-0K222 |
from US $154.08 |
||
|
31250
|
31250
31250-0K221
Disc Assy, Clutch
[08.2010 - 08.2011] KUN15,25,35..HDCR..TH;KUN16,26,36..5F..(ARL,GEN,IDN,PHL,SA,TH) OD=275 |
31250-0K221 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-0K222 Disc Assy, Clutch[08.2010 - 08.2011] KUN15,25,35..HDCR..TH;KUN16,26,36..5F..(ARL,GEN,IDN,PHL,SA,TH) OD=275 |
31250-0K222 |
from US $154.08 |
||
|
33311W
|
33311W
90363-T0006 Bearing (For Input Shaft)[08.2004 - 12.2008] KUN16..XTR..TH;KUN25..SCB..MA;KUN25..ANCOM,GCC,GEN;KUN25..(DCB,XTR)..5F..SR;KUN15, 26,36,TGN16,26..(DCB,SCB,THDCB,XTR)..5F..(ARL,GCC,GEN,PHL,TH);KUN10,16,35,TGN10,11 ,15..(DCB,SCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN,IDN,TH) |
90363-T0006 |
from US $4.64 |
||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[08.2004 - 12.2008] KUN16..XTR..TH;KUN25..SCB..MA;KUN25..ANCOM,GCC,GEN;KUN25..(DCB,XTR)..5F..SR;KUN15, 26,36,TGN16,26..(DCB,SCB,THDCB,XTR)..5F..(ARL,GCC,GEN,PHL,TH);KUN10,16,35,TGN10,11 ,15..(DCB,SCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN,IDN,TH) |
90363-12024 |
from US $5.91 |
||
|
90119T0102
|
90119T0102
90119-T0102 Bolt (For Transmission Control Cable Bracket) |
90119-T0102 |
US $0.27 |
||
