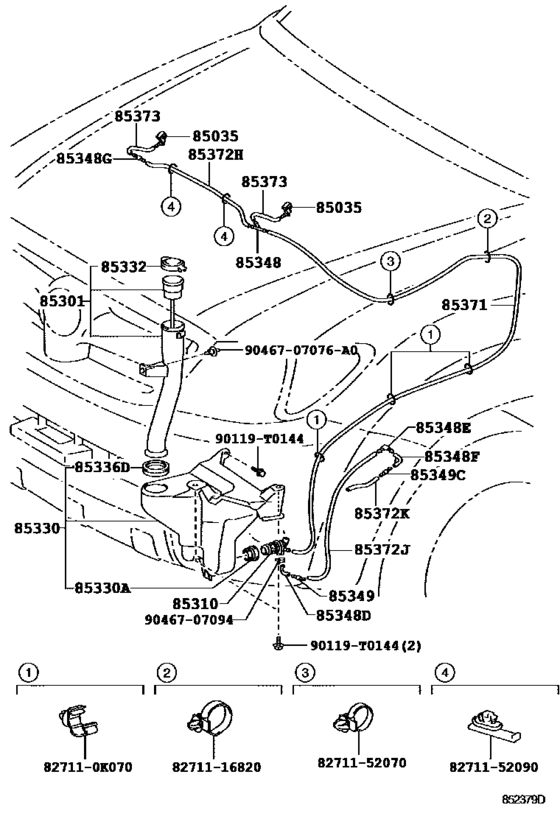

Windshield Washer ([08.2008 - 03.2009] (0808-0903)TH) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2004 - 2011
- Sales region
- U.S.A.
- Frame
- KUN16
- grade
- SR
- ENGINE
- 1KDFTV
- DESTINATION
- TH
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2004
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-0K010 Nozzle Sub-Assy, WasherWASHER [08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
85381-0K010 |
US $13.98 |
||
|
85301
|
85301
85301-0K010 Inlet Sub-Assy, WasherWASHER [08.2004 - 02.2012] KUN26..THDCB;KUN26..DCB..5F..SA;KUN35..DLX..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36 ..RHD..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;K UN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KU |
85301-0K010 |
US $43.49 |
||
|
85301
|
85301
85301-0K150 Inlet Sub-Assy, WasherWASHER [02.2009 - 07.2011] KUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR |
85301-0K150 |
from US $34 |
||
|
85310
|
85310
85330-0D100 Motor And Pump Assy, Windshield WasherWINDSHIELD WASHER [01.2010 - 09.2011] TGN16..SCB..TH;KUN15,16,2#,36..TH;KUN35,TGN16..SR..TH |
85330-0D100 |
US $93.42 |
||
|
85310
|
85310
85330-21010 Motor And Pump Assy, Windshield Washer[08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
85330-21010 |
from US $54.86 |
||
|
85330
|
85330
85315-0K010 Jar Assy, Windshield WasherWINDSHIELD WASHER [08.2004 - 10.2008] TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25 ,KUN10,15,2#,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC ,GEN,IDN,PHL,SA,TH) |
85315-0K010 |
US $50.35 |
||
|
85330A
|
85330A
85336-0K020 Bush, Windshield Washer JarWINDSHIELD WASHER JAR [08.2004 - 10.2008] TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25 ,KUN10,15,2#,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC ,GEN,IDN,PHL,SA,TH) |
85336-0K020 |
US $14.06 |
||
|
85332
|
85332
85316-0K010 Cap, Windshield Washer JarWINDSHIELD WASHER JAR [08.2004 - 02.2012] KUN26..THDCB;KUN26..DCB..5F..SA;KUN35..DLX..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36 ..RHD..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;K UN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KU |
85316-0K010 |
US $4.60 |
||
|
85336D
|
85336D
85336-0K010
Packing, Windshield Washer Jar
[08.2004 - 10.2008] TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25 ,KUN10,15,2#,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC ,GEN,IDN,PHL,SA,TH) |
85336-0K010 |
— | ||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[08.2004 - 03.2009] TGN36..SCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;K UN16,TGN16..XTR..TH;TGN26,36..DCB..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB.. (ANCOM,PHL,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN25,35..DLX..(ANCOM,GCC, |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85378-0K051
Joint, Windshield Washer Hose, No.1
[08.2008 - 07.2011] KUN16..DCB..5F..TH |
85378-0K051 |
— | ||
|
85348D
|
85348D
85317-0K190
Joint, Windshield Washer Elbow, No.1
[08.2008 - 01.2010] KUN15,16,2#,3#,TGN16..TH |
85317-0K190 |
— | ||
|
85348E
|
85348E
85377-0D040
Joint, Windshield Washer Elbow, No.1
[08.2008 - 01.2010] TGN16..5F..TH;KUN15,16,2#,3#..TH |
85377-0D040 |
— | ||
|
85348F
|
85348F
85377-0D081
Joint, Windshield Washer Elbow, No.3
[08.2008 - 01.2010] TGN16..5F..TH;KUN15,16,2#,3#..TH |
85377-0D081 |
— | ||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[08.2004 - 03.2009] TGN36..SCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;K UN16,TGN16..XTR..TH;TGN26,36..DCB..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB.. (ANCOM,PHL,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN25,35..DLX..(ANCOM,GCC, |
85349-89122 |
from US $1.25 |
||
|
85348G
|
85348G
85375-02330
Joint, Windshield Washer Hose, No.1
[08.2008 - 03.2009] KUN15,16,2#,36,TGN16..TH |
85375-02330 |
— | ||
|
85349
|
85349
85375-02330
Joint, Windshield Washer Hose, No.1
[08.2008 - 01.2010] TGN16..5F..TH;KUN15,16,2#,3#..TH |
85375-02330 |
— | ||
|
85349C
|
85349C
85375-02330
Joint, Windshield Washer Hose, No.1
[08.2008 - 01.2010] TGN16..5F..TH;KUN15,16,2#,3#..TH |
85375-02330 |
— | ||
|
85371
|
85371
90068-33019
Hose, Windshield Washer (From Motor To Joint)
[03.2009 - 05.2010] LAN15..PKN L=40; TGN36..5F;TGN36..4FC..DLX;TGN16..DCB,SCB,XTR;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,T GN10,11,15,26..ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,SA,TH L=40 |
90068-33019 |
— | ||
|
85371
|
85371
90068-33108
Hose, Windshield Washer (From Motor To Joint)
[08.2008 - 03.2009] KUN15,16,2#,36,TGN16..TH L=1910 |
90068-33108 |
— | ||
|
85371
|
85371
90068-33158
Hose, Windshield Washer (From Motor To Joint)
[05.2010 - 07.2011] KUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR L=40 |
90068-33158 |
— | ||
| replacement | |||||
|
85371
|
85371
90068-33160 Hose, Windshield Washer (From Motor To Joint)[05.2010 - 07.2011] KUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR L=40 |
90068-33160 |
from US $5.24 |
||
|
85371
|
85371
90099-33803 Hose, Windshield Washer (From Joint To Joint), No.1[08.2004 - 03.2009] TGN36..SCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;K UN16,TGN16..XTR..TH;TGN26,36..DCB..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB.. (ANCOM,PHL,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN25,35..DLX..(ANCOM,GCC, |
90099-33803 |
from US $8 |
||
|
85372H
|
85372H
90068-33106
Hose, Windshield Washer (From Joint To Joint), No.3
[08.2008 - 05.2010] TGN10..IV3;KUN2#,3#..TH;TGN16..5F..TH;KUN35..DLX..PHL;TGN36..4FC..DLX..LA;GGN25,KU N15,16..LA,TH L=510 |
90068-33106 |
— | ||
| replacement | |||||
|
85372H
|
85372H
90068-33157
Hose, Windshield Washer (From Joint To Joint), No.3
[08.2008 - 05.2010] TGN10..IV3;KUN2#,3#..TH;TGN16..5F..TH;KUN35..DLX..PHL;TGN36..4FC..DLX..LA;GGN25,KU N15,16..LA,TH L=510 |
90068-33157 |
— | ||
|
85372H
|
85372H
90068-33157
Hose, Windshield Washer (From Joint To Joint), No.3
[05.2010 - 07.2011] KUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR L=510 |
90068-33157 |
— | ||
|
85372J
|
85372J
90068-59090
Hose, Windshield Washer (From Joint To Joint), No.4
[08.2008 - 01.2010] TGN16..5F..TH;KUN15,16,2#,3#..TH L=1130 |
90068-59090 |
— | ||
|
85372K
|
85372K
90068-33126
Hose, Windshield Washer (From Joint To Joint), No.5
[08.2008 - 01.2010] TGN16..5F..TH;KUN15,16,2#,3#..TH L=30 |
90068-33126 |
— | ||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
90099-33080 |
from US $5.95 |
||
|
90119T0144
|
90119T0144
90119-T0144
Bolt, W/washer(For Engine Under Cover)
|
90119-T0144 |
— | ||
|
827110K070
|
827110K070
82711-0K070
Clamp
|
82711-0K070 |
— | ||
|
8271116820
|
8271116820
82711-16820 Clamp, Hood Lock Control Wire |
82711-16820 |
from US $1.21 |
||
|
8271152070
|
8271152070
82711-52070 Clamp(For Hood Lock Control Cable) |
82711-52070 |
US $1.76 |
||
|
8271152090
|
8271152090
82711-52090 Clamp |
82711-52090 |
from US $0.96 |
||
|
9046707076A0
|
9046707076A0
90467-07076-A0 Clip(For Rear Floor Finish Plate) |
90467-07076-A0 |
US $2.24 |
||
|
9046707094
|
9046707094
90467-07094 Clip, Hose Fuel(For Injection Pump) |
90467-07094 |
US $1.92 |
||
