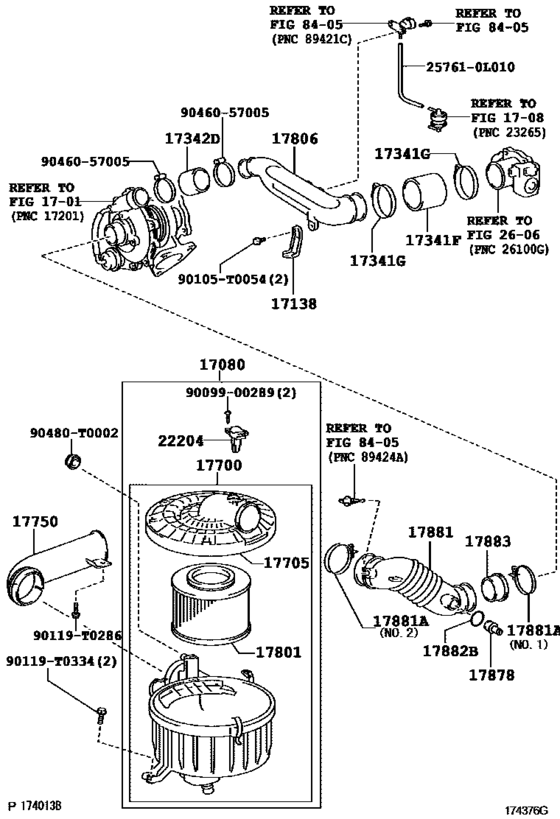

Air Cleaner ([01.2005 - 08.2008] (0501-0808)2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA ,SA ; (0808-0809)2KDFTV..KUN25..MA ; (0808- )2KDF TV..DCB,SCB..ANCOM,GCC,GEN,LA,PKN,SA) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- KUN25
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- GEN
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 02.2005
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17138
|
17138
17138-0L010
Stay, Intake Pipe Or Hose
[08.2004 - 02.2012] 2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..C BU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..D CR..(GCC,GEN,PKN,TH) |
17138-0L010 |
— | ||
|
17341F
|
17341F
17341-30060 Hose, Air, No.1AIR, NO.1 [08.2004 - 02.2012] 2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..C BU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..D CR..(GCC,GEN,PKN,TH) |
17341-30060 |
from US $17.53 |
||
|
17341G
|
17341G
90460-80006 Clamp, Hose[08.2004 - 02.2012] 1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,3 6..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36.. (DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,3 |
90460-80006 |
from US $8.33 |
||
|
17342D
|
17342D
17342-30050 Hose, Air, No.2[08.2004 - 02.2012] 2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..C BU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..D CR..(GCC,GEN,PKN,TH) |
17342-30050 |
from US $17.56 |
||
|
17700
|
17700
17700-0L080
Cleaner Assy, Air
[08.2004 - 07.2005] 2KDFTV..KUN25..GEN,MA;2KDFTV..KUN15..DCR..(GEN,PHL,TH) |
17700-0L080 |
— | ||
| replacement | |||||
|
17700
|
17700
17700-0L082 Cleaner Assy, Air[08.2004 - 07.2005] 2KDFTV..KUN25..GEN,MA;2KDFTV..KUN15..DCR..(GEN,PHL,TH) |
17700-0L082 |
US $449.14 |
||
|
17700
|
17700
17700-0L081
Cleaner Assy, Air
[08.2005 - 05.2007] 2KDFTV..KUN10,25..GCC,GEN,MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH) |
17700-0L081 |
— | ||
| replacement | |||||
|
17700
|
17700
17700-0L082 Cleaner Assy, Air[08.2005 - 05.2007] 2KDFTV..KUN10,25..GCC,GEN,MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH) |
17700-0L082 |
US $449.14 |
||
|
17700
|
17700
17700-0L082 Cleaner Assy, Air[06.2007 - 02.2012] 2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10 ,25,35..GCC,GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
17700-0L082 |
US $449.14 |
||
|
17705
|
17705
17705-0L050
Cap Sub-Assy, Air Cleaner
[08.2004 - 02.2012] 2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10 ,25,35..GCC,GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
17705-0L050 |
— | ||
|
17750
|
17750
17751-0L010 Cover Assy, Air Cleaner Inlet, SealAIR CLEANER INLET, SEAL [08.2004 - 02.2012] 1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN15..PHL..CBU;1KDFTV,2KDFT V..KUN10,26,35..LHD..(GCC,GEN);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV.. KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,TH);1KDFTV,2KDFTV..KUN15,3 |
17751-0L010 |
from US $22.52 |
||
|
17801
|
17801
17801-0C010 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [08.2004 - 02.2012] 1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,3 6..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36.. (DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,3 |
17801-0C010 |
from US $48.50 |
||
|
17806
|
17806
17113-0L020
Pipe, Intake, No.1
[08.2004 - 02.2012] 2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25,35..DLX..(GCC,GEN,SA);2 KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC, GEN,PKN,TH) |
17113-0L020 |
— | ||
|
17878
|
17878
17878-0L010
Pipe, Intake Air Connector, No.3
[08.2004 - 07.2006] 2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
17878-0L010 |
— | ||
|
17878
|
17878
17878-0L011
Pipe, Intake Air Connector, No.3
[07.2006 - 02.2012] 2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..C BU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..D CR..(GCC,GEN,PKN,TH) |
17878-0L011 |
— | ||
|
17881
|
17881
17881-0L050
Hose, Air Cleaner, No.1
[08.2004 - 12.2005] 2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
17881-0L050 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-0L051 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [08.2004 - 12.2005] 2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
17881-0L051 |
from US $60.86 |
||
|
17881
|
17881
17881-0L051 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [01.2006 - 07.2006] 2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
17881-0L051 |
from US $60.86 |
||
|
17881
|
17881
17881-0L052 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [07.2006 - 02.2012] 2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..C BU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..D CR..(GCC,GEN,PKN,TH) |
17881-0L052 |
US $56.18 |
||
|
17881A
|
17881A
90460-T0004
Clamp(For Air Cleaner Hose, No.1)
[08.2004 - 02.2012] 2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..C BU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..D CR..(GCC,GEN,PKN,TH) NO.1 |
90460-T0004 |
— | ||
|
17881A
|
17881A
90460-T0005 Clamp(For Intake Air Connector)NO.1) [08.2004 - 02.2012] 2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..C BU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..D CR..(GCC,GEN,PKN,TH) NO.2 |
90460-T0005 |
US $2.46 |
||
|
17882B
|
17882B
90467-31110 Clip(For Load Sensing Valve Boot)[08.2004 - 02.2012] 2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..C BU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..D CR..(GCC,GEN,PKN,TH) |
90467-31110 |
US $2.15 |
||
|
17883
|
17883
17883-0L010 Hose, Air, No.1AIR, NO.1 [08.2004 - 02.2012] 2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..C BU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..D CR..(GCC,GEN,PKN,TH) |
17883-0L010 |
US $8.60 |
||
|
90105T0054
|
90105T0054
90105-T0054
New Genuine Part
|
90105-T0054 |
— | ||
|
90119T0286
|
90119T0286
90119-T0286
New Genuine Part
|
90119-T0286 |
— | ||
|
90119T0334
|
90119T0334
90119-T0334
BOLT WWASHER
|
90119-T0334 |
— | ||
|
90480T0002
|
90480T0002
90480-T0002 GROMMET |
90480-T0002 |
from US $1.60 |
||
| replacement | |||||
|
90480T0002
|
90480T0002
90480-30044 GROMMET |
90480-30044 |
from US $2.42 |
||
|
257610L010
|
257610L010
25761-0L010
Hose, Vaccum Transmitting, No.1
|
25761-0L010 |
— | ||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.66 |
||
|
9046057005
|
9046057005
90460-57005 Clamp Or Clip(For Air Hose, No.2) |
90460-57005 |
US $5.56 |
||
