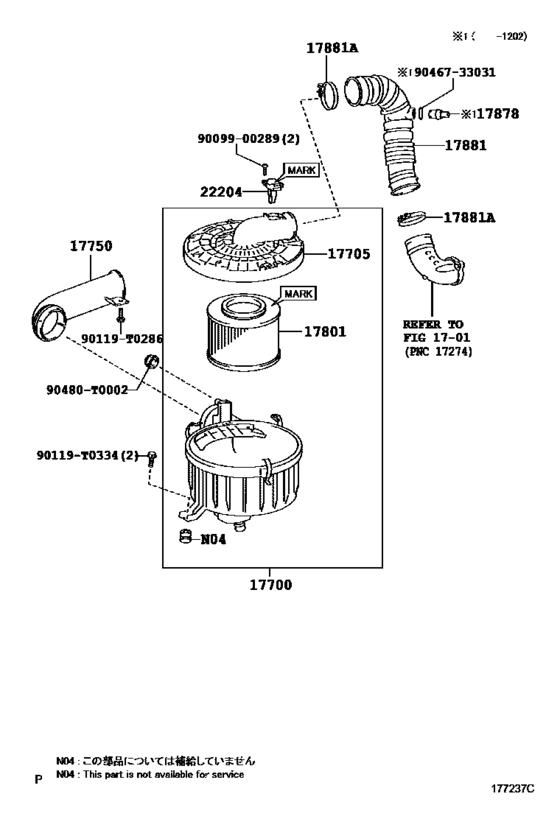

Air Cleaner ([07.2011 - ] (1107- )1KDFTV,2KDFTV..DCB,SCB) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- Europe
- Frame
- KUN26
- grade
- SR
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5FC
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-0L171
Cleaner Assy, Air
[08.2011 - 12.2015] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU RUSSIA & UKRAINE SPEC |
17700-0L171 |
— | ||
|
17700
|
17700
17700-0L260
Cleaner Assy, Air
[08.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35..DCB,SCB |
17700-0L260 |
— | ||
|
17705
|
17705
17705-0L140
Cap Sub-Assy, Air Cleaner
[08.2011 - 12.2015] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU RUSSIA & UKRAINE SPEC |
17705-0L140 |
— | ||
|
17705
|
17705
17705-0L230
Cap Sub-Assy, Air Cleaner
[08.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35..DCB,SCB |
17705-0L230 |
— | ||
|
17750
|
17750
17751-0L030
Cover Assy, Air Cleaner Inlet, Seal
[08.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35..DCB,SCB |
17751-0L030 |
— | ||
|
17801
|
17801
17801-0C010 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [08.2011 - 12.2015] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU RUSSIA & UKRAINE SPEC,MARK 17801-0C010 |
17801-0C010 |
from US $48.50 |
||
|
17801
|
17801
17801-0C020
Element Sub-Assy, Air Cleaner Filter
[08.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35..DCB,SCB; 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU RUSSIA & UKRAINE SPEC,MARK 17801-0C020 |
17801-0C020 |
— | ||
| replacement | |||||
|
17801
|
17801
17801-0C010 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [08.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35..DCB,SCB; 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU RUSSIA & UKRAINE SPEC,MARK 17801-0C020 |
17801-0C010 |
from US $48.50 |
||
|
17878
|
17878
17878-0L040
Pipe, Intake Air Connector, No.3
[07.2011 - 02.2012] 1KDFTV,2KDFTV..KUN2#,35 |
17878-0L040 |
— | ||
|
17881
|
17881
17881-0L110 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [02.2012 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
17881-0L110 |
US $89.17 |
||
|
17881
|
17881
17881-0L180
Hose, Air Cleaner, No.1
[07.2011 - 02.2012] 1KDFTV,2KDFTV..KUN2#,35 |
17881-0L180 |
— | ||
|
17881A
|
17881A
90460-T0005 Clamp(For Intake Air Connector)NO.1) [07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
90460-T0005 |
US $2.46 |
||
|
22204
|
22204
22204-0L010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [08.2011 - 10.2015] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU RUSSIA & UKRAINE SPEC,MARK 22204-0L010 |
22204-0L010 |
US $153.08 |
||
|
22204
|
22204
22204-0N010
Meter Sub-Assy, Intake Air Flow
[08.2011 - 10.2015] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU RUSSIA & UKRAINE SPEC,MARK 22204-0N010 |
22204-0N010 |
— | ||
| replacement | |||||
|
22204
|
22204
22204-0L010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [08.2011 - 10.2015] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU RUSSIA & UKRAINE SPEC,MARK 22204-0N010 |
22204-0L010 |
US $153.08 |
||
|
22204
|
22204
22204-30020 Meter Sub-Assy, Intake Air Flow[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
22204-30020 |
from US $136.95 |
||
|
90119T0286
|
90119T0286
90119-T0286
New Genuine Part
|
90119-T0286 |
— | ||
|
90119T0334
|
90119T0334
90119-T0334
BOLT WWASHER
|
90119-T0334 |
— | ||
|
90480T0002
|
90480T0002
90480-T0002 GROMMET |
90480-T0002 |
from US $1.60 |
||
| replacement | |||||
|
90480T0002
|
90480T0002
90480-30044 GROMMET |
90480-30044 |
from US $2.42 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.66 |
||
|
9046733031
|
9046733031
90467-33031 Clip, Dust Cover |
90467-33031 |
US $1.75 |
||
