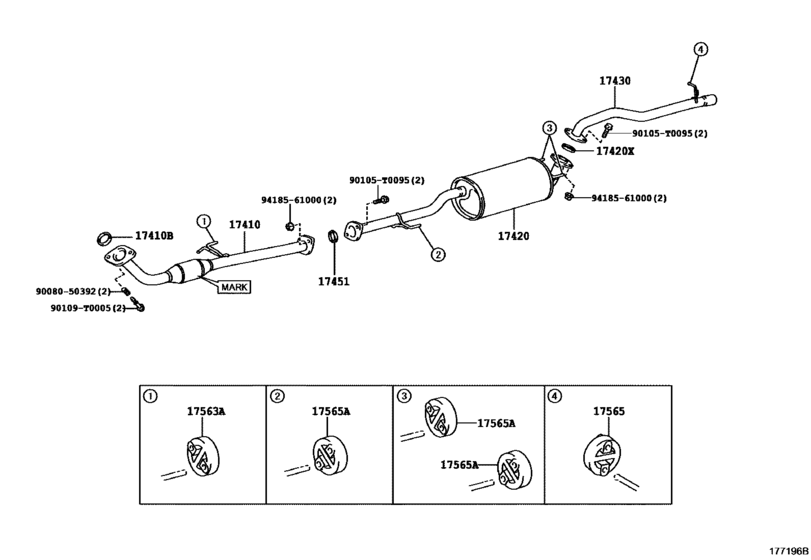

Exhaust Pipe ([07.2011 - ] RUSSIA & UKURAINE OR MOROCCO SPEC (1107- )1KDFTV..LHD..DCB..SR ; (1107- )2KD FTV..KUN25..LHD..DCB,THDCB..CBU ; ( 1208-1308)2KDFTV. .KUN35..THSCB) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- Europe
- Frame
- KUN26
- grade
- SR
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5FC
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-0L110 Pipe Assy, Exhaust, Front[07.2011 - 06.2014] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU *114=TOYOTA/AG6/Y,RUSSIA & UKRAINE SPEC,MARK=5F |
17401-0L110 |
US $1,438.53 |
||
|
17410
|
17410
17401-0L111
Pipe Assy, Exhaust, Front
[06.2014 - 12.2015] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU *114=TOYOTA/AG6/Y,RUSSIA & UKRAINE SPEC,MARK=5M |
17401-0L111 |
— | ||
|
17410
|
17410
17410-0L040
Pipe Assy, Exhaust, Front
[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 *114=TOYOTA/ZB3/Y |
17410-0L040 |
— | ||
|
17410B
|
17410B
17451-0L010 Gasket, Exhaust PipeEXHAUST PIPE [07.2011 - 12.2015] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
17451-0L010 |
US $19.66 |
||
|
17420
|
17420
17403-0L061 Pipe Assy, Exhaust, Center[07.2011 - 06.2014] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU RUSSIA & UKRAINE SPEC |
17403-0L061 |
US $387.74 |
||
|
17420
|
17420
17403-0L063
Pipe Assy, Exhaust, Center
[06.2014 - 12.2015] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU RUSSIA & UKRAINE SPEC |
17403-0L063 |
— | ||
|
17420
|
17420
17403-0L101
Pipe Assy, Exhaust, Center
[07.2011 - 06.2014] 1KDFTV,2KDFTV..KUN2#,35..DCB,SCB |
17403-0L101 |
— | ||
|
17420
|
17420
17403-0L102
Pipe Assy, Exhaust, Center
[06.2014 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35..DCB,SCB |
17403-0L102 |
— | ||
|
17420X
|
17420X
90917-T6002 Gasket, Exhaust Pipe, Center[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
90917-T6002 |
US $9.46 |
||
|
17430
|
17430
17405-0L111
Pipe Assy, Exhaust, Tail
[07.2011 - 06.2014] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU RUSSIA & UKRAINE SPEC |
17405-0L111 |
— | ||
|
17430
|
17430
17405-0L112
Pipe Assy, Exhaust, Tail
[06.2014 - 12.2015] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..DCB..CBU RUSSIA & UKRAINE SPEC |
17405-0L112 |
— | ||
|
17430
|
17430
17405-0L141
Pipe Assy, Exhaust, Tail
[07.2011 - 06.2014] 1KDFTV,2KDFTV..KUN2#,35..DCB,SCB |
17405-0L141 |
— | ||
|
17430
|
17430
17405-0L143
Pipe Assy, Exhaust, Tail
[06.2014 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35..DCB,SCB |
17405-0L143 |
— | ||
|
17451
|
17451
17451-0C010 Gasket, Exhaust Pipe[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
17451-0C010 |
US $18.43 |
||
|
17451
|
17451
90917-T6002 Gasket, Exhaust Pipe, Center[07.2011 - 12.2015] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
90917-T6002 |
US $9.46 |
||
|
17563A
|
17563A
17565-0M010 Support, Exhaust Pipe, No.3[07.2011 - 12.2015] 1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
17565-0M010 |
US $3.59 |
||
|
17565
|
17565
17565-0M010 Support, Exhaust Pipe, No.3[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
17565-0M010 |
US $3.59 |
||
|
17565A
|
17565A
17565-0M010 Support, Exhaust Pipe, No.3[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
17565-0M010 |
US $3.59 |
||
|
90105T0095
|
90105T0095
90105-T0095 BOLTFLANGE |
90105-T0095 |
US $1.40 |
||
|
90109T0005
|
90109T0005
90109-T0005 BOLT |
90109-T0005 |
US $2.63 |
||
|
9008050392
|
9008050392
90080-50392 Spring, Exhaust Pipe |
90080-50392 |
US $4.43 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.96 |
