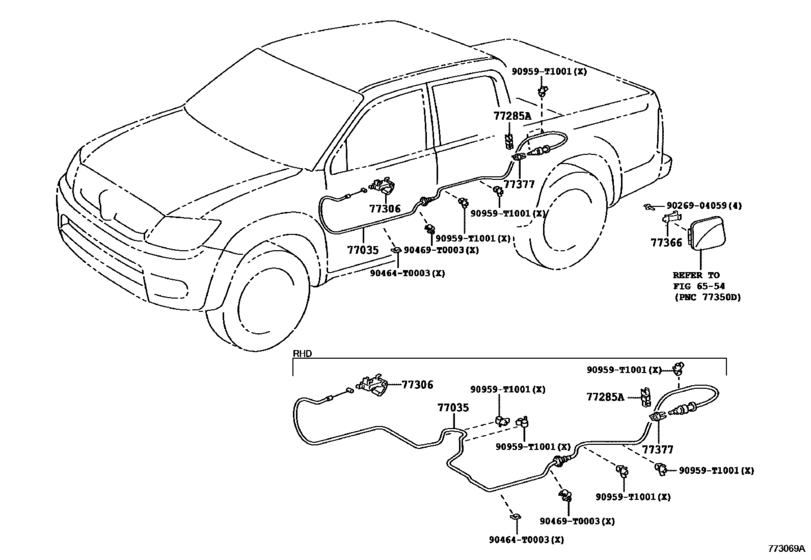

Fuel Tank & Tube ([07.2011 - ] FUEL LID OPENER (1107- )CBU) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- Europe
- Frame
- KUN26
- grade
- SR
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5FC
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77035
|
77035
77035-0K130 Cable Sub-Assy, Fuel Lid Lock ControlFUEL LID LOCK CONTROL [08.2012 - 12.2015] KUN2#,35..LHD..DCB..CBU |
77035-0K130 |
US $22 |
||
|
77035
|
77035
77035-0K320
Cable Sub-Assy, Fuel Lid Lock Control
[08.2011 - 08.2012] KUN2#,35..LHD..DCB..CBU |
77035-0K320 |
— | ||
| replacement | |||||
|
77035
|
77035
77035-0K130 Cable Sub-Assy, Fuel Lid Lock ControlFUEL LID LOCK CONTROL [08.2011 - 08.2012] KUN2#,35..LHD..DCB..CBU |
77035-0K130 |
US $22 |
||
|
77285A
|
77285A
77285-0K190 Support, Fuel Return And Main TubeFUEL RETURN AND MAIN TUBE [07.2011 - 12.2015] KUN2#,35..CBU |
77285-0K190 |
from US $1.31 |
||
|
77306
|
77306
77306-0K030
Lever Sub-Assy, Fuel Lid Lock Open
[08.2011 - 12.2015] KUN2#,35..(DCB,SCB)..CBU |
77306-0K030 |
— | ||
|
77366
|
77366
77360-0K030 Spring, Fuel Filler Opening Lid HingeFUEL FILLER OPENING LID HINGE [07.2011 - 12.2015] KUN2#,35..CBU |
77360-0K030 |
US $3.41 |
||
|
77377
|
77377
77377-0K010 Retainer, Fuel Filler Opening Lid LockFUEL FILLER OPENING LID LOCK [07.2011 - 12.2015] KUN2#,35..CBU |
77377-0K010 |
from US $2.07 |
||
|
90464T0003
|
90464T0003
90464-T0003
New Genuine Part
|
90464-T0003 |
— | ||
|
90469T0003
|
90469T0003
90469-T0003
Clamp(For Hood Lock Control Cable)
|
90469-T0003 |
— | ||
|
90959T1001
|
90959T1001
90959-T1001 CLAMP |
90959-T1001 |
US $1.44 |
||
|
9026904059
|
9026904059
90269-04059 RIVET |
90269-04059 |
from US $0.78 |
||
