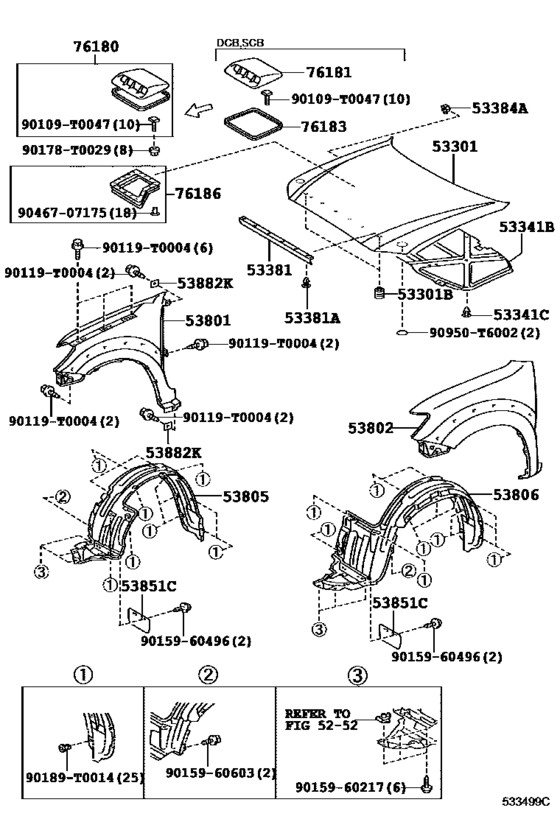

Hood & Front Fender ([07.2011 - ] (1107- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- Europe
- Frame
- KUN26
- grade
- SR
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5FC
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-0K110
Hood Sub-Assy
[07.2011 - 09.2011] KUN2#,35..DCB,SCB |
53301-0K110 |
— | ||
| replacement | |||||
|
53301
|
53301
53301-0K111 Hood Sub-Assy[07.2011 - 09.2011] KUN2#,35..DCB,SCB |
53301-0K111 |
from US $419.74 |
||
|
53301
|
53301
53301-0K111 Hood Sub-Assy[09.2011 - 12.2015] KUN2#,35 |
53301-0K111 |
from US $419.74 |
||
|
53301B
|
53301B
90541-09143 Cushion, Front Door Panel[07.2011 - 12.2015] KUN2#,35 |
90541-09143 |
from US $1.74 |
||
|
53341B
|
53341B
53341-0K150
Insulator, Hood
[07.2011 - 12.2015] KUN2#,35 |
53341-0K150 |
— | ||
|
53341C
|
53341C
90467-T0014 Clip(For Hood Insulator)[07.2011 - 12.2015] KUN2#,35 |
90467-T0014 |
US $0.90 |
||
|
53381
|
53381
53381-0K010 Seal, Hood To Radiator SupportHOOD TO RADIATOR SUPPORT [07.2011 - 12.2015] KUN2#,35 |
53381-0K010 |
from US $13.28 |
||
|
53381A
|
53381A
90467-T0013 Clip(For Headlamp Cover Seal)[07.2011 - 12.2015] KUN2#,35 |
90467-T0013 |
US $0.90 |
||
|
53384A
|
53384A
53384-0K010 Bumper, Fender To HoodFENDER TO HOOD [07.2011 - 12.2015] KUN2#,35 |
53384-0K010 |
from US $4.31 |
||
|
53801
|
53801
53811-0K110 Fender Sub-Assy, Front Rh[07.2011 - 12.2015] KUN2#,35..(DCB,THDCB,XTR)..SR |
53811-0K110 |
from US $152.43 |
||
|
53802
|
53802
53812-0K110 Fender Sub-Assy, Front Lh[07.2011 - 12.2015] KUN2#,35..(DCB,THDCB,XTR)..SR |
53812-0K110 |
US $82.19 |
||
|
53805
|
53805
53805-0K050 Shield Sub-Assy, Front Fender Splash, Rh[07.2011 - 12.2015] KUN2#,35 |
53805-0K050 |
from US $39.62 |
||
|
53806
|
53806
53806-0K070 Shield Sub-Assy, Front Fender Splash, Lh[07.2011 - 12.2015] KUN2#,35 |
53806-0K070 |
from US $42.69 |
||
|
53851C
|
53851C
53851-0K070 Pad, Front Wheel Opening Extension, No.1FRONT WHEEL OPENING EXTENSION, NO.1 [07.2011 - 12.2015] KUN2#,35 |
53851-0K070 |
from US $21.68 |
||
|
53882K
|
53882K
53882-0D010 Seal, Front FenderFRONT FENDER [07.2011 - 02.2014] KUN2#,35 |
53882-0D010 |
US $0.73 |
||
|
53882K
|
53882K
53882-0K020
Seal, Front Fender
[03.2014 - 12.2015] KUN2#,35 |
53882-0K020 |
— | ||
|
76181
|
76181
76181-0K904 Bulge, Hood[08.2011 - 12.2015] KUN2#,35..DCB,SCB |
76181-0K904 |
US $109.88 |
||
|
76183
|
76183
76183-0K020
Protector, Hood Bulge, No.1
[08.2011 - 12.2015] KUN2#,35..DCB,SCB |
76183-0K020 |
— | ||
|
76186
|
76186
76186-0K030 Seal, Hood Air Intake[07.2011 - 12.2015] KUN26..LHD..DCB..SR;KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
76186-0K030 |
US $42.80 |
||
|
76186
|
76186
76186-0K040
Seal, Hood Air Intake
[07.2011 - 12.2015] KUN2#,35 |
76186-0K040 |
— | ||
|
90109T0047
|
90109T0047
90109-T0047 BOLT |
90109-T0047 |
US $0.70 |
||
|
90119T0004
|
90119T0004
90119-T0004 BOLTWWSH |
90119-T0004 |
US $0.21 |
||
|
90178T0029
|
90178T0029
90178-T0029 New Genuine Part |
90178-T0029 |
US $0.61 |
||
|
90189T0014
|
90189T0014
90189-T0014 GROMMET, SCREW |
90189-T0014 |
US $0.66 |
||
|
90950T6002
|
90950T6002
90950-T6002
Plug, Hole(For Hood)
|
90950-T6002 |
— | ||
|
9015960217
|
9015960217
90159-60217 SCREW |
90159-60217 |
from US $1.19 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.62 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.64 |
||
|
9046707175
|
9046707175
90467-07175 CLIP |
90467-07175 |
from US $1.01 |
||
