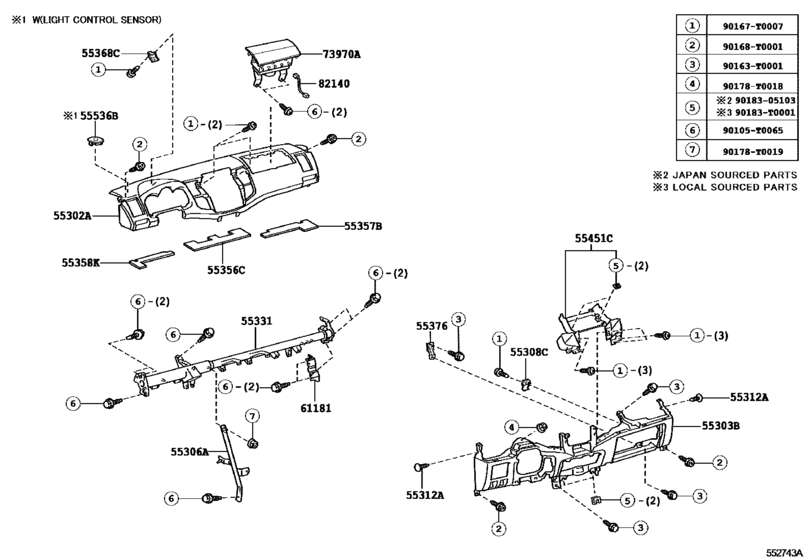

Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )LHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- Europe
- Frame
- KUN26
- grade
- SR
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5FC
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55302A
|
55302A
55302-0K020-B0
Panel Sub-Assy, Instrument, Upper
[07.2011 - 04.2014] KUN26..LHD..DLX;KUN25,35..LHD..(DCB,SCB) DK.GRAY,TRIM1#; KUN26..LHD..DCB..SR NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND,DK.GRAY,TRIM1# |
55302-0K020-B0 |
— | ||
|
55302A
|
55302A
55302-0K020-C0 Panel Sub-Assy, Instrument, Upper[10.2013 - 12.2015] KUN26..LHD..DLX;KUN25,35..LHD..(DCB,SCB) BLACK,TRIM2#; KUN26..LHD..DCB..SR NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND,BLACK,TRIM2#; KUN25..LHD..DCB..SR NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&DIFFERENTIAL LOCK-WITH&AIR CONDITIONER-AUTO AIR CO |
55302-0K020-C0 |
US $245.12 |
||
|
55302A
|
55302A
55302-0K180-B0
Panel Sub-Assy, Instrument, Upper
[07.2011 - 10.2013] KUN26..LHD..DCB..SR DK.GRAY,TRIM1# |
55302-0K180-B0 |
— | ||
|
55302A
|
55302A
55302-0K180-C0
Panel Sub-Assy, Instrument, Upper
[10.2013 - 12.2015] KUN26..LHD..DCB..SR BLACK,TRIM2#; KUN25..LHD..DCB..SR AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE,BLACK,TRIM2#; KUN35..DCB..SR AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE&MULTI INFORMATION DISPLAY-WITH,BLACK,T RIM2# |
55302-0K180-C0 |
— | ||
|
55303B
|
55303B
55303-0K020-B1 Panel Sub-Assy, Instrument, Lower[07.2011 - 12.2015] KUN2#,35..LHD MD.GRAY,TRIM1# |
55303-0K020-B1 |
US $214.60 |
||
|
55303B
|
55303B
55303-0K020-C0
Panel Sub-Assy, Instrument, Lower
[08.2013 - 12.2015] KUN2#,35..LHD BLACK,TRIM2# |
55303-0K020-C0 |
— | ||
|
55306A
|
55306A
55306-0K020
Brace Sub-Assy, Instrument Panel, No.1
[07.2011 - 12.2015] KUN2#,35..LHD |
55306-0K020 |
— | ||
|
55308C
|
55308C
55308-0K020 Bracket Sub-Assy, Instrument Panel, CenterINSTRUMENT PANEL, CENTER [07.2011 - 12.2015] KUN2#,35..LHD |
55308-0K020 |
US $4.52 |
||
|
55312A
|
55312A
90467-T0002-B1
Clip, Instrument Panel
[07.2011 - 12.2015] KUN2#,35..LHD MD.GRAY,TRIM1# |
90467-T0002-B1 |
— | ||
|
55312A
|
55312A
90467-T0002-C0
Clip, Instrument Panel
[08.2013 - 12.2015] KUN2#..RHD BLACK,TRIM2#,*299; KUN2#,35..LHD BLACK,TRIM2# |
90467-T0002-C0 |
— | ||
|
55331
|
55331
55330-0K440
Reinforcement, Instrument Panel
[07.2011 - 12.2015] KUN26..LHD..5FC |
55330-0K440 |
— | ||
|
55356C
|
55356C
55356-0K010
Cushion, Instrument Panel, No.2
[08.2011 - 12.2015] KUN2#,35..DCB,SCB |
55356-0K010 |
— | ||
|
55357B
|
55357B
55358-0K020
Cushion, Instrument Panel, No.3
[08.2011 - 12.2015] KUN26..DLX;KUN25,35..DCB,SCB;KUN26..LHD..DCB..SR |
55358-0K020 |
— | ||
|
55358K
|
55358K
55358-0K010
Cushion, Instrument Panel, No.4
[08.2011 - 12.2015] KUN26..RHD;KUN26..LHD..DLX;KUN25,35..DCB,SCB; KUN26..LHD..DCB..SR NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND; KUN25..LHD..DCB..SR NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&DIFFERENTIAL LOCK-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE; KUN2 |
55358-0K010 |
— | ||
|
55358K
|
55358K
55358-0K050
Cushion, Instrument Panel, No.4
[07.2011 - 12.2015] KUN26..LHD..SR |
55358-0K050 |
— | ||
|
55368C
|
55368C
55368-0K010
Bracket, Meter Mounting
[07.2011 - 12.2015] KUN2#,35 |
55368-0K010 |
— | ||
|
55376
|
55376
55376-0K010
Bracket, Instrument Panel Mounting, No.1
[07.2011 - 12.2015] KUN2#,35 |
55376-0K010 |
— | ||
|
55451C
|
55451C
55451-0K040
Box, Instrument Panel, No.1
[07.2011 - 12.2015] KUN2#,35 |
55451-0K040 |
— | ||
|
55536B
|
55536B
55536-0K010-B0
Cover, Light Control Switch Hole
[07.2011 - 10.2013] KUN26..DCB..SR DK.GRAY,TRIM1# |
55536-0K010-B0 |
— | ||
|
55536B
|
55536B
55536-0K010-C0
Cover, Light Control Switch Hole
[10.2013 - 12.2015] KUN26..LHD..DCB..SR BLACK,TRIM2#; KUN25..LHD..DCB..SR AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE,BLACK,TRIM2#; KUN35..DCB..SR AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE&MULTI INFORMATION DISPLAY-WITH,BLACK,T RIM2# |
55536-0K010-C0 |
— | ||
|
61181
|
61181
61181-0K020
Bracket, Instrument Panel Side
[07.2011 - 12.2015] KUN2#,35..LHD |
61181-0K020 |
— | ||
|
73970A
|
73970A
73970-0K080-B0
Air Bag Assy, Instrument Panel Passenger
[08.2011 - 05.2013] KUN2#,35..LHD..(DCB,SCB) DK.GRAY,TRIM1# |
73970-0K080-B0 |
— | ||
|
73970A
|
73970A
73970-0K081-B0
Air Bag Assy, Instrument Panel Passenger
[06.2013 - 10.2013] KUN2#,35..LHD..(DCB,SCB) DK.GRAY,TRIM1# |
73970-0K081-B0 |
— | ||
|
73970A
|
73970A
73970-0K081-C0
Air Bag Assy, Instrument Panel Passenger
[10.2013 - 12.2015] KUN2#,35..LHD..(DCB,SCB) BLACK,TRIM2# |
73970-0K081-C0 |
— | ||
|
82140
|
82140
82140-0K020 Wire Assy, Instrument PanelINSTRUMENT PANEL [07.2011 - 12.2015] KUN2#,35..LHD |
82140-0K020 |
US $9.48 |
||
|
90105T0065
|
90105T0065
90105-T0065
New Genuine Part
|
90105-T0065 |
— | ||
|
90163T0001
|
90163T0001
90163-T0001
SCREW HEXAGON TAPPI
|
90163-T0001 |
— | ||
|
90167T0007
|
90167T0007
90167-T0007 Screw,pan Tapping |
90167-T0007 |
from US $0.21 |
||
|
90168T0001
|
90168T0001
90168-T0001
New Genuine Part
|
90168-T0001 |
— | ||
|
90178T0018
|
90178T0018
90178-T0018 NUT FLANGE |
90178-T0018 |
US $0.76 |
||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.80 |
||
|
90183T0001
|
90183T0001
90183-T0001
New Genuine Part
|
90183-T0001 |
— | ||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
