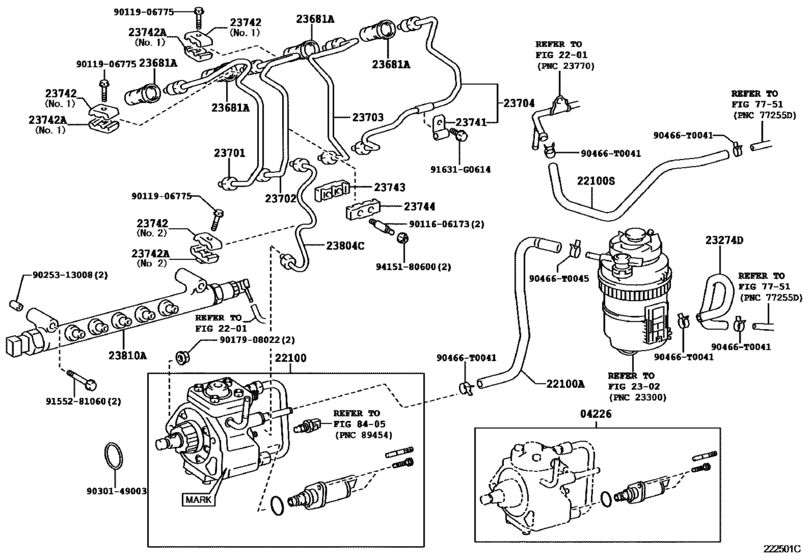

Injection Pump Assembly ([01.2008 - ] (0801- )1KDFTV) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2006 - 2008
- Sales region
- Europe
- Frame
- KUN26
- grade
- SR
- ENGINE
- 1KDFTV
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 10.2006
- To
- 10.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04226
|
04226
04226-30010 Valve Kit, Suction Control[08.2006 - 01.2008] 1KDFTV..KUN26 *163 OR *184 |
04226-30010 |
from US $273.04 |
||
|
04226
|
04226
04226-30020 Valve Kit, Suction ControlSUCTION CONTROL [01.2008 - 10.2008] 1KDFTV..KUN26..4FC,5F *163 OR *184 |
04226-30020 |
from US $194.73 |
||
|
22100
|
22100
22100-30040 Pump Assy, Injection Or Supply[08.2006 - 01.2008] 1KDFTV..KUN26 *163 OR *184 |
22100-30040 |
US $2,402.40 |
||
| replacement | |||||
|
22100
|
22100
22100-30090 Pump Assy, Injection Or Supply[08.2006 - 01.2008] 1KDFTV..KUN26 *163 OR *184 |
22100-30090 |
from US $1,687.26 |
||
|
22100
|
22100
22100-30090 Pump Assy, Injection Or Supply[01.2008 - 05.2008] 1KDFTV..KUN26 *163 OR *184 |
22100-30090 |
from US $1,687.26 |
||
|
22100
|
22100
22100-30100 Pump Assy, Injection Or Supply[05.2008 - 10.2008] 1KDFTV,2KDFTV..KUN15,2#..4FC,5F *163 OR *184 |
22100-30100 |
US $2,402.40 |
||
| replacement | |||||
|
22100
|
22100
22100-30090 Pump Assy, Injection Or Supply[05.2008 - 10.2008] 1KDFTV,2KDFTV..KUN15,2#..4FC,5F *163 OR *184 |
22100-30090 |
from US $1,687.26 |
||
|
22100A
|
22100A
23271-30180 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)FUEL(FOR INJECTION PUMP TO FUEL FILTER) [07.2005 - 10.2008] 1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
23271-30180 |
US $27.08 |
||
|
22100S
|
22100S
23273-30170
Hose, Fuel(For Injection Pump To Fuel Pipe)
[07.2005 - 10.2008] 1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
23273-30170 |
— | ||
|
23274D
|
23274D
23274-30040
Hose, Fuel, No.3
[07.2005 - 10.2008] 1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
23274-30040 |
— | ||
|
23681A
|
23681A
23681-30010 Seal, Nozzle Holder[08.2006 - 10.2008] 1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR |
23681-30010 |
from US $1.99 |
||
|
23701
|
23701
23701-30060 Pipe Sub-Assy, Injection, No.1INJECTION, NO.1 [08.2006 - 10.2008] 1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR |
23701-30060 |
from US $52.20 |
||
|
23702
|
23702
23702-30060 Pipe Sub-Assy, Injection, No.2INJECTION, NO.2 [08.2006 - 10.2008] 1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR |
23702-30060 |
from US $52.53 |
||
|
23703
|
23703
23703-30060 Pipe Sub-Assy, Injection, No.3INJECTION, NO.3 [08.2006 - 10.2008] 1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR |
23703-30060 |
from US $51.89 |
||
|
23704
|
23704
23704-39055 Pipe Sub-Assy, Injection, No.4INJECTION, NO.4 [08.2006 - 01.2008] 1KDFTV..KUN26;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR *163 OR *184 |
23704-39055 |
from US $58.77 |
||
|
23741
|
23741
23741-30010 Clamp, Injection Pipe, No.1[08.2006 - 10.2008] 1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR |
23741-30010 |
US $5.38 |
||
|
23742
|
23742
23742-27010 Clamp, Injection Pipe, No.2[08.2006 - 10.2008] 1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR NO.1 |
23742-27010 |
from US $9.71 |
||
|
23742
|
23742
23742-30010 Clamp, Injection Pipe, No.2INJECTION PIPE, NO.2 [08.2006 - 10.2008] 1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR NO.2 |
23742-30010 |
US $16.31 |
||
|
23742A
|
23742A
23742-30020 Clamp, Injection Pipe, No.3INJECTION PIPE, NO.3 [08.2006 - 10.2008] 1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR NO.2 |
23742-30020 |
US $16.31 |
||
|
23742A
|
23742A
23742-58020 Clamp, Injection Pipe, No.2[08.2006 - 10.2008] 1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR NO.1 |
23742-58020 |
from US $13.34 |
||
|
23743
|
23743
23743-30011 Clamp, Injection Pipe, No.3[08.2006 - 10.2008] 1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR |
23743-30011 |
from US $4.70 |
||
|
23744
|
23744
23743-30011 Clamp, Injection Pipe, No.3[08.2006 - 10.2008] 1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR |
23743-30011 |
from US $4.70 |
||
|
23804C
|
23804C
23804-30050 Pipe Sub-Assy, Fuel InletFUEL INLET [08.2006 - 10.2008] 1KDFTV..KUN26..4FC,5F;2KDFTV..KUN15..DLX..HDCR;2KDFTV..KUN25..THDCB,THSCB,XTR |
23804-30050 |
from US $33.56 |
||
|
23810A
|
23810A
23810-30100 Rail Assy, CommonCOMMON [10.2006 -] 1KDFTV..KUN26..4FC |
23810-30100 |
from US $746.48 |
||
|
90466T0041
|
90466T0041
90466-T0041
Clip(For Fuel Vapor Feed Hose, No.2)
|
90466-T0041 |
— | ||
|
90466T0045
|
90466T0045
90466-T0045
Clip(For Water By-Pass Hose No.2)
|
90466-T0045 |
— | ||
| replacement | |||||
|
90466T0045
|
90466T0045
90466-T0023
Clip(For Water By-Pass Hose No.2)
|
90466-T0023 |
— | ||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.66 |
||
|
9011606173
|
9011606173
90116-06173 BOLT STUD |
90116-06173 |
US $1.51 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.52 |
||
|
9025313008
|
9025313008
90253-13008 Pin, Ring(For Crankshaft Bearing Cap Set) |
90253-13008 |
US $2.04 |
||
|
9030149003
|
9030149003
90301-49003 Gasket, Injection Pump |
90301-49003 |
from US $2.20 |
||
|
9155281060
|
9155281060
91552-81060 Bolt, No.3(For Alternator) |
91552-81060 |
from US $1.31 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
