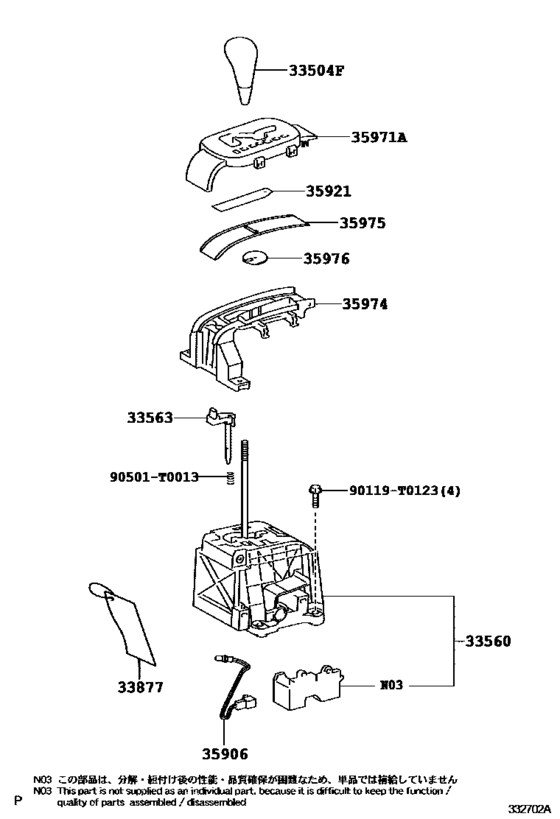

Shift Lever & Retainer ([07.2005 - ] (0507- )4FC,5FC) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2006 - 2008
- Sales region
- Europe
- Frame
- KUN26
- grade
- SR
- ENGINE
- 1KDFTV
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 10.2006
- To
- 10.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-0K010-B0
Knob Sub-Assy, Shift Lever
[07.2005 - 10.2008] KUN15,26..4FC DK.GRAY,TRIM1# |
33504-0K010-B0 |
— | ||
|
33560
|
33560
33560-0K020
Unit Assy, Shift Lock Control
[07.2005 - 10.2008] KUN15,26..LHD..4FC |
33560-0K020 |
— | ||
|
33563
|
33563
33563-0K020
Button, Shift Lock Release
[07.2005 - 10.2008] KUN15,26..LHD..4FC |
33563-0K020 |
— | ||
|
33877
|
33877
33877-50030 Label, Shift Lock Information, No.1SHIFT LOCK INFORMATION, NO.1 [07.2005 - 10.2008] KUN15,26..4FC |
33877-50030 |
from US $4.95 |
||
|
35906
|
35906
35906-0K010 Wire Sub-Assy, Indicator LampINDICATOR LAMP [07.2005 - 10.2008] KUN15,26..4FC |
35906-0K010 |
US $9.71 |
||
|
35921
|
35921
35921-0K020
Plate, Control Position Indicator
[07.2005 - 10.2008] KUN15,26..LHD..4FC |
35921-0K020 |
— | ||
|
35971A
|
35971A
35971-0K020
Housing, Position Indicator, Upper
[07.2005 - 10.2008] KUN15,26..LHD..4FC |
35971-0K020 |
— | ||
|
35974
|
35974
35974-0K020
Housing, Position Indicator, Lower
[07.2005 - 02.2007] KUN26..LHD..4FC |
35974-0K020 |
— | ||
| replacement | |||||
|
35974
|
35974
35974-0K021
Housing, Position Indicator, Lower
[07.2005 - 02.2007] KUN26..LHD..4FC |
35974-0K021 |
— | ||
|
35974
|
35974
35974-0K021
Housing, Position Indicator, Lower
[03.2007 - 10.2008] KUN26..LHD..4FC |
35974-0K021 |
— | ||
|
35975
|
35975
35975-0K010 Cover, Slide (For Position Indicator)SLIDE (FOR POSITION INDICATOR) [07.2005 - 10.2008] KUN15,26..4FC |
35975-0K010 |
US $10.63 |
||
|
35976
|
35976
35976-0D050
Cover, Slide, No.2 (For Position Indicator)
[08.2006 - 10.2008] KUN15,26..4FC |
35976-0D050 |
— | ||
| replacement | |||||
|
35976
|
35976
35976-0D051 Cover, Slide, No.2 (For Position Indicator)SLIDE, NO.2 (FOR POSITION INDICATOR) [08.2006 - 10.2008] KUN15,26..4FC |
35976-0D051 |
US $7.74 |
||
|
90119T0123
|
90119T0123
90119-T0123
New Genuine Part
|
90119-T0123 |
— | ||
|
90501T0013
|
90501T0013
90501-T0013 Spring, Shift Lock Release |
90501-T0013 |
US $0.61 |
||
