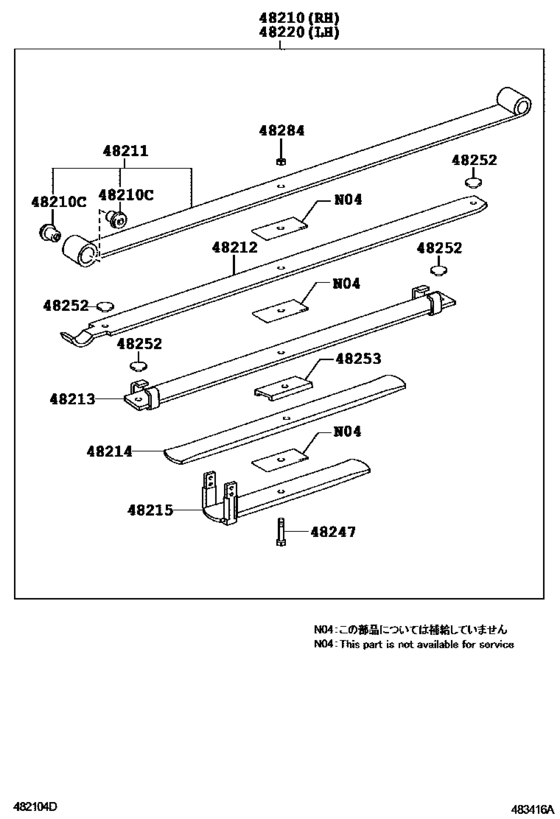

Rear Spring & Shock Absorber ([08.2011 - ] 5-LEAF (1108- )KUN2#,3#,LAN25,TGN36..SCB..SA) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- U.S.A.
- Frame
- KUN26
- grade
- SR
- ENGINE
- 1KDFTV
- DESTINATION
- SA
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-0K240
Spring Assy, Rear Rh
[08.2011 - 12.2015] KUN2#,3#,LAN25,TGN36..SCB..SA 5-LEAF |
48210-0K240 |
— | ||
|
48210C
|
48210C
90389-T0009 Bush(For Rear Spring Leaf)[07.2011 - 12.2015] KUN26..SADCB;KUN16..SR..TH;KUN15..SMT..SR;KUN15,TGN16..DCB..TH;GGN25,35,KUN2#,3#,L AN25,35,TGN26,36..ARL,GCC,SA |
90389-T0009 |
from US $10.93 |
||
|
48211
|
48211
48211-0K240
Leaf, Rear Spring, No.1
[08.2011 - 12.2015] KUN2#,3#,LAN25,TGN36..SCB..SA |
48211-0K240 |
— | ||
|
48212
|
48212
48212-0K240
Leaf, Rear Spring, No.2
[08.2011 - 12.2015] KUN2#,3#,LAN25,TGN36..SCB..SA |
48212-0K240 |
— | ||
|
48213
|
48213
48213-0K240
Leaf, Rear Spring, No.3
[08.2011 - 12.2015] KUN2#,3#,LAN25,TGN36..SCB..SA |
48213-0K240 |
— | ||
|
48214
|
48214
48214-0K240
Leaf, Rear Spring, No.4
[08.2011 - 12.2015] KUN2#,3#,LAN25,TGN36..SCB..SA |
48214-0K240 |
— | ||
|
48215
|
48215
48215-0K240
Leaf, Rear Spring, No.5
[08.2011 - 12.2015] KUN2#,3#,LAN25,TGN36..SCB..SA |
48215-0K240 |
— | ||
|
48220
|
48220
48210-0K240
Spring Assy, Rear Rh
[08.2011 - 12.2015] KUN2#,3#,LAN25,TGN36..SCB..SA 5-LEAF |
48210-0K240 |
— | ||
|
48247
|
48247
48247-0K040
Bolt, Rear Spring, Center
[08.2011 - 12.2015] KUN15,2#,3#,LAN15,25,TGN15,16,36..SCB..SA |
48247-0K040 |
— | ||
|
48252
|
48252
48252-0K040 Silencer, Rear SpringREAR SPRING [08.2011 - 12.2015] KUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA |
48252-0K040 |
US $1.54 |
||
|
48253
|
48253
48253-0K040
Spacer, Rear Spring, No.1
[08.2011 - 12.2015] KUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA |
48253-0K040 |
— | ||
|
48284
|
48284
48284-0K040 Nut, Rear Spring Center BoltREAR SPRING CENTER BOLT [08.2011 - 12.2015] KUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA |
48284-0K040 |
US $1.09 |
