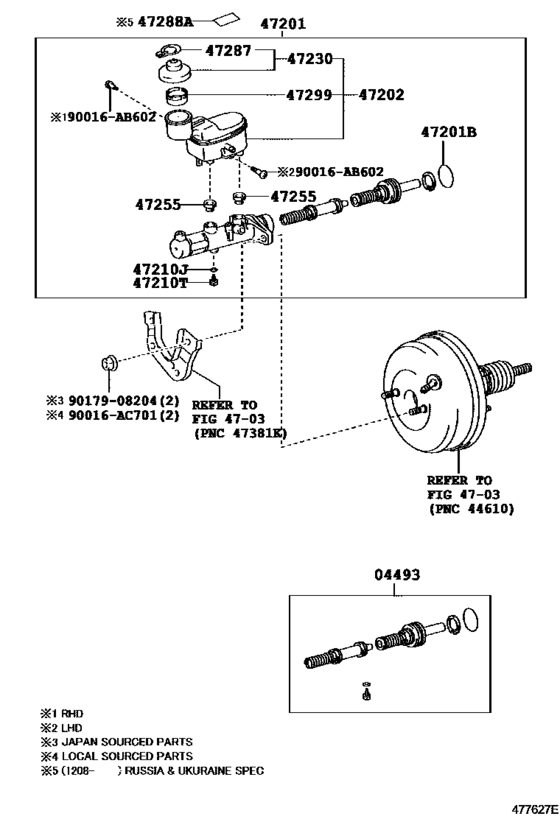

Brake Master Cylinder ([10.2013 - ] (1107- )THDCB,THSCB,XTR ; (1310- )KUN26..D CB..SR ; (1310- )KUN25,35..DCB,S CB) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- Europe
- Frame
- KUN35
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- EUR
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HDCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-0K010 Cylinder Kit, Brake MasterBRAKE MASTER [10.2013 - 10.2014] KUN26..DCB..SR;KUN25,35..DCB,SCB |
04493-0K010 |
from US $59.85 |
||
|
47201
|
47201
47201-09210 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [08.2011 - 10.2013] KUN26..LHD..DCB..5F..SR;KUN25,35..LHD..(DCB,SCB) |
47201-09210 |
US $319.14 |
||
|
47201
|
47201
47201-0K040 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [10.2013 - 10.2014] KUN26..LHD..DCB..5F..SR;KUN25,35..LHD..(DCB,SCB) |
47201-0K040 |
US $226.02 |
||
|
47201
|
47201
47201-0K172
Cylinder Sub-Assy, Brake Master
[10.2013 - 10.2014] KUN35..SCB..SR;KUN25..DCB..IV3;KUN25..LHD..SCB;KUN35..(DCB,SCB)..DLX VSC-WITH |
47201-0K172 |
— | ||
|
47201B
|
47201B
90015-AH002 Ring, O(For Brake Master Cylinder)[10.2013 - 10.2014] KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH |
90015-AH002 |
US $3.58 |
||
|
47201B
|
47201B
90016-AH901
Ring, O(For Brake Master Cylinder)
[10.2013 - 10.2014] KUN26..DCB..SR;KUN25,35..DCB,SCB |
90016-AH901 |
— | ||
|
47202
|
47202
47220-09080
Reservoir Sub-Assy, Brake Master Cylinder
[08.2011 - 10.2013] KUN25,35..DCB,SCB;KUN26..DCB..5F..SR |
47220-09080 |
— | ||
|
47202
|
47202
47220-0K020 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [10.2013 - 10.2014] KUN25,35..DCB,SCB;KUN26..DCB..5F..SR |
47220-0K020 |
US $76.30 |
||
|
47202
|
47202
47220-0K090
Reservoir Sub-Assy, Brake Master Cylinder
[10.2013 - 10.2014] KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH |
47220-0K090 |
— | ||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[10.2013 - 10.2014] KUN26..DCB..SR;KUN25,35..DCB,SCB |
90430-06104 |
from US $1.79 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[10.2013 - 10.2014] KUN26..DCB..SR;KUN25,35..DCB,SCB |
90109-06077 |
from US $2.87 |
||
|
47230
|
47230
47230-0D221 Cap Assy, Brake Master Cylinder Reservoir Filler[08.2015 - 12.2015] KUN2#,35 |
47230-0D221 |
from US $8.46 |
||
|
47230
|
47230
47230-0K010
Cap Assy, Brake Master Cylinder Reservoir Filler
[07.2011 - 02.2015] KUN2#,35 |
47230-0K010 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-0D221 Cap Assy, Brake Master Cylinder Reservoir Filler[07.2011 - 02.2015] KUN2#,35 |
47230-0D221 |
from US $8.46 |
||
|
47230
|
47230
47230-0K011
Cap Assy, Brake Master Cylinder Reservoir Filler
[02.2015 - 08.2015] KUN2#,35 |
47230-0K011 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-0D221 Cap Assy, Brake Master Cylinder Reservoir Filler[02.2015 - 08.2015] KUN2#,35 |
47230-0D221 |
from US $8.46 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[07.2011 - 10.2014] KUN26..DCB..SR;KUN25,35..DCB,SCB |
47255-16010 |
from US $6.45 |
||
|
47255
|
47255
90016-AT001 Grommet, Master Cylinder ReservoirMASTER CYLINDER RESERVOIR [10.2013 - 10.2014] KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH |
90016-AT001 |
US $4.80 |
||
|
47287
|
47287
47287-02360
Label, Brake Fluid Information
[08.2015 - 12.2015] KUN2#,35 |
47287-02360 |
— | ||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[07.2011 - 08.2015] KUN2#,35 |
47287-20010 |
US $2.33 |
||
|
47299
|
47299
47299-0K010
Strainer, Brake Master Cylinder Reservoir
[07.2011 - 12.2015] KUN2#,35 |
47299-0K010 |
— | ||
|
90016AB602
|
90016AB602
90016-AB602
New Genuine Part
|
90016-AB602 |
— | ||
|
90016AC701
|
90016AC701
90016-AC701
New Genuine Part
|
90016-AC701 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
