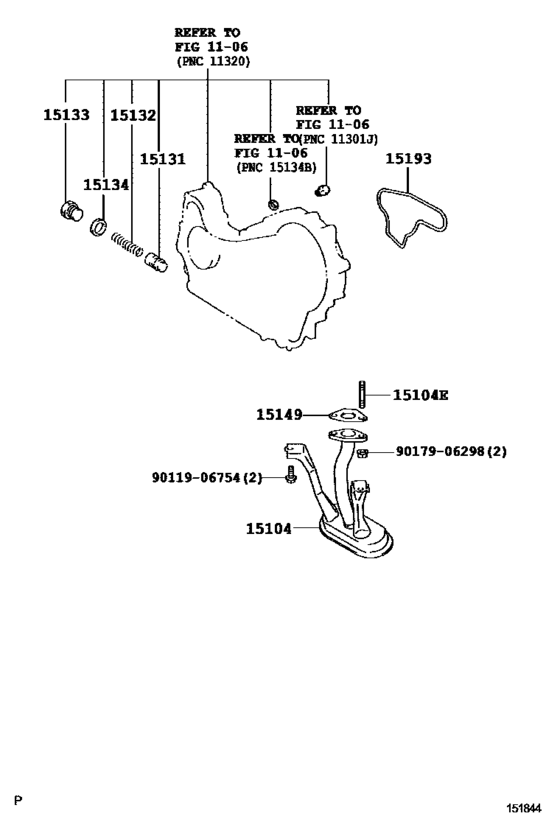

Engine Oil Pump ([07.2011 - ] (1107- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- Europe
- Frame
- KUN35
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- EUR
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HDCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15104
|
15104
15104-30050
Strainer Sub-Assy, Oil
[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
15104-30050 |
— | ||
|
15104E
|
15104E
90116-06140 Bolt, Stud(For Oil Strainer)[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
90116-06140 |
US $1.79 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
15131-46040 |
from US $2.94 |
||
|
15132
|
15132
15132-17010 Spring, Oil Pump Relief Valve[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
15132-17010 |
from US $1.23 |
||
|
15133
|
15133
15133-17010 Plug, Oil Pump Relief Valve[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
15133-17010 |
from US $1.87 |
||
|
15134
|
15134
15134-67020 Gasket, Oil Pump Relief Valve[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
15134-67020 |
from US $1.70 |
||
|
15149
|
15149
15149-67010 Gasket, Oil Strainer Flange[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
15149-67010 |
from US $2.09 |
||
|
15193
|
15193
15193-67011 Gasket, Oil Pump[07.2011 - 12.2015] 1KDFTV,2KDFTV..KUN2#,35 |
15193-67011 |
from US $3.04 |
||
|
9011906754
|
9011906754
90119-06754 BOLT WWASHER |
90119-06754 |
US $1.61 |
||
|
9017906298
|
9017906298
90179-06298 NUT |
90179-06298 |
US $1.61 |
