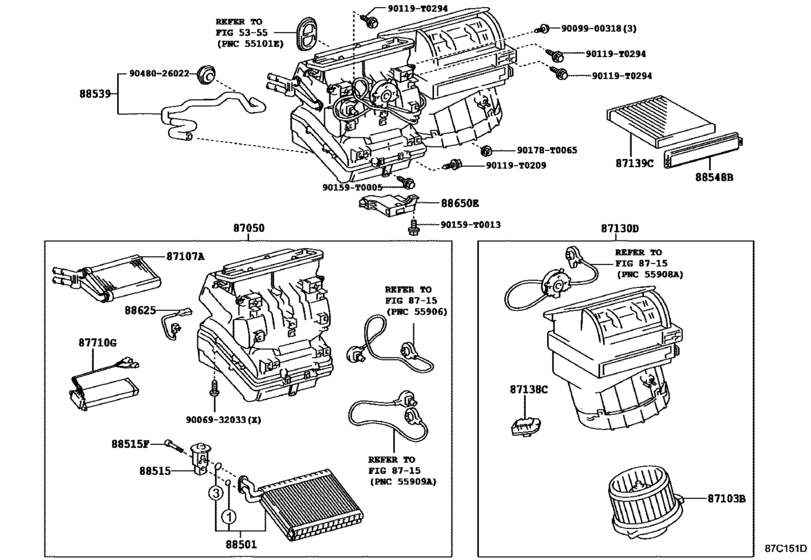

Heating & Air Conditioning - Cooler Unit ([08.2011 - ] MANUAL AIR CONDITIONER (1108- )KUN26..LHD..DLX ; (1108- )KUN25,35 ..LHD..DCB,SCB) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- Europe
- Frame
- KUN35
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- EUR
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HDCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-0K262
Radiator Assy, Air Conditioner
[08.2011 - 12.2015] KUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX |
87050-0K262 |
— | ||
|
87050
|
87050
87050-0K282
Radiator Assy, Air Conditioner
[08.2011 - 12.2015] KUN25..LHD..DCB..SR; KUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX AIR CONDITIONER-SINGLE AIR CONDITIONER |
87050-0K282 |
— | ||
|
87103B
|
87103B
87103-02470 Motor Sub-Assy, Blower W/fanBLOWER W/FAN [08.2011 - 12.2015] KUN2#,35..LHD..(DCB,SCB) |
87103-02470 |
US $310.05 |
||
|
87107A
|
87107A
87107-0K050
Unit Sub-Assy, Heater Radiator
[08.2011 - 12.2015] KUN26..DLX;KUN25..RHD..SCB;KUN25..RHD..DCB..SR;KUN25,35..LHD..(DCB,SCB) |
87107-0K050 |
— | ||
|
87130D
|
87130D
87130-0K151
Blower Assy
[08.2011 - 12.2015] KUN26..LHD..DLX;KUN25,35..LHD..(DCB,SCB) |
87130-0K151 |
— | ||
|
87138C
|
87138C
87138-0K110 Resistor, BlowerBLOWER [07.2011 - 12.2015] KUN25,35..LHD;KUN26..LHD..DLX |
87138-0K110 |
from US $15.38 |
||
|
87139C
|
87139C
87139-50100 Clean Air Filter (Charcoal type)[07.2011 - 12.2015] KUN26,35;KUN25..LHD;KUN25..RHD..DCB..SR;KUN25..RHD..(SCB,XTR) *DPF |
87139-50100 |
from US $67.20 |
||
|
87139C
|
87139C
87139-52020 Filter, Clean Air[07.2011 - 12.2015] KUN26,35;KUN25..LHD;KUN25..RHD..DCB..SR;KUN25..RHD..(SCB,XTR) STANDARD |
87139-52020 |
from US $33.60 |
||
|
87710G
|
87710G
87710-0K091
Quick Heater Assy
[08.2011 - 12.2015] KUN2#,35..LHD..(DCB,SCB) |
87710-0K091 |
— | ||
|
88501
|
88501
88501-12510
Evaporator Sub-Assy, Cooler, No.1
[08.2011 - 08.2015] KUN26..RHD;KUN25..DCB..SR;KUN26..LHD..DCB..SR;KUN25..RHD..SCB..DLX; KUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX AIR CONDITIONER-SINGLE AIR CONDITIONER; KUN35..DCB..SR AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
88501-12510 |
— | ||
|
88515
|
88515
88515-0K190
Valve, Cooler Expansion
[08.2011 - 12.2015] KUN25..DCB..SR;KUN26..RHD..DLX;KUN25..RHD..SCB..DLX; KUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX AIR CONDITIONER-SINGLE AIR CONDITIONER |
88515-0K190 |
— | ||
|
88515F
|
88515F
90099-04597
Bolt(For Cooler Expansion Valve)
[08.2011 - 12.2015] KUN26..RHD;KUN25..DCB..SR;KUN26..LHD..DCB..SR;KUN25..RHD..SCB..DLX; KUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX AIR CONDITIONER-SINGLE AIR CONDITIONER; KUN35..DCB..SR AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
90099-04597 |
— | ||
|
88539
|
88539
88539-0K030
Hose, Cooler Unit Drain, No.1
[08.2011 - 12.2015] KUN2#,35..LHD..(DCB,SCB) |
88539-0K030 |
— | ||
|
88548B
|
88548B
88548-0K020 Case, Air FilterAIR FILTER [07.2011 - 12.2015] KUN2#,35..LHD |
88548-0K020 |
US $10.92 |
||
|
88625
|
88625
88625-02110 Thermistor, Cooler, No.1COOLER, NO.1 [08.2011 - 12.2015] KUN26..RHD;KUN25..DCB..SR;KUN26..LHD..DCB..SR;KUN25..RHD..SCB..DLX; KUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX AIR CONDITIONER-SINGLE AIR CONDITIONER; KUN35..DCB..SR AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE |
88625-02110 |
from US $9.17 |
||
|
88650E
|
88650E
88650-0K130
Amplifier Assy, Air Conditioner, No.1
[08.2011 - 12.2015] KUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX |
88650-0K130 |
— | ||
|
88650E
|
88650E
88650-0K140
Amplifier Assy, Air Conditioner, No.1
[08.2011 - 12.2015] KUN25..DCB..SR;KUN2#..RHD..(DCB,SCB)..DLX; KUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX AIR CONDITIONER-SINGLE AIR CONDITIONER |
88650-0K140 |
— | ||
|
90119T0209
|
90119T0209
90119-T0209
BOLT WWASHER
|
90119-T0209 |
— | ||
|
90119T0294
|
90119T0294
90119-T0294 BOLT WWASHER |
90119-T0294 |
US $0.73 |
||
|
90159T0005
|
90159T0005
90159-T0005 New Genuine Part |
90159-T0005 |
US $0.87 |
||
|
90159T0013
|
90159T0013
90159-T0013
New Genuine Part
|
90159-T0013 |
— | ||
|
90178T0065
|
90178T0065
90178-T0065
New Genuine Part
|
90178-T0065 |
— | ||
|
9006932033
|
9006932033
90069-32033
New Genuine Part
|
90069-32033 |
— | ||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
